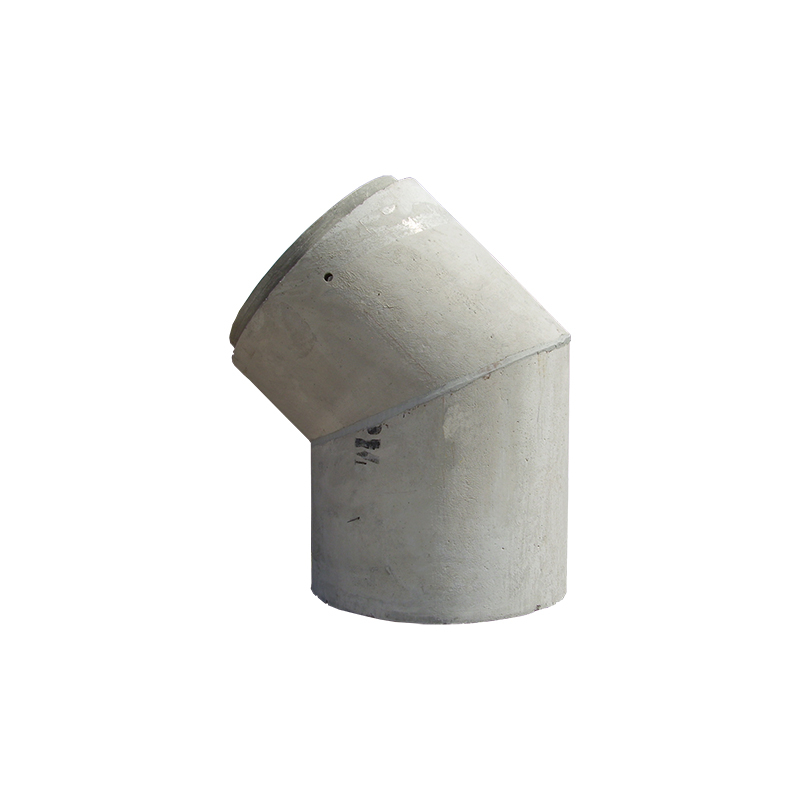

Marshalls Concrete Pipe Bend 11.25dg - 750mm

Code:
P75011BND
Free UK Delivery

This item is out of stock and not available to purchase.

Marshalls CPM precast concrete bends are manufactured by cutting pipes into two or three segments and joining them together at the required angle using an epoxy resin. Bends may not necessarily have the same load-bearing capacity as the pipes with which they are to be laid. It ...Read More

Create a wishlist

"Great service"

Ludek Lachovsky

Description

Marshalls CPM precast concrete bends are manufactured by cutting pipes into two or three segments and joining them together at the required angle using an epoxy resin.
Bends may not necessarily have the same load-bearing capacity as the pipes with which they are to be laid. It is therefore recommended that they should be surrounded by suitably designed in-situ concrete where significant load conditions have to be met, or where anchorage of the pipeline is required. Bends have the same manufactured internal diameter and wall thickness as the pipes with which they are to be laid.

Marshalls Concrete Pipe Bend Specifications

DN: 750mm
Angle: 11.25dg
Total Effective Length: 1100mm

Please note: The use of CPM lubricant is strongly recommended with the CPM integral jointed pipe system. Non-compliance may result in installation problems for which CPM can accept no responsibility. If we are called to site for pipe jointing issues and it is found that CPM lubricant has not been used, then there will be a charge of £150 to cover CPM costs

Details

Material Concrete Product Type Bend Diameter 750mm
