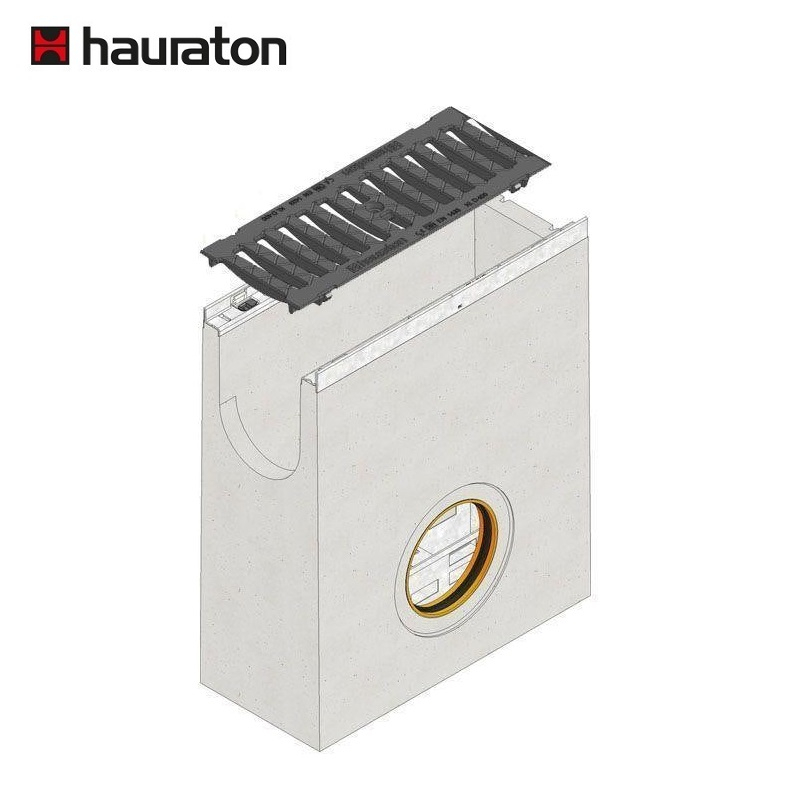

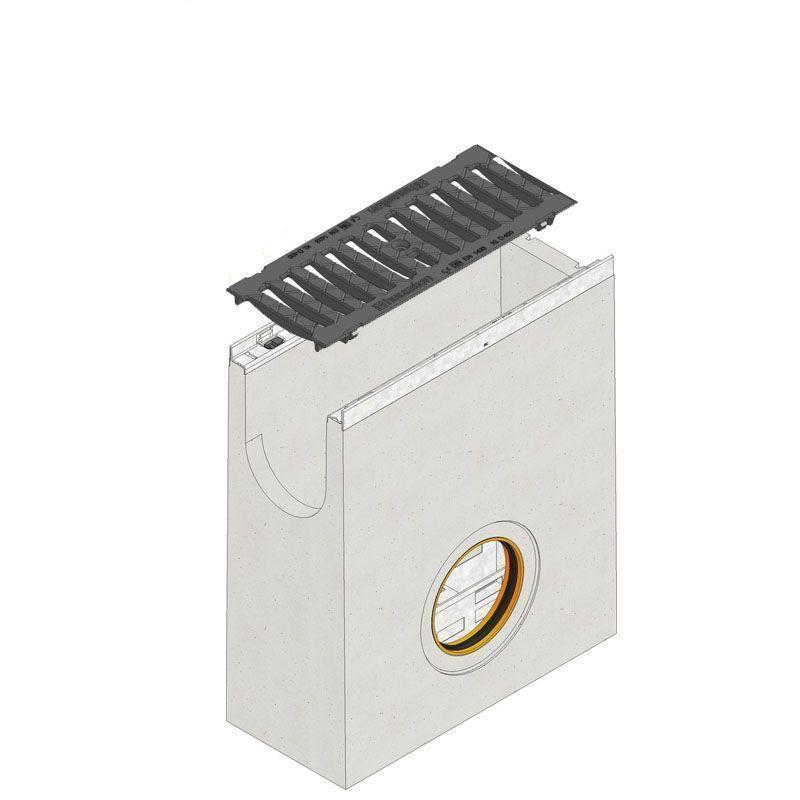

Hauraton Faserfix KS150 Sump Unit & D400 Ductile Iron Slotted Grate

Code:
11052/11063
Brand:
Free UK Delivery

This item is out of stock and not available to purchase.

This sump unit is ideal for completing the installation of a Hauraton FASERFIX KS150 channel drain system. The channel drainage system integrates fibre-reinforced concrete channel bases that can be used for up to F900 loading depending on the grating, which is available as eit...Read More

Create a wishlist

"A good choice of drainage items at…"

Richard Bett

Description

This sump unit is ideal for completing the installation of a Hauraton FASERFIX KS150 channel drain system. The channel drainage system integrates fibre-reinforced concrete channel bases that can be used for up to F900 loading depending on the grating, which is available as either F900, E600 or D400 grates.

Suited to applications in school yards, railway platforms, sewage plants, pedestrian zones, industrial buildings and more, the FASERFIX channel drain system features galvanised steel angle housing for enhanced durability and a boltless quick system for security.

Features & Benefits: Hauraton Faserfix KS150 Sump Unit & D400 Ductile Iron Slotted Grate

  • For use with a Hauraton FASERFIX KS150 channel drain system
  • Ductile iron slotted grate
  • Fibre-reinforced concrete
  • D400 weight class
  • Manufactured to EN 1433

Dimensions

Length 500mm Depth 600mm Width 210mm

Details

Material Concrete Product Type Channel Base and Grate Range Faserfix Load Rating D400
