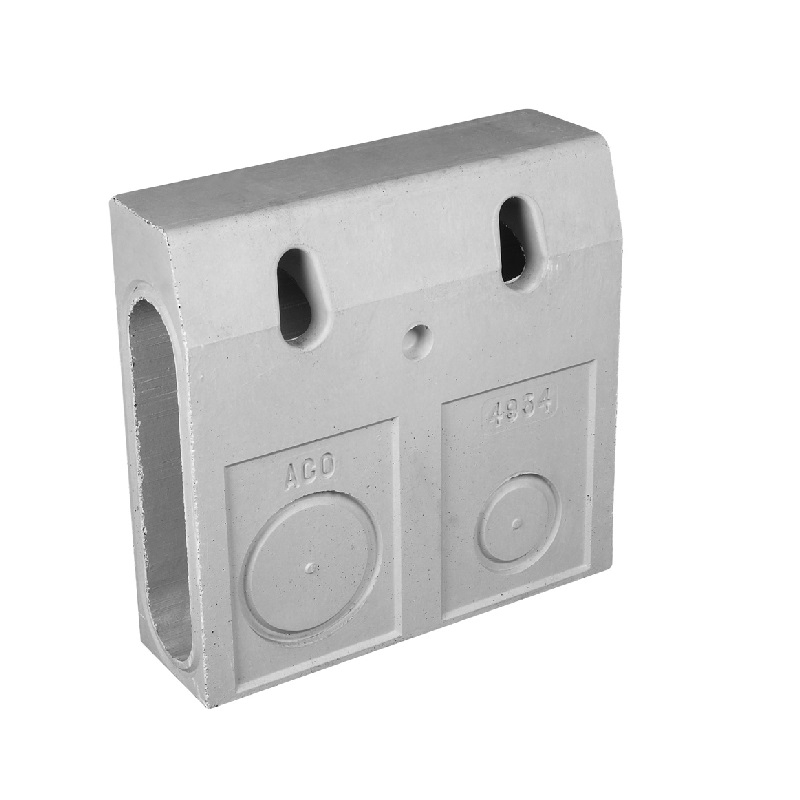

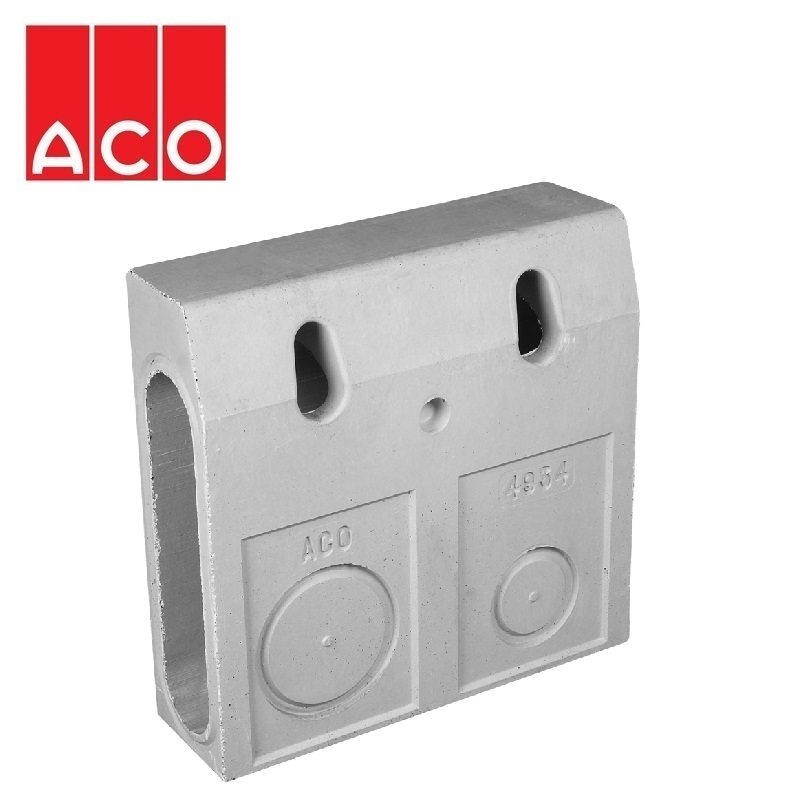

ACO KerbDrain HB405 Half Battered 25m-11m Internal Mitre Unit - 500mm/503mm

Code:
4354
Brand:
ACO

This HB405 Half Battered External Mitre Unit is an excellent example of ACO's KerbDrain® range of two-in-one kerb and drainage solutions. Expertly designed to beat the problems set by surface water drainage, KerbDrain® offers sustainability, durability and versatility with Vie...Read More

View full product details
View questions about this product
£87.50 Incl. VAT
Oops! Please select from the options
Est. Delivery: 3-5 Working Days
Shipping costs displayed in basket.
We can let you know when this product is back in stock.

This product is proving to be very popular and has unfortunately sold out.

Enter your email below and we'll notify you as soon as this product is back in stock:

For delivery Tuesday, Apr 23rd - order in:
days hrs mins secs
Subject to stock availability, if products on a 24 hours service are ordered alongside products NOT on a 24 hours service, this may delay your whole order.
View Transport Policy

All delivery charges are included in the final shopping basket and are dependent on the products Scottish Highlands & the Islands where additional shipping charges will apply.

Please note that not all products will incur an additional delivery charge to the Scottish Highlands & the Islands – this is based on the costs from the manufacturer, distributor or courier providing shipping on our behalf. If your delivery address is in the Scottish Highlands and Islands, a member of our helpline team will contact you prior to processing your order should an additional delivery charge apply.

While we make every effort to ensure orders are delivered by the date required, we cannot guarantee availability from the manufacturer or the manufacturer's delivery schedules.

Any variation to web delivery date given will be advised to you by email or telephone. If we are unable to make delivery because access is not possible, we reserve the right to make a failed delivery charge.

View full product details
View questions about this product
Create a wishlist

"Excellent service"

Marc Rice
Description Specification Downloads Q&A

Description

This HB405 Half Battered External Mitre Unit is an excellent example of ACO's KerbDrain® range of two-in-one kerb and drainage solutions. Expertly designed to beat the problems set by surface water drainage, KerbDrain® offers sustainability, durability and versatility with Vienite structures.

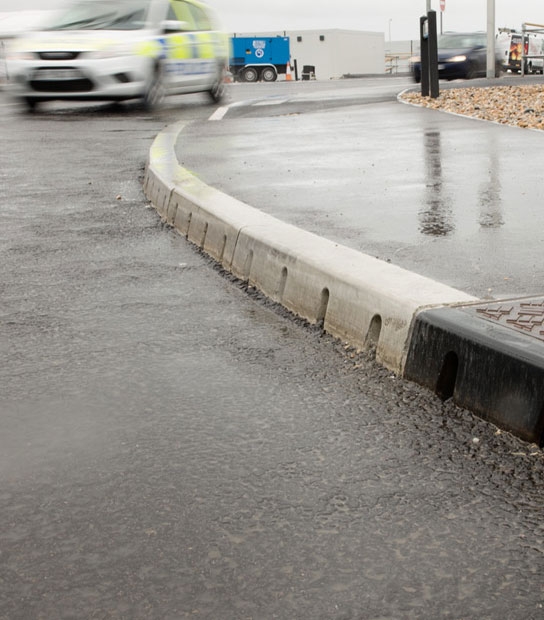

Part of the 405 range, this unit provides drainage for curved kerbs often found in roundabouts and sweeping turns. The range features profiles that match a standard HB1 kerb stone and makes a fantastic solution for draining large catchment areas, bridging the hydraulic gap between the 305 and 480 half battered ranges while elevating drainage designs.

Features & Benefits: ACO KerbDrain HB405 Half Battered 25m-11m Internal Mitre Unit - 500mm/503mm

  • 50% higher impact resistance than OPC kerb units
  • Made from sustainable Vienite
  • Certified for all highways applications and SUDS compliant
  • Safe manual and mechanical handling
  • High daily installation rate
  • Suited to C250 and D400 loading
  • 500mm/503mm length x 150mm width x 405mm depth and 380mm invert
  • 32.90kgs weight

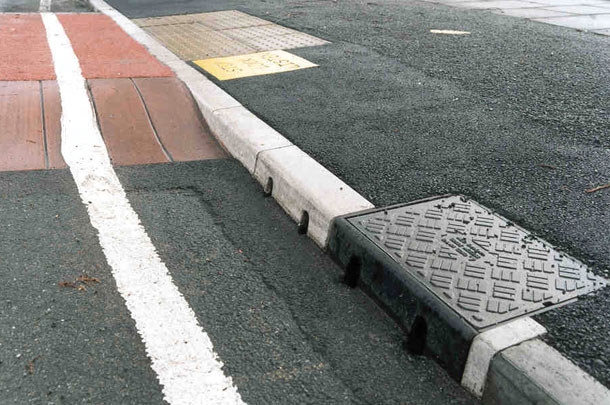

A backbone of water management projects, KerbDrain® is ideal for many applications and conditions, including major and minor highways, car parks, and commercial and urban landscaping. KerbDrain® provides a 50% higher impact resistance than standard OPC kerb units, a selling point for high-traffic, long-term urban projects.

KerbDrain® is SUDS compliant and certified for all highway applications, making improvements from installation to the end of their long service life. The impact resistance and longevity originate from award-winning one-piece designs, maximising hydraulic performance and reducing failure points. With safe manual and mechanical handling, installations are easy and watertight.

Dimensions

Length 500mm/503mm Depth 405mm Width 150mm

Details

Material Vienite Product Type Kerb Unit Range KerbDrain Load Rating D400
