ACO Eyeleds Channel with 2 Eyeled Gratings and White LED

Product Code:
Est. Delivery: 3-5 Working Days
Shipping costs displayed in basket.
We can let you know when this product is back in stock.

This product is proving to be very popular and has unfortunately sold out.

Enter your email below and we'll notify you as soon as this product is back in stock:

Subject to stock availability, if products on a 24 hours service are ordered alongside products NOT on a 24 hours service, this may delay your whole order.

View Transport Policy

All delivery charges are included in the final shopping basket and are dependent on the products Scottish Highlands & the Islands where additional shipping charges will apply.

Please note that not all products will incur an additional delivery charge to the Scottish Highlands & the Islands – this is based on the costs from the manufacturer, distributor or courier providing shipping on our behalf. If your delivery address is in the Scottish Highlands and Islands, a member of our helpline team will contact you prior to processing your order should an additional delivery charge apply.

While we make every effort to ensure orders are delivered by the date required, we cannot guarantee availability from the manufacturer or the manufacturer's delivery schedules.

Any variation to web delivery date given will be advised to you by email or telephone. If we are unable to make delivery because access is not possible, we reserve the right to make a failed delivery charge.

£453.28 Incl. VAT
Oops! Please select from the options

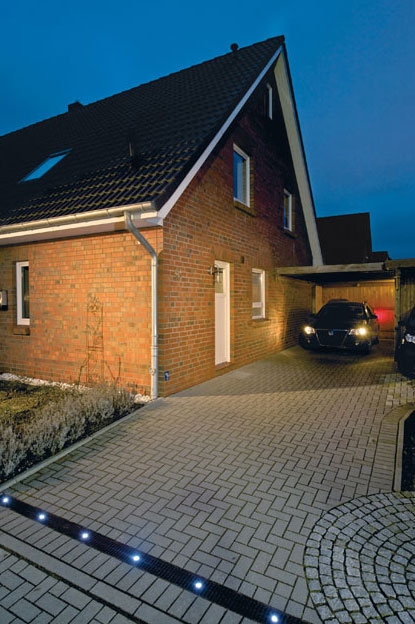

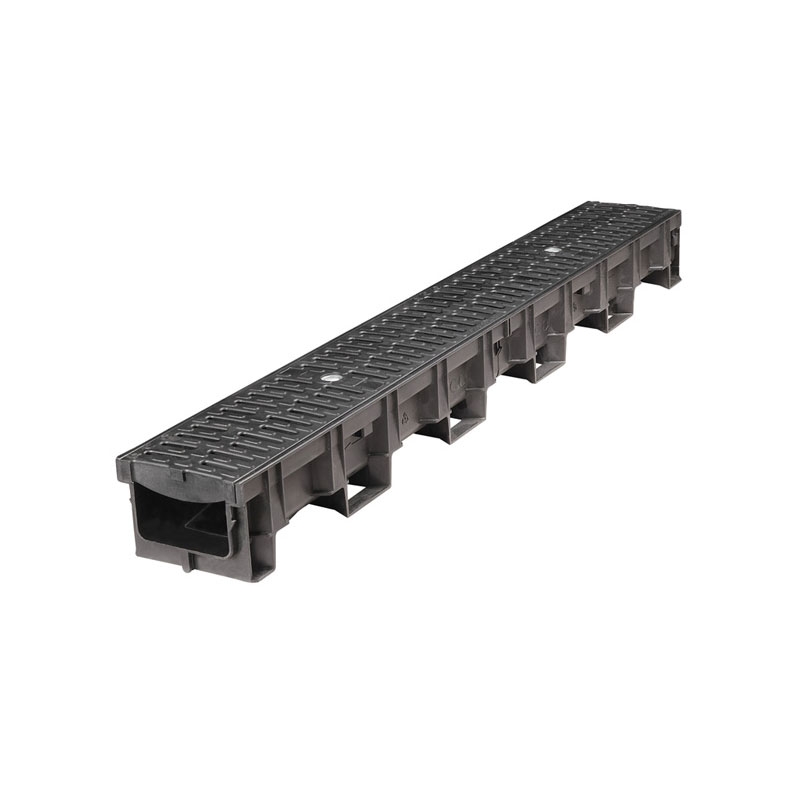

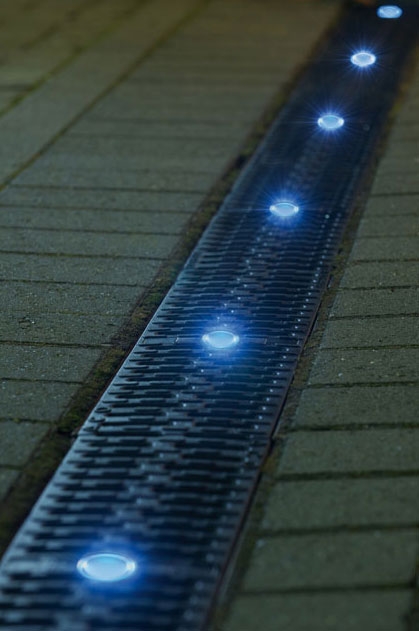

For use in pedestrian and light vehicle applications such as patios, drives, and private parking areas, the ACO Eyeled channel assembly consists of a 1m drainage channel and two 500mm ACO Eyeled gratings fitted with an LED light, which is available in white or blue.

Alternatively, a standard 500mm grating can be fitted to extend the gap between the lights.

The high performance LED lights are sealed against the ingress of water and offer long working life of approx 100,000 hours. During this time the intensity of the light remains constant. The nominal voltage of the system is 12V DC and each LED light is rated at 0.3W. The ACO Eyeled grating comes complete with a cable tail and M12 watertight connection, and meets IP 67 protection class.

Channels and gratings are manufactured from high strength black recycled polypropylene, which is a lightweight, robust material. ACO Eyeleds are quick and easy to install, and channel assemblies can be simply clipped together to extend the run of the channel lighting system.


Length: 1000mm
Width: 138mm
Depth: 100mm
Invert: 75mm


Length 1000mm Width 138mm


Material Plastic Depth 100mm Weight Class B125
