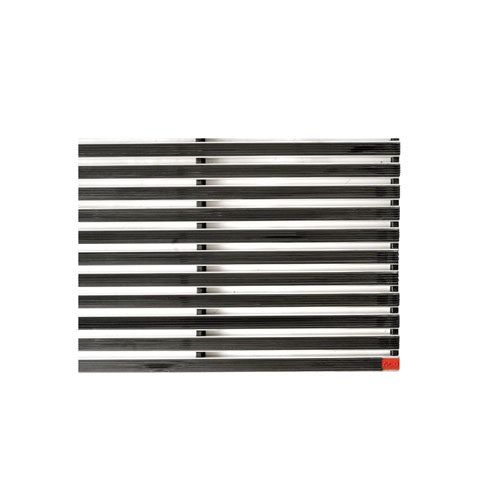

ACO DrainMat Threshold Door Drainage Black Rubber and Aluminium Mat eliminates the risk of water ponding at house entrances, the high quality matwell assembly bases all come with a 110mm diameter vertical outlet for water drainage. The system gives the appeal of a traditional matwell and is available in a choice of four different mat surfaces: robust galvanised steel mesh, tough aluminium and rubber, and two colours of carpet with aluminium. ACO DrainMat comes in two types of bases; polymer or polypropylene. The polymer concrete base is available in three sizes and the polypropylene in one size.

ACO DrainMat Features

• Four mat styles available; galvanised steel mesh, anthracite carpet and aluminium, light grey carpet and aluminium and black rubber and aluminium
• Mats can be removed for maintenance and cleaning
• DrainMat grating dislodges stubborn dirt from footwear easily
• Suitable for use with a wide variety of external surface finishes
• Unobtrusive galvanised steel protective edge rail (polymer concrete base only)
• Tough polymer concrete base available in three sizes. Polypropylene base available in one size
• Base outlet for connection to 110mm PVC-U pipework
• Compliant with Part M of the Building Regulations for England and Wales and Section 4 of the Scottish Building Standards

Specifications

Material: Rubber and Aluminium
Loading: Pedestrian (A15)
Finish: Black

Dimensions

Length: 600mm
Width: 400mm
Depth: 20mm
Weight: 3.5kg

Length: 750mm
Width: 500mm
Depth: 20mm
Weight: 4.7kg

Length: 1000mm
Width: 500mm
Depth: 20mm
Weight: 6.3kg
