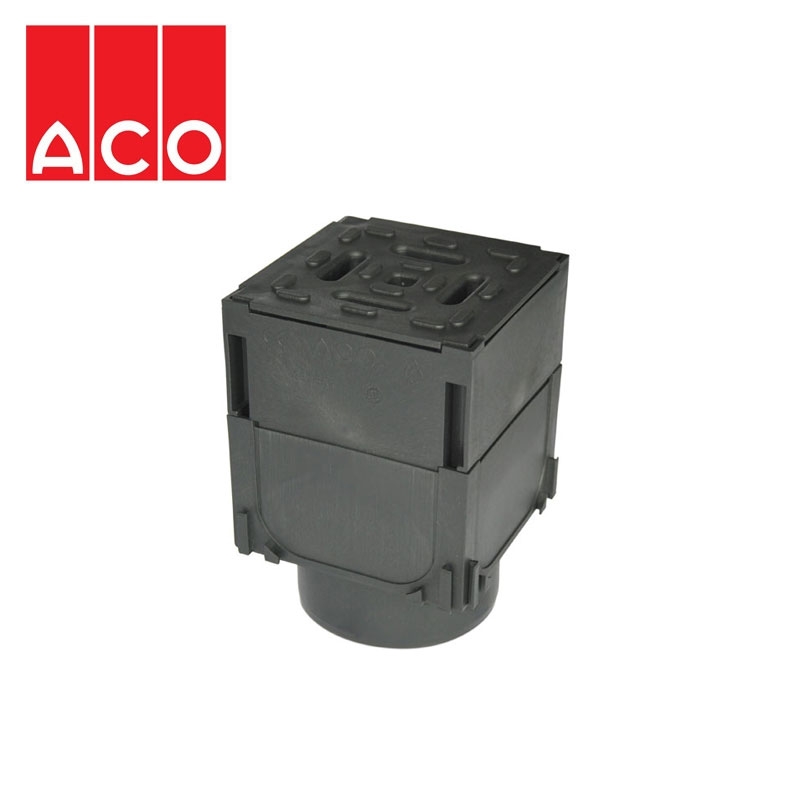

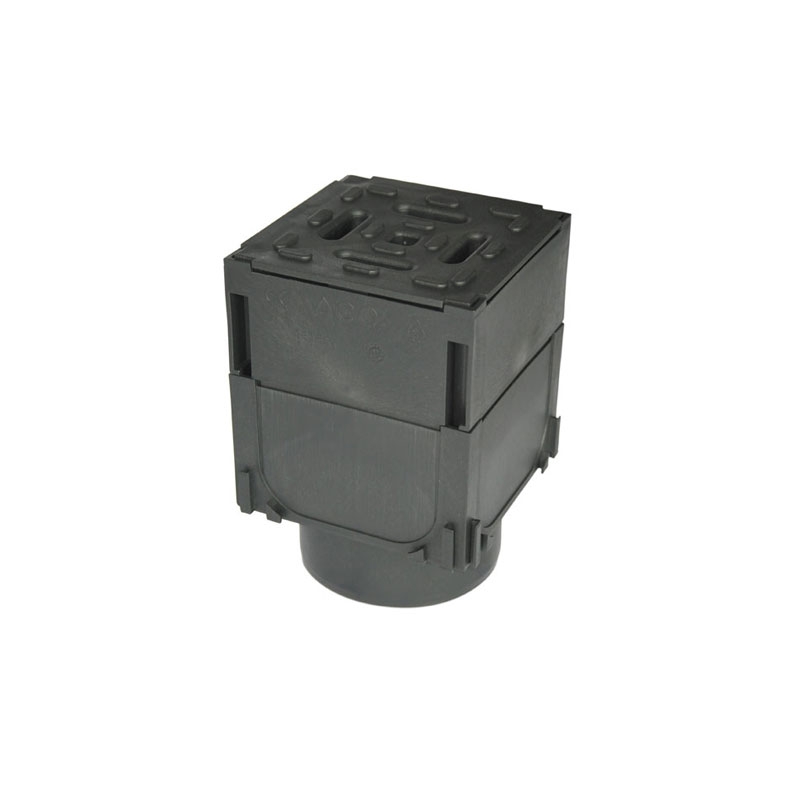

ACO Brickslot Hexdrain Access and Corner Unit with Outlet

Product Code:
Est. Delivery: 1-2 Working Days
Shipping costs displayed in basket.
We can let you know when this product is back in stock.

This product is proving to be very popular and has unfortunately sold out.

Enter your email below and we'll notify you as soon as this product is back in stock:

Subject to stock availability, if products on a 24 hours service are ordered alongside products NOT on a 24 hours service, this may delay your whole order.

View Transport Policy

All delivery charges are included in the final shopping basket and are dependent on the products Scottish Highlands & the Islands where additional shipping charges will apply.

Please note that not all products will incur an additional delivery charge to the Scottish Highlands & the Islands – this is based on the costs from the manufacturer, distributor or courier providing shipping on our behalf. If your delivery address is in the Scottish Highlands and Islands, a member of our helpline team will contact you prior to processing your order should an additional delivery charge apply.

While we make every effort to ensure orders are delivered by the date required, we cannot guarantee availability from the manufacturer or the manufacturer's delivery schedules.

Any variation to web delivery date given will be advised to you by email or telephone. If we are unable to make delivery because access is not possible, we reserve the right to make a failed delivery charge.

£27.00 Incl. VAT
Oops! Please select from the options


The ACO HexDrain Brickslot provides a discreet slot drainage system for domestic up to 60mm block paving installation and threshold drainage. This ACO product acts as both an access unit and a corner unit, which means it can be placed in the corner of the channel drainage, making it subtle and unobtrusive.

The ACO HexDrain products are quick and easy to install, and are suitable for patios and areas where drainage is required but there is a desire for it to have minimal impact on the visual aspects of the area.

Manufactured using 100% recycled polypropylene, the highly successful 1m ACO HexDrain channel has been combined with a new offset slot cover specifically designed for slab and block paving, to create ACO HexDrain Brickslot. A range of innovative features and accessories, such as the corner unit for maintenance access, ensures the system makes installing domestic drainage easier than ever.

The system is ideal for a wide range of domestic and light traffic applications and is CE marked and fully certified to Load Class A15 BS EN 1433:2002.


Length : 125mm
Width : 125mm
Depth : 193mm
Invert : 143mm
Weight : 0.4kgs
Vertical Outlet : 110mm


Length 125mm Width 125mm


Material Plastic Depth 193mm Weight Class A15

Questions & Answers


Is one of these sufficient for access e.g. to get a hose in to clean/clear debris on a 6 meter straight run of brickslot hexdrain channels?


Yes this would be fine.


i will be using the ACO Brickslot Hexdrain Access and Corner Unit with Outlet to connect two lengths of drainage, but i will also have a down pipe from the guttering running into the same point what is the solution?


Downpipe to Channel Drain Connector - 68mm round: 27120

Downpipe to Channel Drain Connector - 65mm square: 27123
