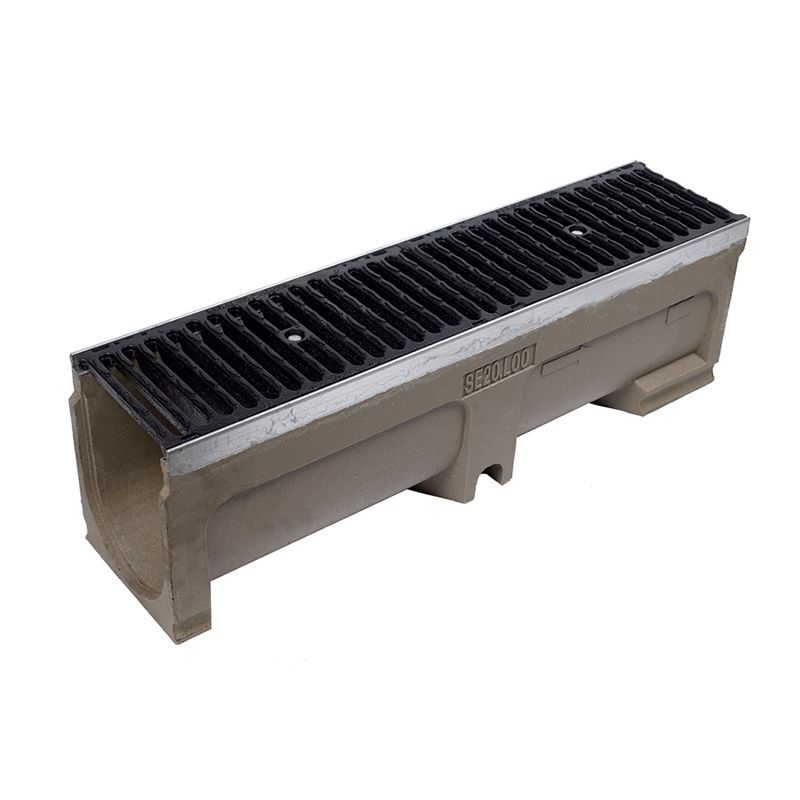

Wide Channel Drain Iron Grating 1000mm x 240mm x 345mm - D400

Code:
CD D20-L20G-21
Free UK Delivery

This item is out of stock and not available to purchase.

External Dimensions: 1000 (L) x 240 (W) x 345 (H) Clear Opening: 1000 (L) x 200 (W) x 330 (H) Channel & Grate: Polymer concrete with galvanised steel edge rails. Knockout section for vertical outlet (optional). Locking bar slots. 2 x 500mm ductile iron slotted grates. Lock...Read More

Create a wishlist

"Excellent service"

lainey

Description

External Dimensions: 1000 (L) x 240 (W) x 345 (H)
Clear Opening: 1000 (L) x 200 (W) x 330 (H)
Channel & Grate: Polymer concrete with galvanised steel edge rails. Knockout section for vertical outlet (optional). Locking bar slots. 2 x 500mm ductile iron slotted grates.
Locking: Locking bars & bolts fitted.
Pre-Sloped Option: Not available. Constant depth only.

Application

  • Building Entrance
  • Car Parks
  • Schools,Colleges and Universities
  • Pedestrian Precincts
  • Private Housing Estates
  • Shared Driveways
  • Communal Parking Areas
  • Railway Platforms

Dimensions

Length 1m Depth 345mm Width 240mm

Details

Material Concrete Weight Class D400
