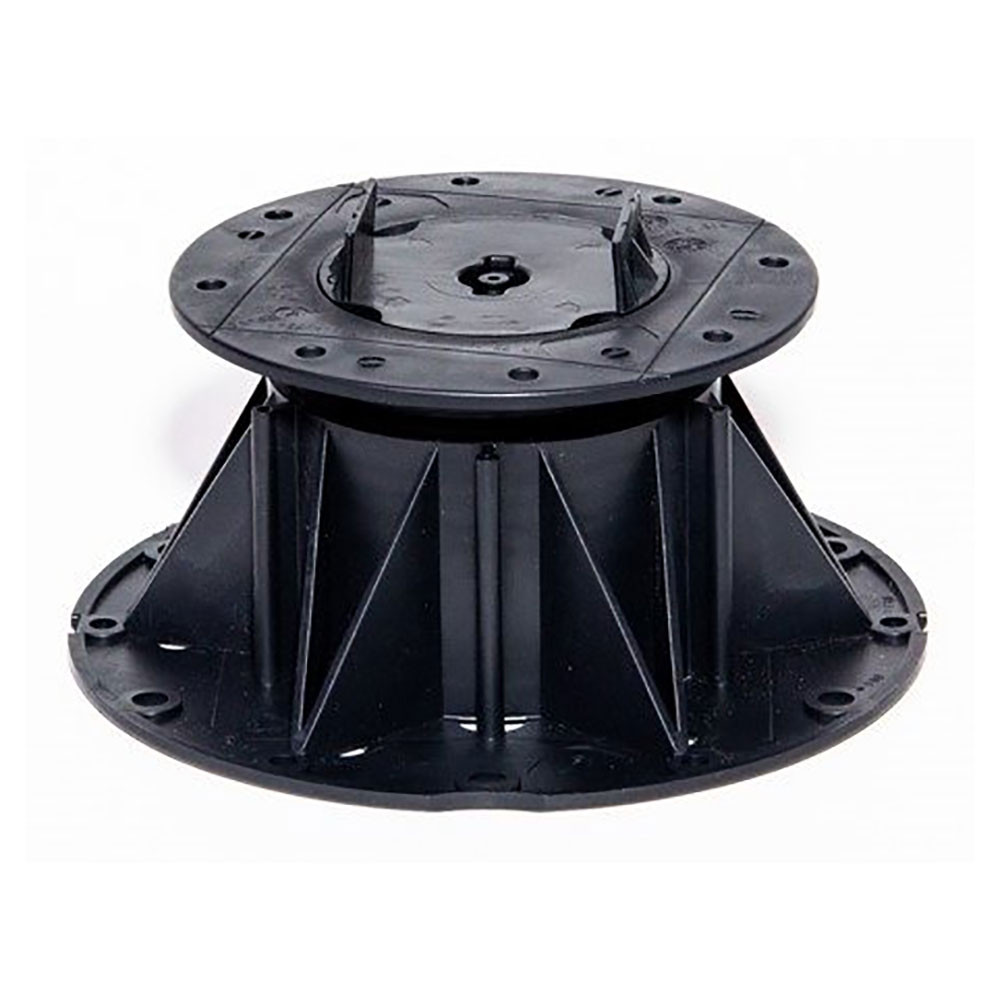

Wallbarn TD Megapad Adjustable Support Pad - 75mm to 120mm

Product Code:
SP-TD-MEG-075-Z
Brand:
Est. Delivery: 1-2 Working Days
View Transport Policy

All delivery charges are included in the final shopping basket and are dependent on the products Scottish Highlands & the Islands where additional shipping charges will apply.

Please note that not all products will incur an additional delivery charge to the Scottish Highlands & the Islands – this is based on the costs from the manufacturer, distributor or courier providing shipping on our behalf. If your delivery address is in the Scottish Highlandsand Islands, a member of our helpline team will contact you prior to processing your order should an additional delivery charge apply.

While we make every effort to ensure orders are delivered by the date required, we cannot guarantee availability from the manufacturer or the manufacturer's delivery schedules.

Any variation to web delivery date given will be advised to you by email or telephone. If we are unable to make delivery because access is not possible, we reserve the right to make a failed delivery charge.

£5.58 Incl. VAT
£4.65 Ex. VAT
Bulk order for discounts
  • 1+
    £5.58 Incl. VAT
    £4.65 Ex. VAT

Product Description

TD Megapads help to achieve a better aesthetic when building decking surfaces by allowing flatter upper surfaces but allowing rainwater to drain between and under the deck boards and timber joists. This means there is less standing water on the surface. The cavity created helps to ventilate the structure and as no timber is left in permanent standing water, the lifespan of the decking is extended. The cavity also allows services such as pipes and cables to be hidden from view.

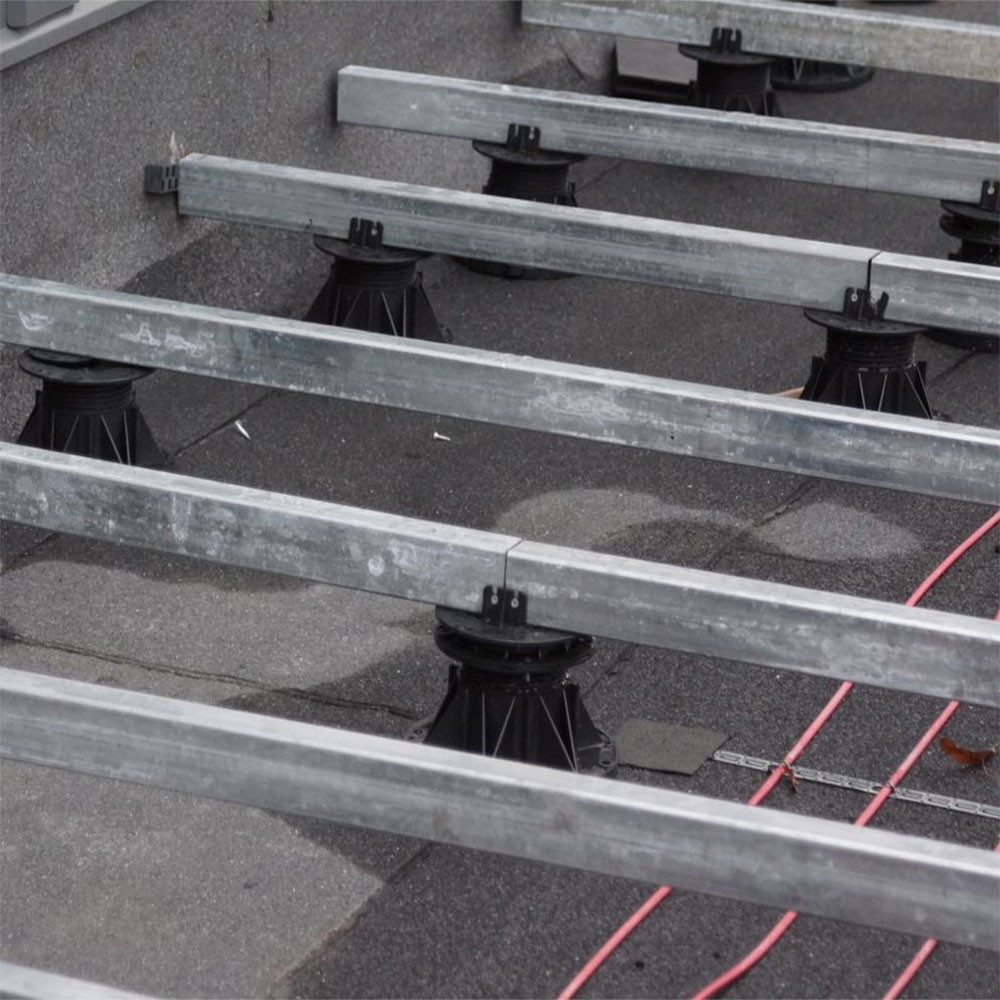

Wallbarn recommends that TD Megapads should be positioned a maximum of 600mm apart. This is a semi-suspended system – the timber joists will sit between 60mm wide positioning lugs / fins. The joists should be strong enough to support the decking and the weight of any traffic / furniture. The joists should be connected to form a grid framework and the deck boards – the surface – should be mechanically fixed to the frame.

Changes to height can be made whilst the timber joists are in place. This means less cutting of timber as the pedestals adjust to fit the levels, which saves a great deal of mess, time and labour during installation. TD Megapads are available in heights from 10mm up to 1,020mm.

They are manufactured from polypropylene and can tolerate 2 tonnes in weight per unit. They will not become brittle in low temperatures. Megapads have been tested using the CATAS procedure for Compressive Strength at +20°C and - 40°C. See technical data below for details.

A range of different lug size, slope correctors, levelling shims and accessories are available for use with TD Megapads from Wallbarn.

Product Specifications

Material: Virgin fibre injection moulded polypropylene

Weight Tolerance: Maximum Load 20,713 N = 2,057kg

End of Linear Behaviour at: 15,300N = 1,560kg

Max Temperature: Plus 75° C

Min Temperature: Minus 40°C

Base Plate Diameter: 200mm

Headpiece Diameter: 150mm

Distance Between Lugs / Fins: 60mm

Height of Fins: 18.5mm
