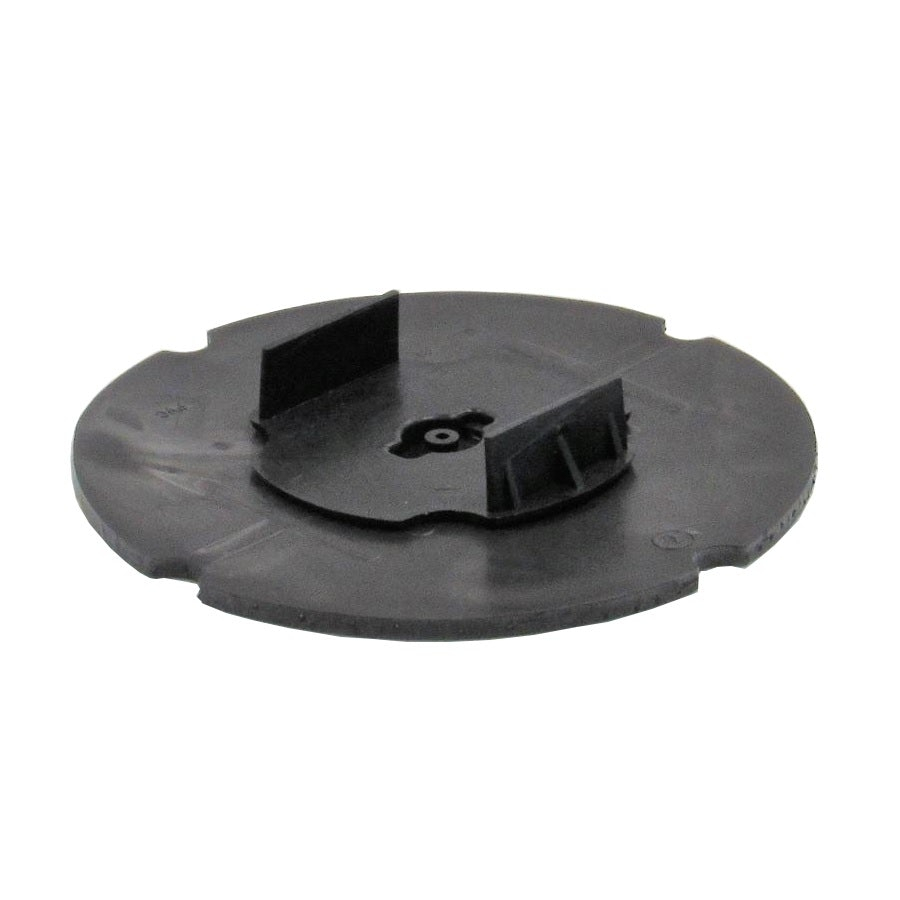

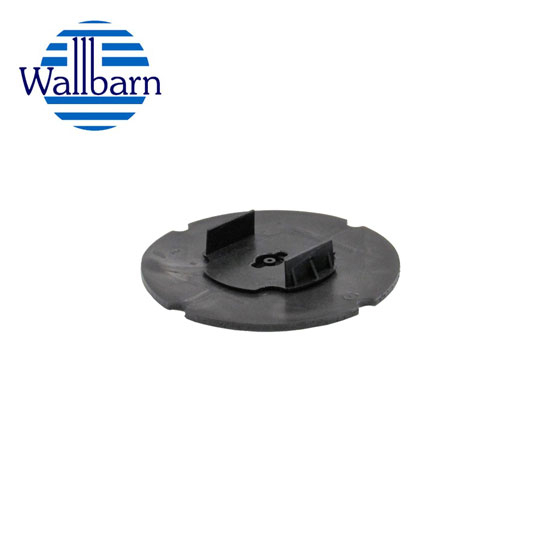

Wallbarn's alternative to the 5mm disc is the 6mm rubber pad for decking, with the integrated joist holder. The decking headpiece is placed onto the flat rubber disc to create a 6mm high decking pad. This is the ideal option for areas where the surface beneath needs to be prot...Read More
Wallbarn's alternative to the 5mm disc is the 6mm rubber pad for decking, with the integrated joist holder. The decking headpiece is placed onto the flat rubber disc to create a 6mm high decking pad. This is the ideal option for areas where the surface beneath needs to be protected and the timber joists need to be lifted off the deck to allow rainwater runoff to escape.
Since the discs are made from rubber, they have a soft, flexible, hard wearing, non-slip profile; which means they protect the membrane beneath from damage. Rubber will also offer acoustic properties and create a separation layer from the deck. They are extremely tough and durable and will also not become brittle in cold weather.
These pads are ideal for areas where a very tight height threshold is present, for example, on refurbishment projects. In certain circumstances it may be easier to simply overlay the existing surface with a new layer of suspended paving or decking rather than take everything up, and with the 6mm discs this is possible.
As with all the Wallbarn supports range there is no mechanical fixing required, the surface is secured by the weight of the slab. This cuts down weight on the roof and also the hassle and mess of laying slabs into mortar. This leads to easier, cheaper and faster installation and makes post-installation site inspection or leak detection much easier.
Material: PVC
Thickness / Height Off Surface: 6mm
Distance Between Lugs: 60mm
Fixing Points on Lugs: 2
Lug Height: 16mm
Weight Tolerance / Bearing Capacity: 8,000KG
Outer Diameter: 150mm
Appearance: Flat Disc (On Both Sides)
