Product Description

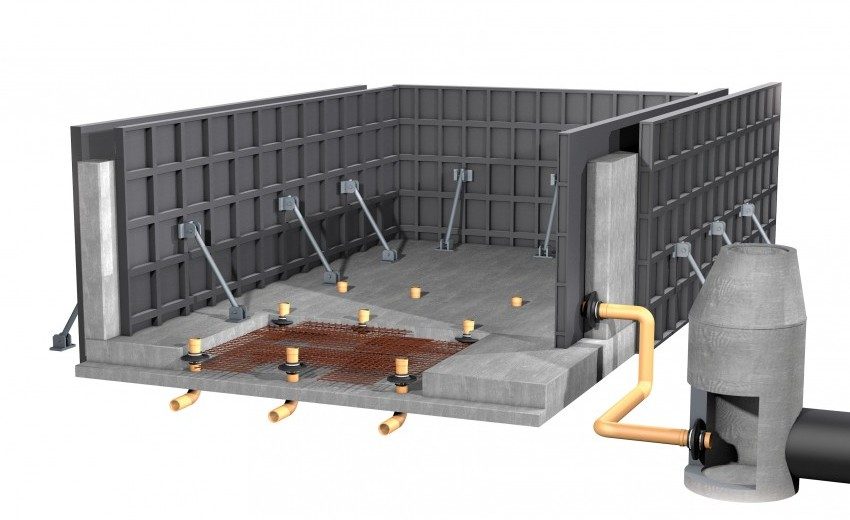

Watertight up to 10 bar and easy to install, the VIPSeal puddle flanges have been designed specifically for the pressure-tight installation of pipelines in concrete walls, tanks, shafts, foundation plates, manholes and basements.

Installed on the external pipe surface to act as a barrier, they diffuse gases and hydrocarbons and are suitable for all standard steel, plastic, clay, concrete and cast iron pipes from DN20 to DN3200 mm making them a perfect solution for any application.

VIPSeal puddle flanges are manufactured in EPDM and NBR. EPDM is chemically resistant to a wide range of substances and offers outstanding weather and ozone resistance. For applications in connection with oil and petrol, these puddle flanges made in NBR are the preferred option.

VIPSeal Puddle Flanges Applications

  • To prevent water or gas getting into buildings via pipe penetrations
  • Domestic and commercial developments
  • Suitable for use with all smooth walled pipes provided that the pipe surface, at the point of installation, is clean, smooth and free of pores or surface imperfections
  • Most pipe sizes can be accommodated from 20mm through to 3200mm diameter
  • Installed on pipes during construction where water penetration has to be prevented

Installation

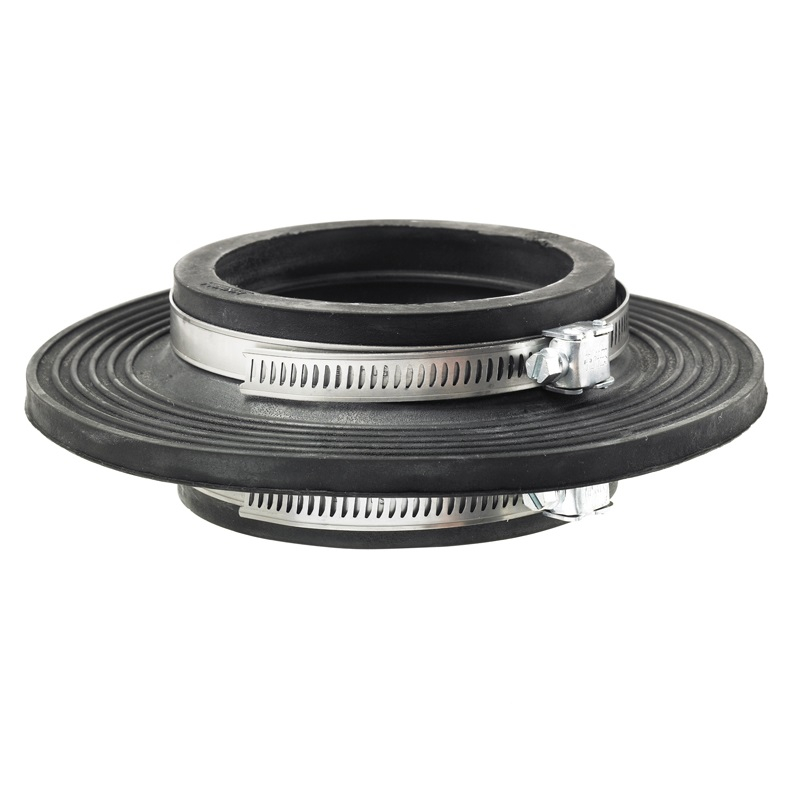

Thanks to the easy-lock tension bands, installing a VIPSeal puddle flange takes only a few minutes. The puddle flange is mounted by hand on the pipe and secured with the supplied tension bands. A screwdriver or 6mm nut driver can be used to install the tension band on pipes of up to 315 mm in diameter.

Product Documents

Details

Product Type Puddle Flange
