VIPSeal Puddle Flange for Pipes 225-249mm

Product Code:
Est. Delivery: 1-2 Working Days
View Transport Policy

All delivery charges are included in the final shopping basket and are dependent on the products Scottish Highlands & the Islands where additional shipping charges will apply.

Please note that not all products will incur an additional delivery charge to the Scottish Highlands & the Islands – this is based on the costs from the manufacturer, distributor or courier providing shipping on our behalf. If your delivery address is in the Scottish Highlandsand Islands, a member of our helpline team will contact you prior to processing your order should an additional delivery charge apply.

While we make every effort to ensure orders are delivered by the date required, we cannot guarantee availability from the manufacturer or the manufacturer's delivery schedules.

Any variation to web delivery date given will be advised to you by email or telephone. If we are unable to make delivery because access is not possible, we reserve the right to make a failed delivery charge.

£29.20 Incl. VAT
£24.33 Ex. VAT
Oops! Please select from the options

Product Description

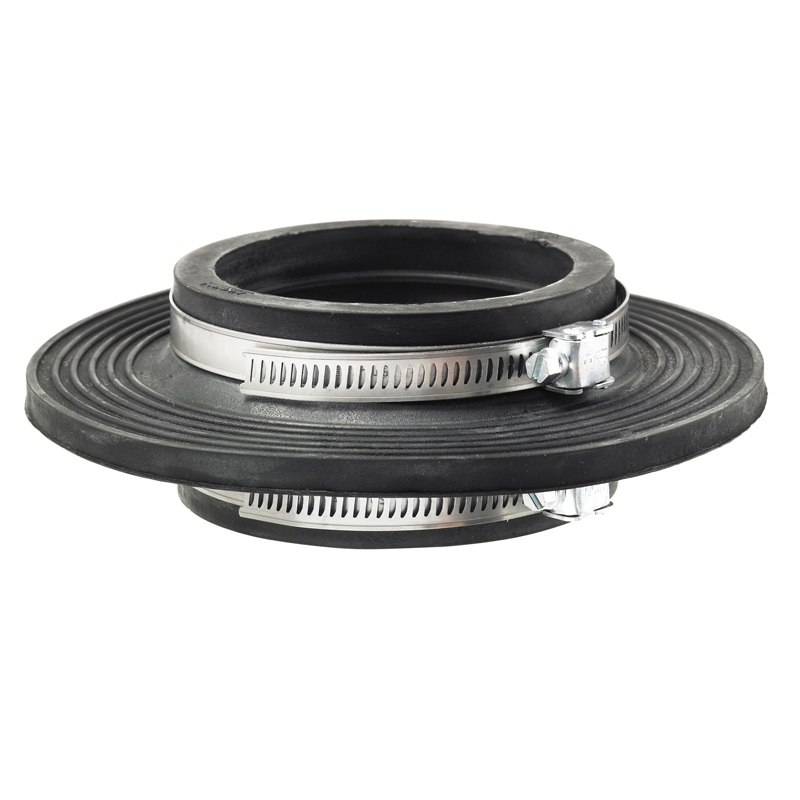

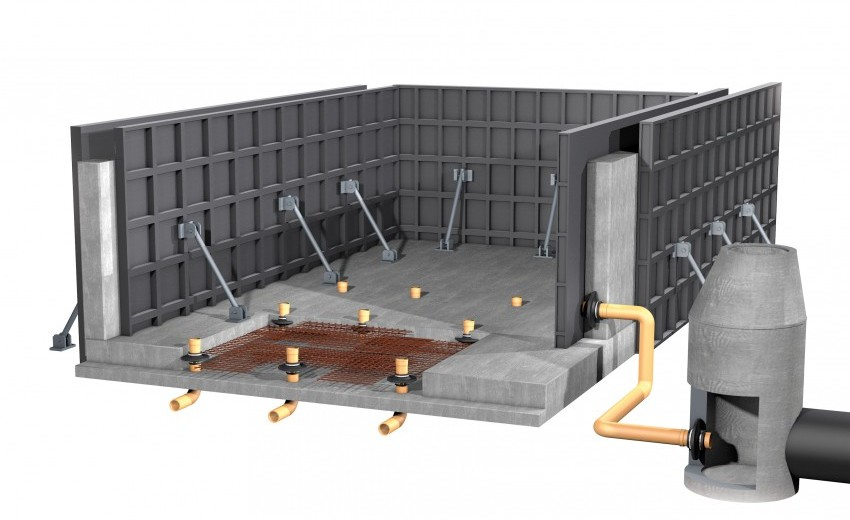

Watertight up to 10 bar and easy to install, the VIPSeal puddle flanges have been designed specifically for the pressure-tight installation of pipelines in concrete walls, tanks, shafts, foundation plates, manholes and basements.

Installed on the external pipe surface to act as a barrier, they diffuse gases and hydrocarbons and are suitable for all standard steel, plastic, clay, concrete and cast iron pipes from DN20 to DN3200 mm making them a perfect solution for any application.

VIPSeal puddle flanges are manufactured in EPDM and NBR. EPDM is chemically resistant to a wide range of substances and offers outstanding weather and ozone resistance. For applications in connection with oil and petrol, these puddle flanges made in NBR are the preferred option.

VIPSeal Puddle Flanges Applications

  • To prevent water or gas getting into buildings via pipe penetrations
  • Domestic and commercial developments
  • Suitable for use with all smooth walled pipes provided that the pipe surface, at the point of installation, is clean, smooth and free of pores or surface imperfections
  • Most pipe sizes can be accommodated from 20mm through to 3200mm diameter
  • Installed on pipes during construction where water penetration has to be prevented


Thanks to the easy-lock tension bands, installing a VIPSeal puddle flange takes only a few minutes. The puddle flange is mounted by hand on the pipe and secured with the supplied tension bands. A screwdriver or 6mm nut driver can be used to install the tension band on pipes of up to 315 mm in diameter.

Product Documents


Product Type Puddle Flange Material EPDM
