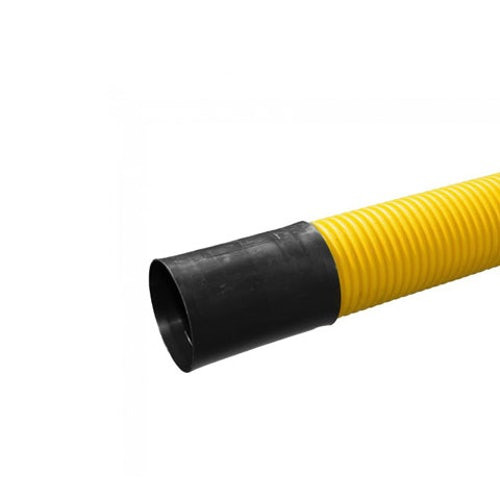

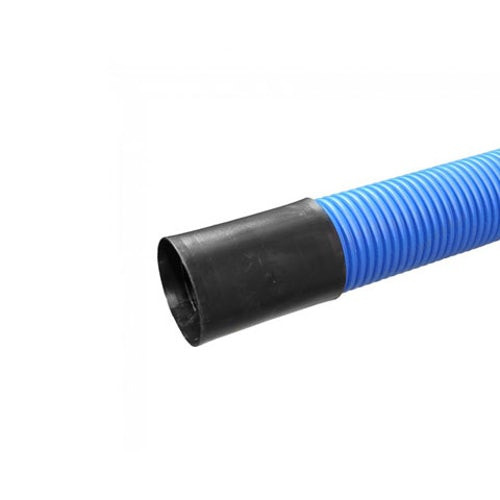

DISCON - Twinwall Surface Water Perforated Drain Pipe with Coupler

Code:
PARENT-JFC-YT-BT

JFC CorriPipe is a twinwall drainage pipe made from HDPE plastic and is manufactured by twin extrusion process in which the two layers are simultaneously extruded one inside the other and heat welded together in one continuous step. The outer wall is corrugated providing excel... Read More

Create a wishlist

"Easy adjustment made to my first o…"

JG

Description

JFC CorriPipe is a twinwall drainage pipe made from HDPE plastic and is manufactured by twin extrusion process in which the two layers are simultaneously extruded one inside the other and heat welded together in one continuous step. The outer wall is corrugated providing excellent structural strength which reduces the possibility of on-site damage. The inner wall has a smooth seamless finish to assist hydraulic flow. The design unlike traditional single-wall pipe prevents silt accumulation.

Benefits

  • Lightweight and available in long lengths (6m) making it quick and easy to install. Ease of installation and the elimination of wastage reduce labour and plant costs.
  • Fewer joints and longer lengths (6m) assist flow.
  • Resistant to most naturally occurring chemicals and is therefore suitable for use on the majority of soil conditions.
  • Can be installed in depths from 0.5 to 10m
  • Full range of fittings and accessories available

Dimensions

Length
6000mm
Width
0.1mm

Details

Colour
Blue
Yellow
Material
HDPE
Diameter
150mm
225mm
300mm
Finish
Perforated
Pipe Diameter
150mm
225mm
300mm
