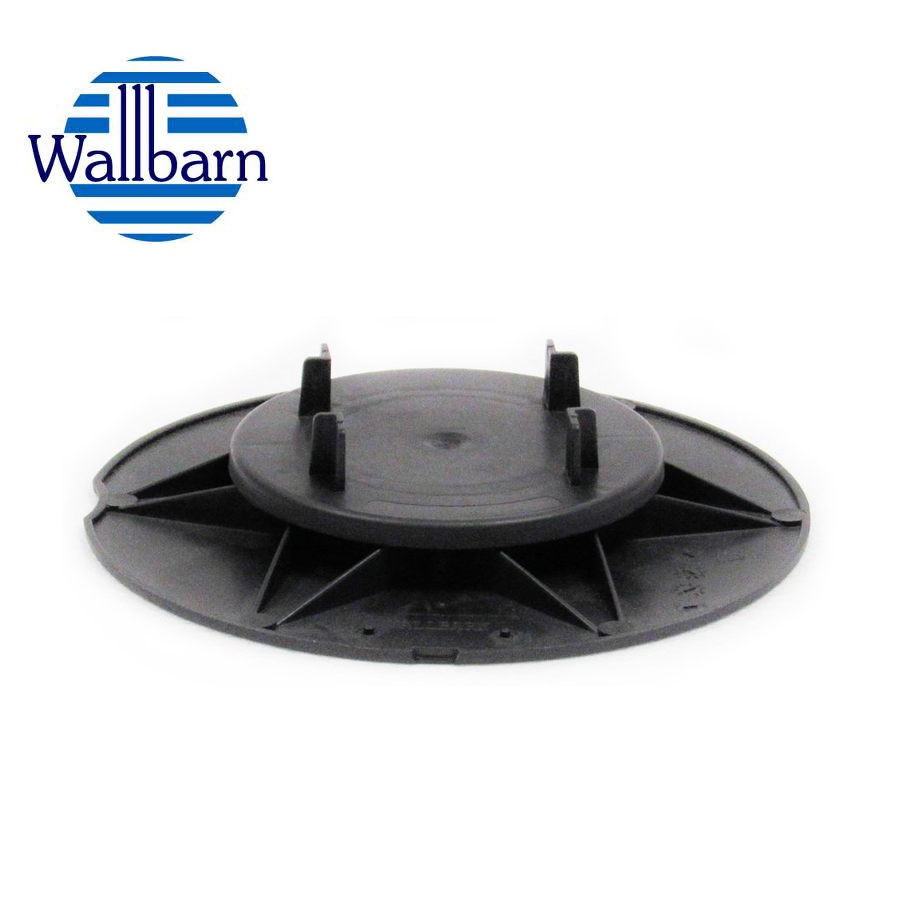

Timber Decking Support Pad - 25mm Fixed

Code:
SP-TD-025-FIXED-Z
Brand:

In order to achieve perfectly flat timber decking at terraces, roof decks, and balconies, look to Wallbarn’s TD adjustable pedestals. Using this product lets you create timber decking that’s faster, easier and more durable. The suspended system eliminates the need for specific...Read More

Create a wishlist

"Excellent service"

Stuart L

Description

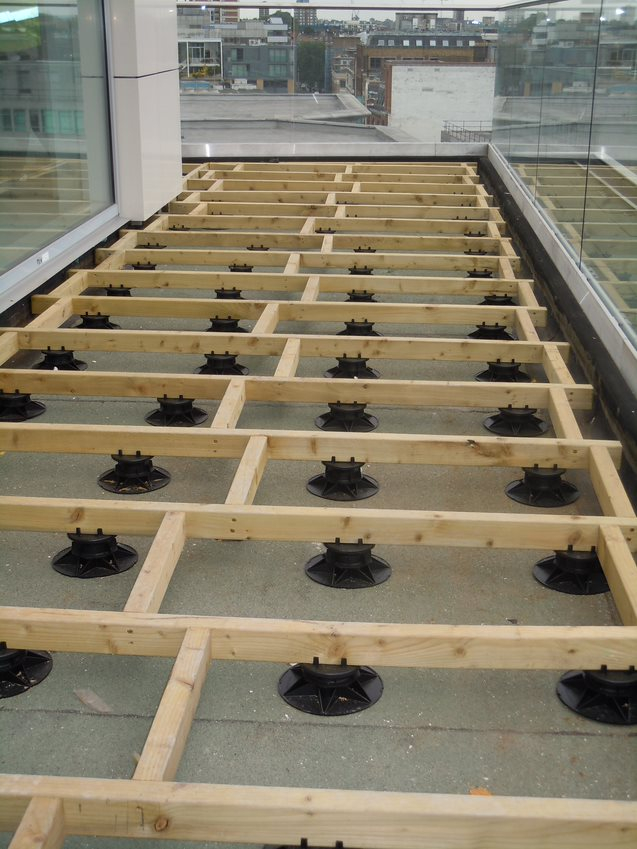

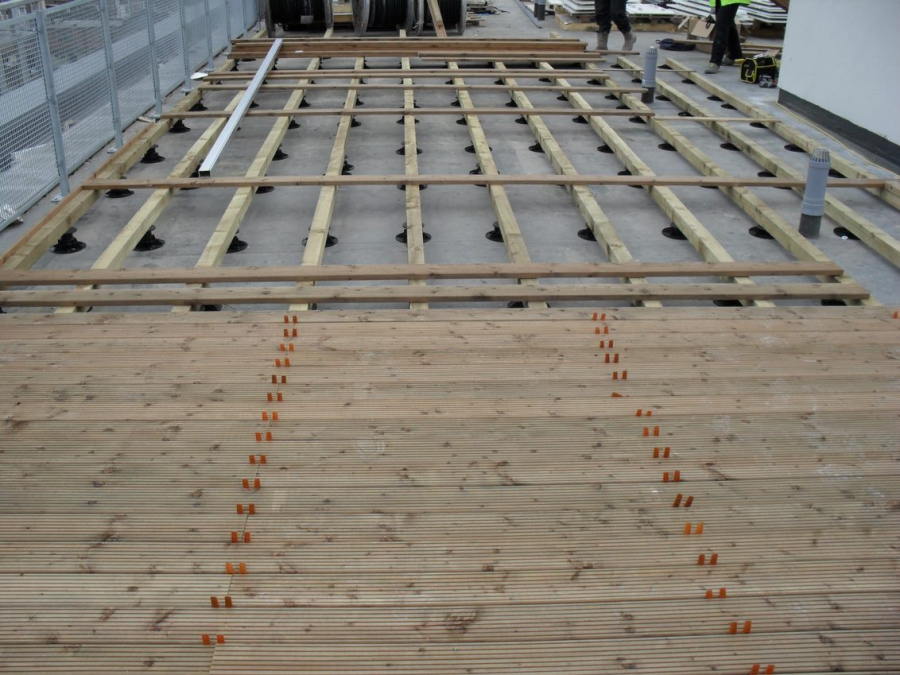

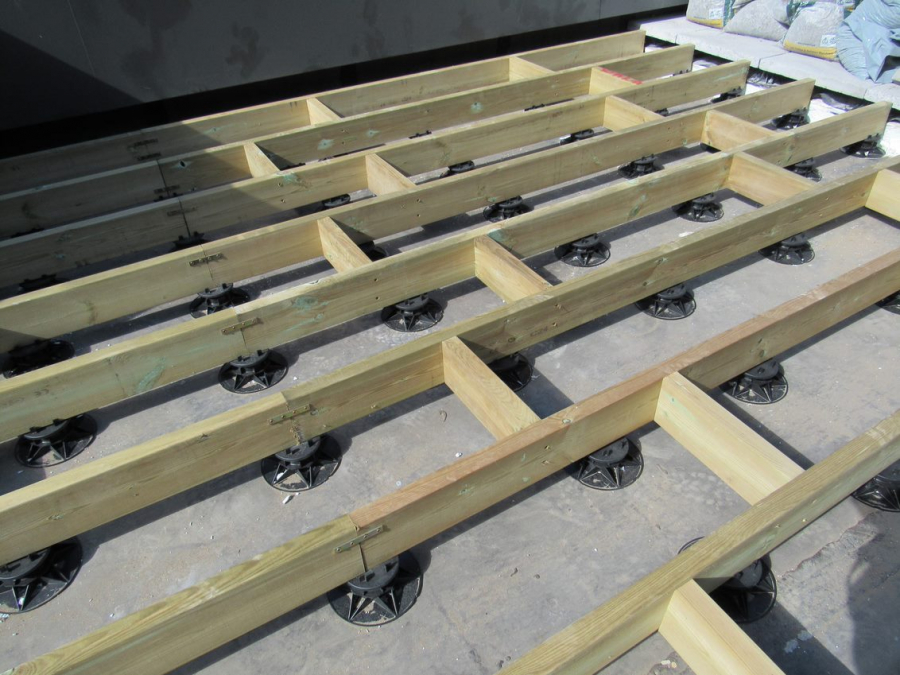

In order to achieve perfectly flat timber decking at terraces, roof decks, and balconies, look to Wallbarn’s TD adjustable pedestals. Using this product lets you create timber decking that’s faster, easier and more durable. The suspended system eliminates the need for specific fixing of the pedestal: instead, the weight of joists holds it down, before deck boards are attached to joists.

The stem can be rotated to move the frame level up and down, helping you achieve totally flat decking. Don’t let timbers rest upon the subdeck, because this will negatively affect the waterproofing. Baseplates allow weight to be evenly distributed.

This product improves drainage and keeps the timber away from standing water, prolonging the decking’s lifespan. The pedestal’s headpiece has peg fittings with 4-6cm gaps allowing for joist placement. The pedestals will take up to one tonne of load and remain resilient in sub-zero weather. CATAS testing certifies it against temperatures of +20C and -40C and the polypropylene pedestals come in heights that run from 2.5cm to 38cm.

This is the clear solution to falls that have levels which change by a small amount, or where there is constant fall over a long area, or differing and complex shifts in levels across the roof. Wallbarn recommends that gaps amongst pedestals are no longer than 600mm.

Specification

Material: Virgin fibre injection moulded polypropylene

Weight Tolerance: Maximum Load 11,493 N = 1,171kg

End of Linear Behaviour at: 6,700N = 683kg

Max Temperature: Plus 75° C

Min Temperature: Minus 40°C

Base Plate Diameter: 200mm

Headpiece Diameter: 120mm

Peg/Lug Height: 18mm

Distance Between Pegs/Lugs: 40mm and 60mm

Details

Material Polypropylene
