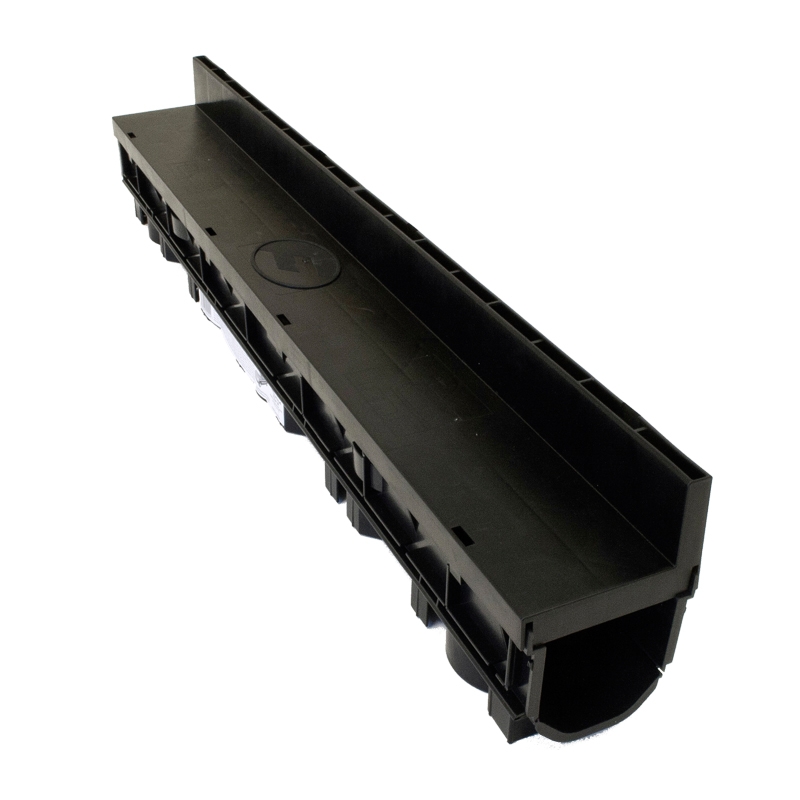

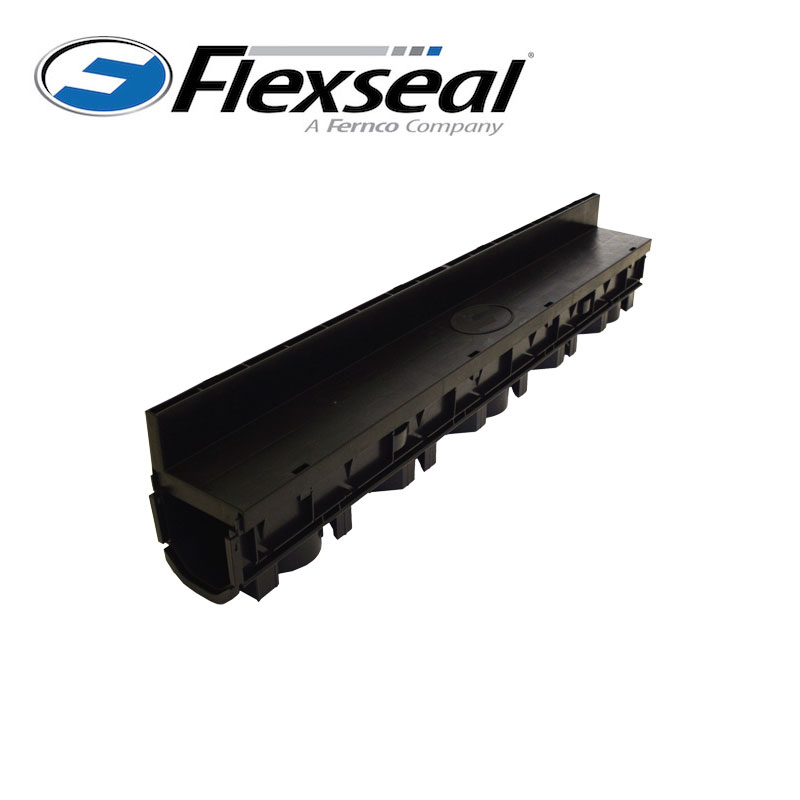

Slot Threshold Channel Drain 1000L x 120W x 194H - A15 Class

Product Code:
AQDSLOT
Brand:
Please note: We are unable to sell this item to anyone under the age of 18. An age verification process provided by our third-party partners 'VerifyMyAge' is in place to check all orders, this is an automatic process at checkout. Physical proof of age may also be required at point of delivery.
Est. Delivery: 5-7 Working Days
Shipping costs displayed in basket.
We can let you know when this product is back in stock.

This product is proving to be very popular and has unfortunately sold out.

Enter your email below and we'll notify you as soon as this product is back in stock:

Subject to stock availability, if products on a 24 hours service are ordered alongside products NOT on a 24 hours service, this may delay your whole order.

View Transport Policy

All delivery charges are included in the final shopping basket and are dependent on the products Scottish Highlands & the Islands where additional shipping charges will apply.

Please note that not all products will incur an additional delivery charge to the Scottish Highlands & the Islands – this is based on the costs from the manufacturer, distributor or courier providing shipping on our behalf. If your delivery address is in the Scottish Highlandsand Islands, a member of our helpline team will contact you prior to processing your order should an additional delivery charge apply.

While we make every effort to ensure orders are delivered by the date required, we cannot guarantee availability from the manufacturer or the manufacturer's delivery schedules.

Any variation to web delivery date given will be advised to you by email or telephone. If we are unable to make delivery because access is not possible, we reserve the right to make a failed delivery charge.

Or call our friendly team on 01752 692 221

Product Description

Dimensions
Length : 1000m
Width : 120mm
Base to Base : 134mm
Slot Height : 60mm
Total Height : 194mm

Avaliable Accessories
End Cap
Pipe Connector

Description

A quality, discreet drainage channel for domestic block paved areas, commonly used in front of door thresholds.

Features & Benefits
• Ideal for domestic, threshold and light vehicle areas only
• Can handle a flow rate of 4.5 l/s
• 100% recycled polypropylene, so light & easy to install
• Base tested to BS EN 1433
• Positive mechanical joint between each channel length
• Can be installed with block paving or concrete surround

Slotdrain Installation Instructions
The Channel Drain should be fitted in complete lengths. If it is necessary to cut a length of channel drain, the
cut should be made at the end of the line and an end cap or outlet bonded at this point with waterproof mastic.
V001APR16
1. Excavate a trench 330mm wide (230mm wide if adjacent to a structure) by 240mm deep. Create a 50mm deep compacted sand base to bed the channel, or a 50mm concrete base if installed in a trafficked area. A minimum of 100mm concrete ‘haunch’ on each side of the channel is required to provide maximum stability.
2. Use a ‘string line’ in the line of dig to align the channel unit, setting the height of the grate at between 3-5mm below the final surface level.
3. Set at a slight gradient if conditions permit.
4. Install an end cap at the start or highest point of the channel.
5. The end or lowest point of the channel drain should be connected to a 110mm pipe (BS EN 1401) using either the end outlet or base outlet. The outlet pipe will need connecting to either a surface water drain or soakaway.
6. Ensure that the slot grate is firmly connected to the base, and backfill using concrete. The channel will not need securing down provided the concrete is pokered during the process to ensure it encapsulates the anti-flotation plates on the molding. Constant checks should be made to ensure the channel hasn’t moved.
7. Once cured, the surface area can be constructed over the channel base. A 12mm layer of compacted sand should be applied in preparation for the block paving. Block paving can now be positioned up to the slot.

Note: Surfacing such as tarmac should be installed with due care, to
protect the channel unit from possible heat distortion.

Product Documents

There are no product documents to show.

Dimensions

Width 120mm Length 1000mm

Details

Weight Class A15
