A quality, discreet drainage channel for domestic block paved areas, commonly used in front of door thresholds. Dimensions Length : 1000m Width : 120mm Base to Base : 134mm Slot Height : 60mm Total Height : 194mm Features & Benefits • Ideal for domestic, thresho...Read More

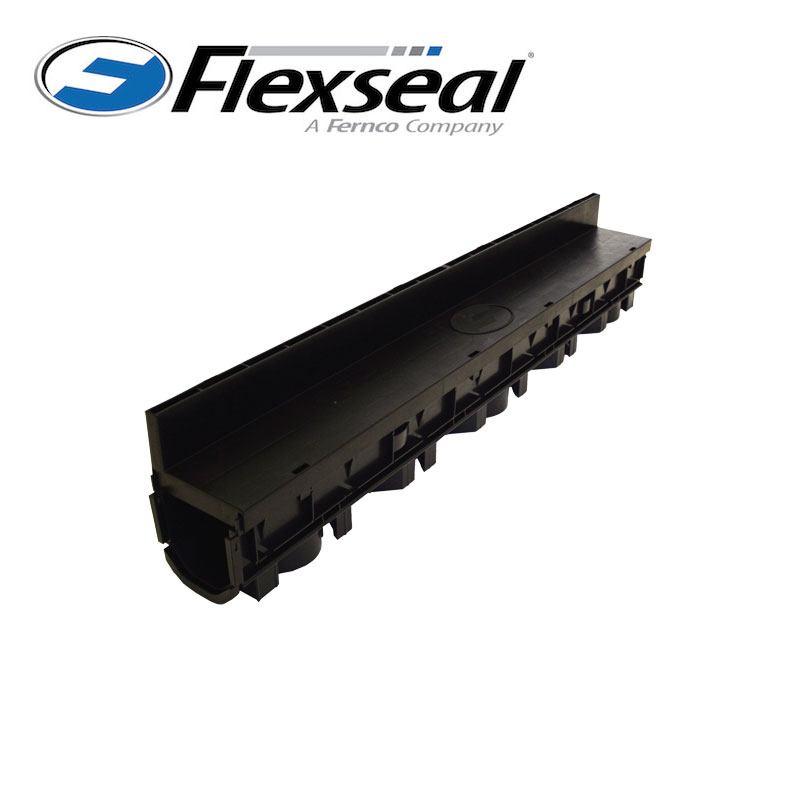

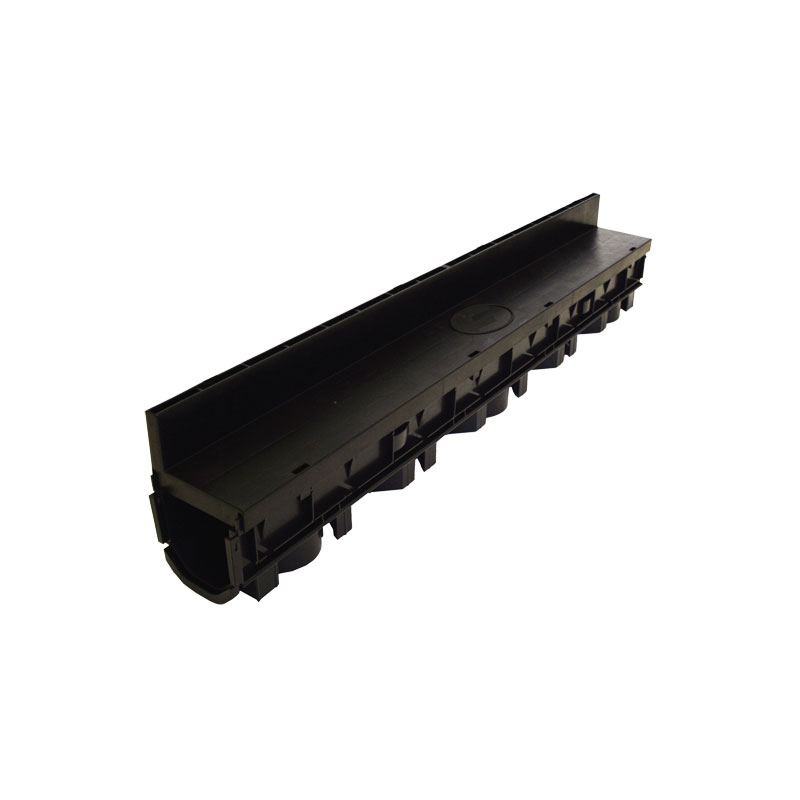

A quality, discreet drainage channel for domestic block paved areas, commonly used in front of door thresholds.
Length : 1000m
Width : 120mm
Base to Base : 134mm
Slot Height : 60mm
Total Height : 194mm
• Ideal for domestic, threshold and light vehicle areas only
• Can handle a flow rate of 4.5 l/s
• 100% recycled polypropylene, so light & easy to install
• Base tested to BS EN 1433
• Positive mechanical joint between each channel length
• Can be installed with block paving or concrete surround
Slotdrain Installation Instructions
The Channel Drain should be fitted in complete lengths. If it is necessary to cut a length of channel drain, the
cut should be made at the end of the line and an end cap or outlet bonded at this point with waterproof mastic.
V001APR16
1. Excavate a trench 330mm wide (230mm wide if adjacent to a structure)
by 240mm deep. Create a 50mm deep compacted sand base to bed the
channel, or a 50mm concrete base if installed in a trafficked area. A
minimum of 100mm concrete ‘haunch’ on each side of the channel is
required to provide maximum stability.
2. Use a ‘string line’ in the line of dig to align the channel unit,
setting the height of the grate at between 3-5mm below the final surface
level.
3. Set at a slight gradient if conditions permit.
4. Install an end cap at the start or highest point of the channel.
5. The end or lowest point of the channel drain should be connected to a
110mm pipe (BS EN 1401) using either the end outlet or base outlet. The
outlet pipe will need connecting to either a surface water drain or
soakaway.
6. Ensure that the slot grate is firmly connected to the base, and
backfill using concrete. The channel will not need securing down
provided the concrete is pokered during the process to ensure it
encapsulates the anti-flotation plates on the molding. Constant checks
should be made to ensure the channel hasn’t moved.
7. Once cured, the surface area can be constructed over the channel
base. A 12mm layer of compacted sand should be applied in preparation
for the block paving. Block paving can now be positioned up to the slot.
Note: Surfacing such as tarmac should be installed with due care, to
protect the channel unit from possible heat distortion.
