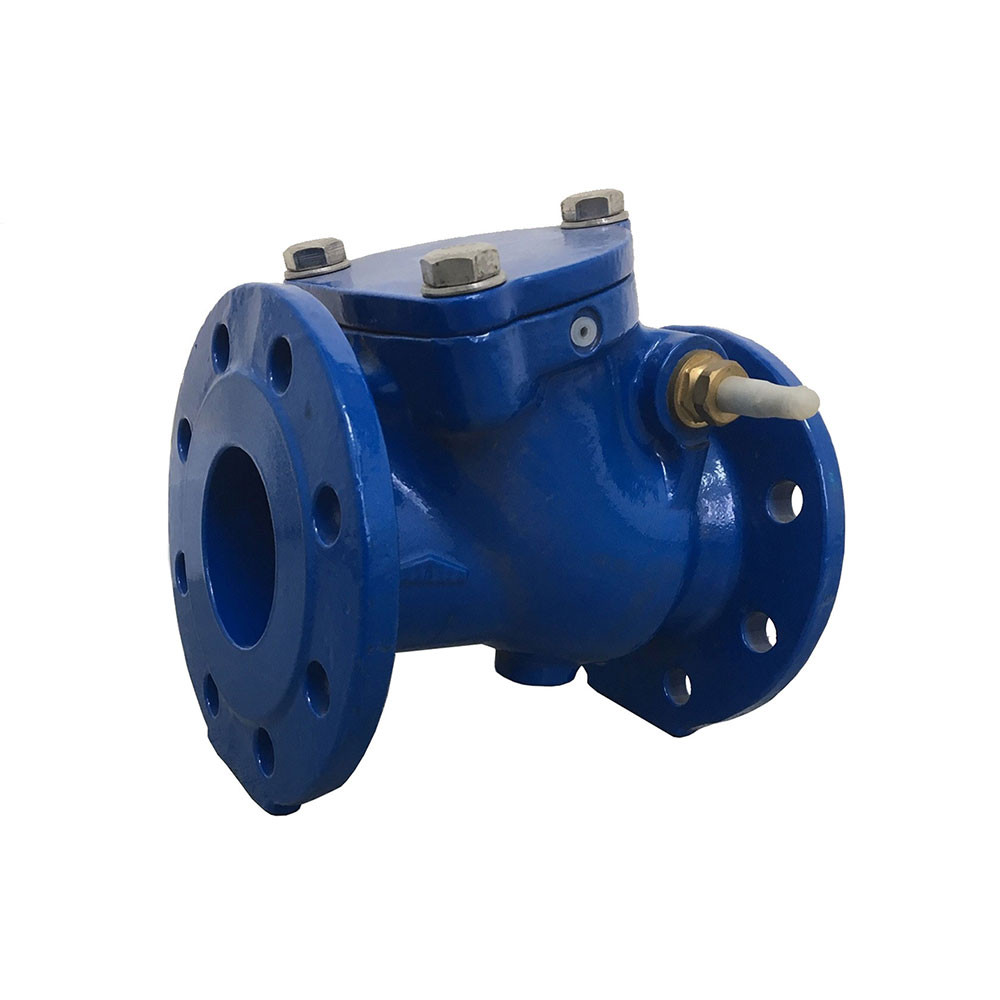

Resilient Seat 150mm Left Hand Free Hanging PN10-18 Non-Return Valve

Code:
213714
Brand:
Free UK Delivery

The Resilient Seat Left Hand Free Hanging Non-Return Valve is a swing check valve manufactured to the requirements of EN 1074-3 for use in both horizontal and vertical systems. Suitable for potable water or sewage applications. The stainless-steel hinge pin with copper alloy... Read More

Create a wishlist

"Regardless of the enquiry"

Steve

Description

The Resilient Seat Left Hand Free Hanging Non-Return Valve is a swing check valve manufactured to the requirements of EN 1074-3 for use in both horizontal and vertical systems.

Suitable for potable water or sewage applications.

The stainless-steel hinge pin with copper alloy bushes ensures a positive location and the smooth operation of the lever weight valve.

For installation, the standard arrangement is with the lever on the left-hand side when facing downstream but can be changed to ‘opposite hand’ operation if required.

Features & Benefits

  • Ductile iron body provides high strength to weight ratio. Safety factor in excess of 4
  • Double ‘O’ ring contained within the copper alloy bush provides a leak-tight seal
  • Seat tightness acc. EN 12266-1 grade D
  • Valve body coated in WRAS approved blue fusion-bonded epoxy in accordance with EN 14901
  • Lever, weight and guard kit designed for installation on site to improve handling
  • Suitable for horizontal or vertical installation

Specification

Diameter(mm): 150

Length(mm): 356

Shell Material: Epoxy coated ductile iron

Details

Diameter
150mm
