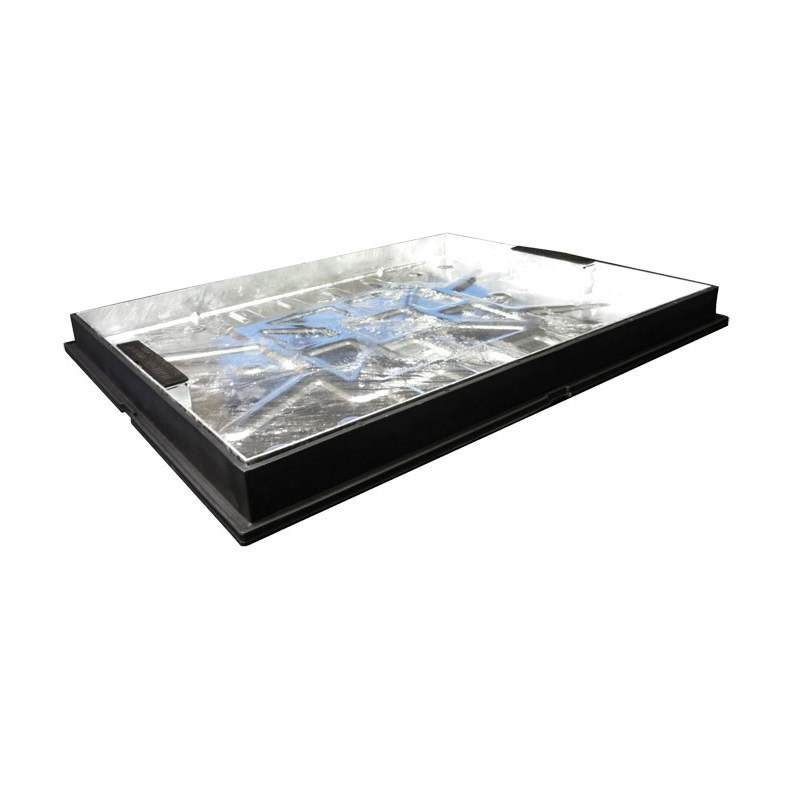

Recessed SlimTRAY Manhole Cover and Frame 600 x 450mm - 10 Tonne

Product Code:
Est. Delivery: TBC

This item is out of stock and not available to purchase.

£49.00 Incl. VAT
£40.83 Ex. VAT
Oops! Please select from the options

Product Description

56mm Deep, 40mm Tray Depth, Medium Duty, Recessed Manhole Cover for floor finish Infill
Usage: For internal usage with infrequent slow moving traffic up to 10 tonnes GLVW

  • UK Patent App. 2450631
  • Built-in S.L.K. Secure Lifting Keys - steel loop handle for maximum durability & strength
  • Discreet locking points c/w protective S.L.K. cap
  • Polypropylene seal for improved sealing & handling properties
  • Single piece steel lid for added strength & rigidity
  • New 'O' ring continuous rubber seal to prevent the egress of odours
  • New 'Savage StackRight' design for improved stability in storage
  • UK - Design and Manufacture
  • Manufactured under an ISO 9001:2000 Quality System
  • Finish: Hot dipped galvanised to BS EN ISO 1461 as standard


Clear Opening: 600mm x 450mm
Internal Recess: 40mm
Overall Base: 726mm x 576mm
Frame Depth: 56mm
Over Top of Frame: 694mm x 544mm

Product Documents

There are no product documents to show.


Width 450mm Length 600mm


Product Type Manhole Cover and Frame Maximum Weight Load 10 tonnes Material Galvanised Steel Shape Rectangular Features Recessed
Depth 56mm Weight Class B125

Frequently Bought Together


Questions & Answers


Can this be used internal ? Is it double sealed


This is for external use on block paving and is not sealed


The drain that's needs replacing is 670x520 on top would this be ok to replace.


Yes, you will need to replace the entire lid and frame. 600 x 450 refers to the internal dimensions of the cover


Can this be used external in patio area with only light foot traffic?




How can I disguise the cover of the recessed SlimTRAY manhole cover and frame 600 x 450mm - 10 Tonne?


When fitting the recessed SlimTRAY manhole cover and frame 600 x 450mm - 10 Tonne, whatever material you are using as the surrounding area is placed in the tray style lid.


How do you lift the cover up?


This cover has built in, integrating lifting handles. These are located underneath the black rubber points located at each side of the cover.

Product Reviews

5 / 5 2 reviews
Jason King
15th July
Product was excellent but delivery was very expensive
Alice Hardwick
24th May
Great product, fast delivery
