Home Underground Drainage Rainwater Harvesting Rainwater Harvesting Tank Low Profile 5000L Graf Platin Eco-Plus

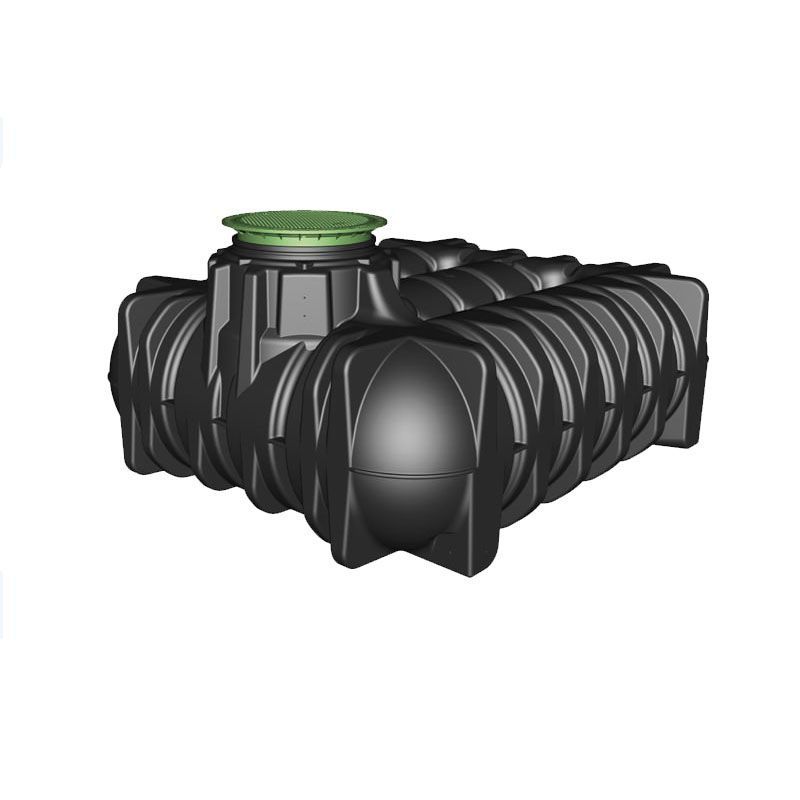

Rainwater Harvesting Tank Low Profile 5000L Graf Platin Eco-Plus

Code:
G70371
Brand:
Graf
Free UK Delivery

This item is out of stock and not available to purchase.

View alternative products

Specially developed for rainwater harvesting, this Platin flat rainwater tank has a 5000-litre capacity and a minimum installation depth which ensures a quick and lost cost installation. Featuring self-cleaning integrated filter technology, it offers a drinking water supply fo...Read More

View full product details
View questions about this product
Create a wishlist

"Very happy with product and delive…"

Rebecca H
Description Specification Downloads Q&A

Description

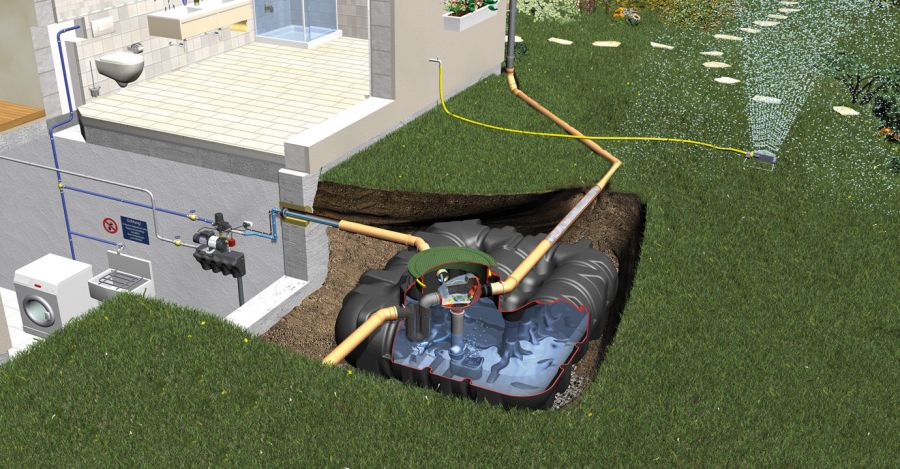

Specially developed for rainwater harvesting, this Platin flat rainwater tank has a 5000-litre capacity and a minimum installation depth which ensures a quick and lost cost installation. Featuring self-cleaning integrated filter technology, it offers a drinking water supply for your home and can be controlled by a floating switch.

Due to its modular components, this rainwater harvesting tank is easy to fit and includes four pre-fitted DN 100 lip seals. With a mini telescopic dome shaft and simply one PE cover visible at the surface, this Platin flat tank can be walked on.

Features & Benefits: Rainwater Harvesting Tank Low Profile 5000L Graf Platin Eco-Plus

  • Mini telescopic dome shaft can be walked on with PE cover
  • Four pre-fitted DN 100 lip seals
  • Just one cover visible at the surface
  • Easy to install thanks to modular components
  • Controlled by floating switch
  • Drinking water supply in the home
  • Self-cleaning integrated filter technology
  • 650mm Innen Ø dome shaft
  • 2890mm length x 2300mm width x 1265mm height

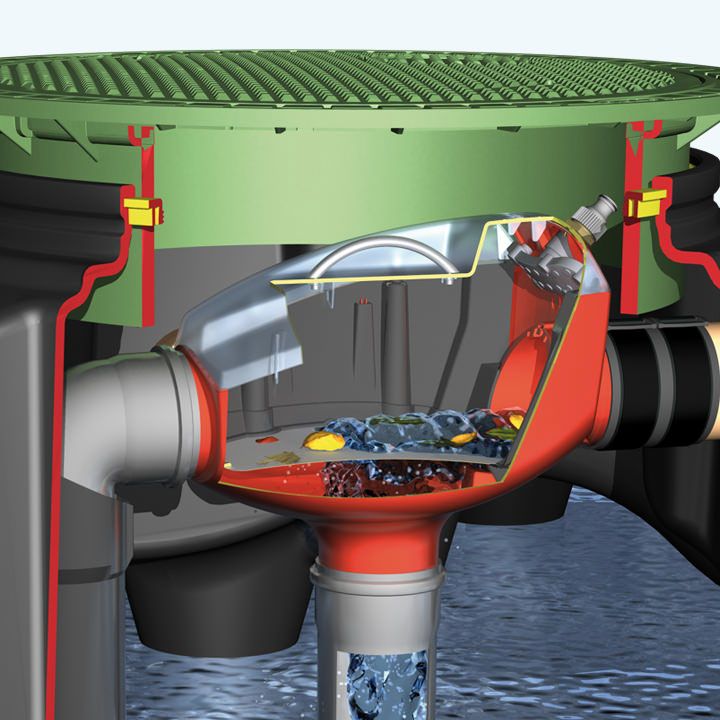

With tool-free and quick-fit connections, this tank with ECOsmart features a self-priming diaphragm pump and a three-way water supply switch. The filter package 2 consists of an internal Universal Filter 3, inflow stilling system for controlling the water inflow as well as a Rodent Guard, a Spannfix connection sleeve and an Overflow siphon.

The ECO-Plus technical package consists of a 12m PE suction pipe, labelling set, DN 100 wall duct, V2A switch control, floating water extraction unit and 15/4 drinking water feeding console. The house filter package comprises a Spannfix pipe connection sleeve, Overflow siphon, steady inlet pot and Minimax-Pro internal self-cleaning filter.

Package Contents

  • 1 x Platin Tank
  • 1 x 12m Roll of pressure hose
  • 1 x Floating water extraction unit
  • 1 x ECOsmart with self-priming diaphragm pump and three-way water supply switch
  • 1 x filter package 2 with Internal Universal Filter 3, inflow stilling system
  • 1 x Rodent Guard
  • 1 x Spannfix connection sleeve
  • 1 x Overflow siphon
  • 1 x Telescopic Mini PE Lid, Pedestrian loading, Green

Details

Profile Low Profile
