Rainwater Harvesting Tank Low Profile 3000L Graf Platin Eco-Plus

Product Code:
390110
Brand:
Free UK Delivery
Est. Delivery: 5-7 Working Days
View Transport Policy

All delivery charges are included in the final shopping basket and are dependent on the products Scottish Highlands & the Islands where additional shipping charges will apply.

Please note that not all products will incur an additional delivery charge to the Scottish Highlands & the Islands – this is based on the costs from the manufacturer, distributor or courier providing shipping on our behalf. If your delivery address is in the Scottish Highlandsand Islands, a member of our helpline team will contact you prior to processing your order should an additional delivery charge apply.

While we make every effort to ensure orders are delivered by the date required, we cannot guarantee availability from the manufacturer or the manufacturer's delivery schedules.

Any variation to web delivery date given will be advised to you by email or telephone. If we are unable to make delivery because access is not possible, we reserve the right to make a failed delivery charge.

£3,520.01 Incl. VAT
£2,933.34 Ex. VAT
Oops! Please select from the options

Product Description

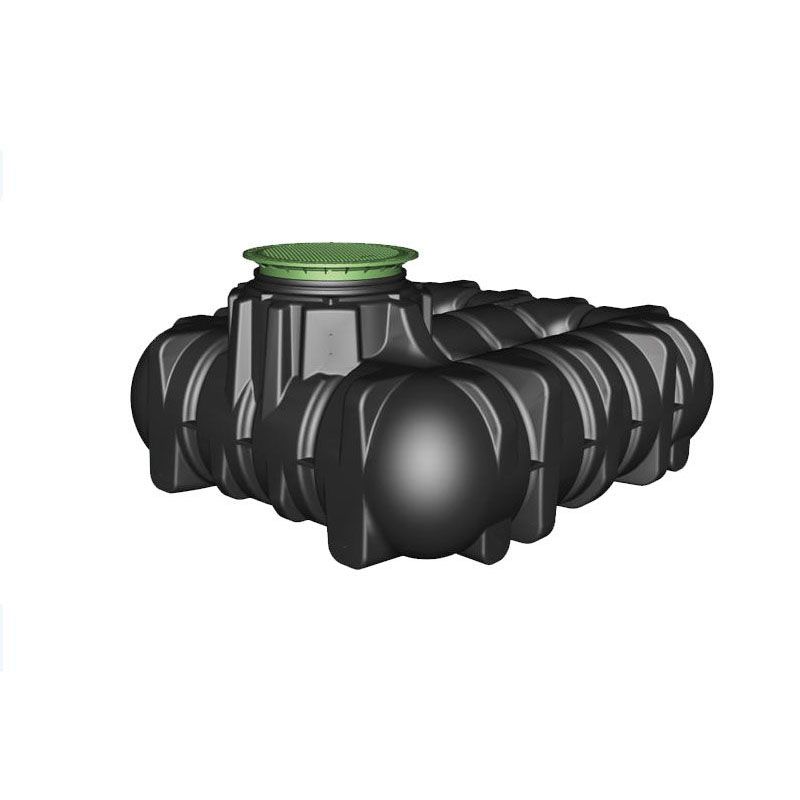

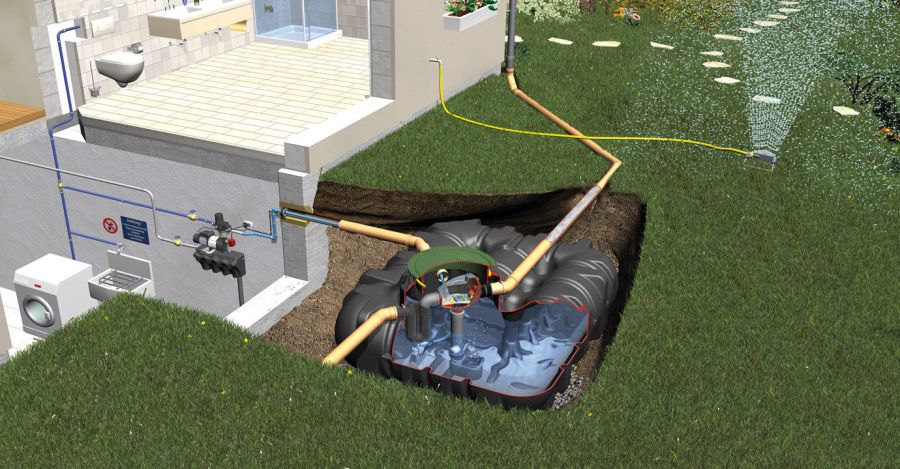

The Platin flat rainwater tank was specially developed for rainwater harvesting. It is available in sizes of between 1500 and 7500 litres. It features a minimum installation depth which translates into a short installation time and low installation costs.

Package Includes

1 x Platin Tank
1 x Telescopic Mini PE Lid, Pedestrian loading, Green
1 x Filter package 2 consisiting internal Universal Filter 3, Inflow stilling system for controlling the water inflow, Overflow siphon, Rodent Guard and spannfix connection sleeve.
1 x ECOsmart consisting of self priming diaphragm pump with three way water supply switch, quick fit and tool free connections.
1 x Floating water extraction unit
1 x 12m Roll of pressure hose

Dimensions

Length: 2450mm
Width: 2100mm
Height: 1015mm
Innen Ø dome shaft: 650mm

Features

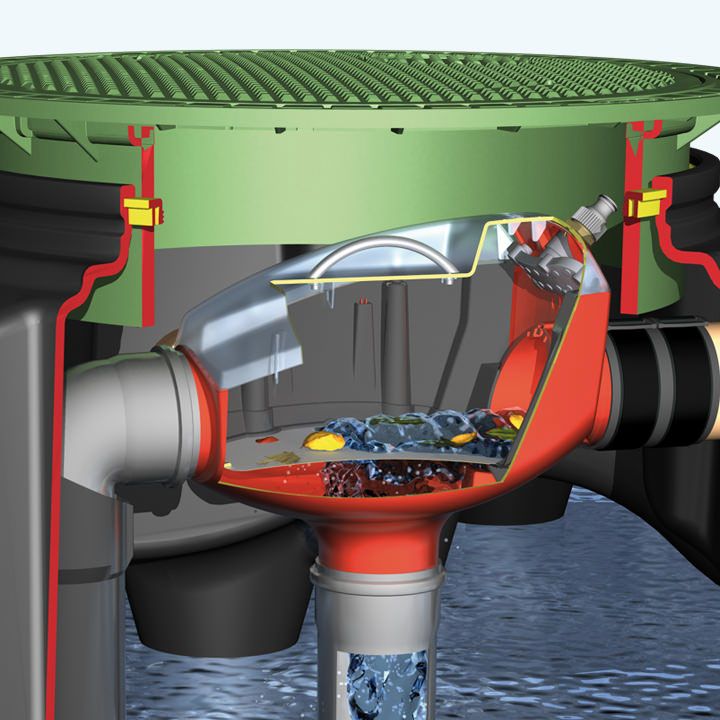

  • Self-cleaning integrated filter technology
  • Drinking water supply in the home
  • Controlled by floating switch
  • Easy to install due to modular components
  • Just one cover visible at the surface
  • Platin flat tank including 4 pre-fitted DN 100 lip seals
  • Mini telescopic dome shaft, can be walked on, with PE cover


House filter package consisting of:

  • Minimax-Pro internal filter (self-cleaning)
  • Steady inlet pot
  • Overflow siphon
  • Spannfix pipe connection sleeve


ECO-Plus technical package consisting of:

  • Drinking water feeding console 15/4
  • Floating water extraction unit
  • V2A switch control
  • Wall duct DN 100
  • Labelling set
  • PE suction pipe, 12 m

Product Documents
