Rainwater Harvesting Tank Low Profile 1500L Graf Platin Eco-Plus

Code:
G70369
Brand:
Free UK Delivery

This item is out of stock and not available to purchase.

Specially created for rainwater harvesting, this Platin flat rainwater tank from Graf has a 1500-litre capacity and offers a speedy and cost-effective installation process. This is thanks to the minimal installation depth, four pre-fitted DN 100 lip seals and quick-fit, tool-f...Read More

Create a wishlist

"Gutter Guard"

David Lusby

Description

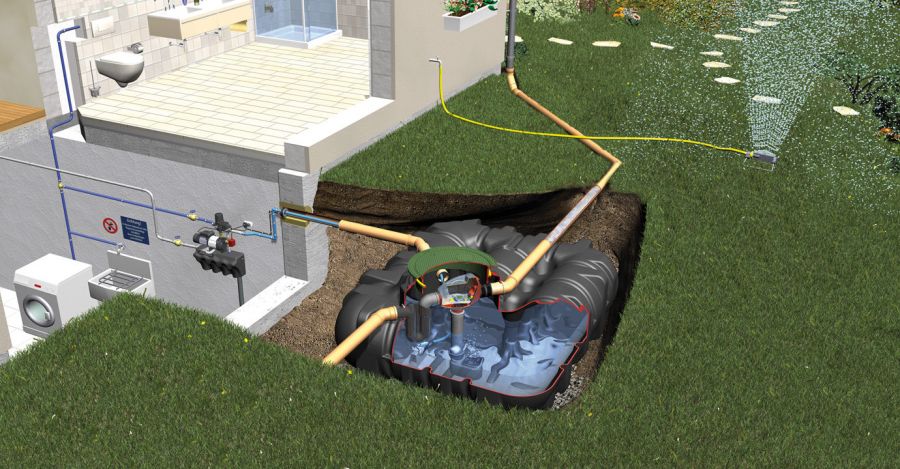

Specially created for rainwater harvesting, this Platin flat rainwater tank from Graf has a 1500-litre capacity and offers a speedy and cost-effective installation process. This is thanks to the minimal installation depth, four pre-fitted DN 100 lip seals and quick-fit, tool-free connections of the ECOsmart self-priming diaphragm pump.

With self-cleaning Minimax-Pro integrated filter technology, this tank features a House filter package with an internal Universal Filter 3, Inflow stilling system for controlling the water inflow. It also includes an overflow siphon, a rodent guard, a Spannfix connection sleeve and a steady inlet pot. This ensures that it can provide a drinking water supply for your home.

Features & Benefits: Rainwater Harvesting Tank Low Profile 1500L Graf Platin Eco-Plus

  • Mini telescopic dome shaft can be walked on, with PE cover
  • Four pre-fitted DN 100 lip seals
  • Subtle design with just one visible cover at the surface
  • Simple to install due to modular components
  • Controlled by floating switch
  • Drinking water supply
  • Self-cleaning integrated filter technology
  • 650mm Innen Ø dome shaft
  • 1015mm height

The ECO-Plus technical package comprises a 15/4 drinking water feeding console, a floating water extraction unit, a V2A switch control, a DN 100 wall duct, a labelling set and a 12m PE suction pipe.

Package Contents

  • 1 x Platin Tank
  • 1 x Green, Pedestrian loading, Telescopic Mini PE lid
  • 1 x Filter package 2 with internal Universal Filter 3, inflow stilling system
  • 1 x overflow siphon
  • 1 x rodent guard
  • 1 x Spannfix connection sleeve
  • 1 x self-priming diaphragm pump with three-way water supply switch
  • 1 x floating water extraction unit
  • 1 x 12m roll of pressure hose

Details

Profile Low Profile
