Polypipe Underfloor Heating Solid Floor Room Pack with Zonal Regulation Unit - 20m² OverlayTM is a unique low profile floor heating system ideal for both renovation and new build projects Installed over the existing floor and only 18mm in depth, OverlayTM a... Read More
Polypipe Underfloor Heating Solid Floor Room Pack with Zonal Regulation Unit - 20m²
Installed over the existing floor and only 18mm in depth, OverlayTM allows floor heating to be installed where traditional under floor systems would either require expensive excavation or would require the floor to be raised to an unacceptable level.
The OverlayTM system is available in 2 panel types to allow for installation to all build types and floor coverings.
OverlayTM panel is a fibrous panel used for heavyweight floor coverings such as ceramics, or where the floor covering needs to be secured directly to the panel, e.g. solid wood.
OverlayTM systems use a 12mm pipe at 150mm pipe centres and provide excellent response times and heat output compared with traditional built in under floor heating solutions and are therefore ideal for both traditional heating systems and low temperature renewable systems.
- See more at: http://www.polypipe.com/building-products/plumbing-heating/underfloor-heating/products/overlay#sthash.yThQuRSq.dpufInstalled over the existing floor and only 18mm in depth, OverlayTM allows floor heating to be installed where traditional under floor systems would either require expensive excavation or would require the floor to be raised to an unacceptable level.
The OverlayTM system is available in 2 panel types to allow for installation to all build types and floor coverings.
OverlayTM panel is a fibrous panel used for heavyweight floor coverings such as ceramics, or where the floor covering needs to be secured directly to the panel, e.g. solid wood.
OverlayTM systems use a 12mm pipe at 150mm pipe centres and provide excellent response times and heat output compared with traditional built in under floor heating solutions and are therefore ideal for both traditional heating systems and low temperature renewable systems.
- See more at: http://www.polypipe.com/building-products/plumbing-heating/underfloor-heating/products/overlay#sthash.yThQuRSq.dpufInstalled over the existing floor and only 18mm in depth, OverlayTM allows floor heating to be installed where traditional under floor systems would either require expensive excavation or would require the floor to be raised to an unacceptable level.
The OverlayTM system is available in 2 panel types to allow for installation to all build types and floor coverings.
OverlayTM panel is a fibrous panel used for heavyweight floor coverings such as ceramics, or where the floor covering needs to be secured directly to the panel, e.g. solid wood.
OverlayTM systems use a 12mm pipe at 150mm pipe centres and provide excellent response times and heat output compared with traditional built in under floor heating solutions and are therefore ideal for both traditional heating systems and low temperature renewable systems.
- See more at: http://www.polypipe.com/building-products/plumbing-heating/underfloor-heating/products/overlay#sthash.yThQuRSq.dpufInstalled over the existing floor and only 18mm in depth, OverlayTM allows floor heating to be installed where traditional under floor systems would either require expensive excavation or would require the floor to be raised to an unacceptable level.
The OverlayTM system is available in 2 panel types to allow for installation to all build types and floor coverings.
OverlayTM panel is a fibrous panel used for heavyweight floor coverings such as ceramics, or where the floor covering needs to be secured directly to the panel, e.g. solid wood.
OverlayTM systems use a 12mm pipe at 150mm pipe centres and provide excellent response times and heat output compared with traditional built in under floor heating solutions and are therefore ideal for both traditional heating systems and low temperature renewable systems.
- See more at: http://www.polypipe.com/building-products/plumbing-heating/underfloor-heating/products/overlay#sthash.yThQuRSq.dpufInstalled over the existing floor and only 18mm in depth, OverlayTM allows floor heating to be installed where traditional under floor systems would either require expensive excavation or would require the floor to be raised to an unacceptable level.
The OverlayTM system is available in 2 panel types to allow for installation to all build types and floor coverings.
OverlayTM panel is a fibrous panel used for heavyweight floor coverings such as ceramics, or where the floor covering needs to be secured directly to the panel, e.g. solid wood.
OverlayTM systems use a 12mm pipe at 150mm pipe centres and provide excellent response times and heat output compared with traditional built in under floor heating solutions and are therefore ideal for both traditional heating systems and low temperature renewable systems.
- See more at: http://www.polypipe.com/building-products/plumbing-heating/underfloor-heating/products/overlay#sthash.yThQuRSq.dpufDetails
Heating Area - 20m²
Control Type - ZRU Control
Maximum Heat Output - approx. 100W/m²
Recommended Flow Temperature - 50°C
Maximum Circuit Length - 100m (15mm pipe) 120m (18mm pipe)
Maximum Coverage Per Circuit - 11.1m² (100mm centres) 21.2m² (200mm centres) 30m² (300mm centres)
Description

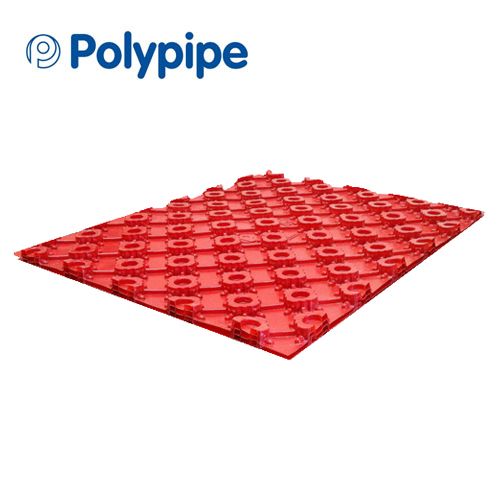

Polypipe underfloor heating in solid or screeded floors incorporates the unique Polypipe screeded floor panel. The lightweight plastic floor panels nest for easy storage and carrying.
Polypipe has the perfect solution for installing underfloor heating into solid or screeded floors. Utilising our unique lightweight plastic floor panels, which are quick and easy to cut to size, it is possible to fit Polypipe underfloor heating into any shaped room.

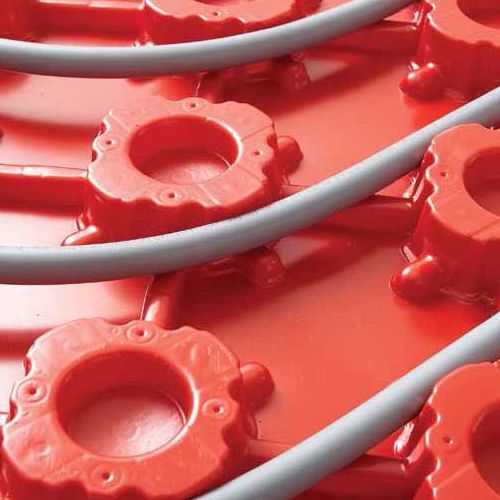

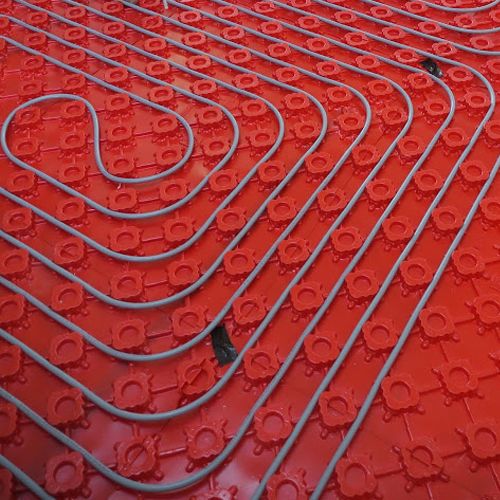

Polypipe solid floor panels form a simple grid to ensure the fastest possible pipe laying and also provide a precise guide for the pipe, ensuring that the minimum pipe bending radius is achieved. The panels are laid above pre-installed insulation and the system includes edging insulation strip to ensure maximum performance and efficiency.
Polypipe underfloor heating systems can be used with the following solid floor constructions:
Sand and cement screed (4:1 mix)
Pumped screed systems (anhydrite, etc.)
Fine or heavy concrete
Polymer modified screeds
Guarantee
Polypipe underfloor heating products, excluding manifolds and control products, are covered by a 50 year Guarantee, which protects against defects in materials or manufacture of the heating system from date of purchase.
This guarantee only applies if the system is installed in accordance with the manufacturer’s recommendations, and is used in a normal domestic operation.
Pack Contents
20 x Screeded Foor Panels (PB08576)
2 x 15mm x 100mm UFH pipe coil (UFH10015B)
1 x Edge Insulation (PB05855)
1 x Pipe Stiffeners pack of 50 (PB6415)
2 x 15mm Polyplumb Tees (PB215)
2 x 15mm Spigot Elbows (PB1015)
1 x ZRU Zonal Regulation Unit (PB970028)
