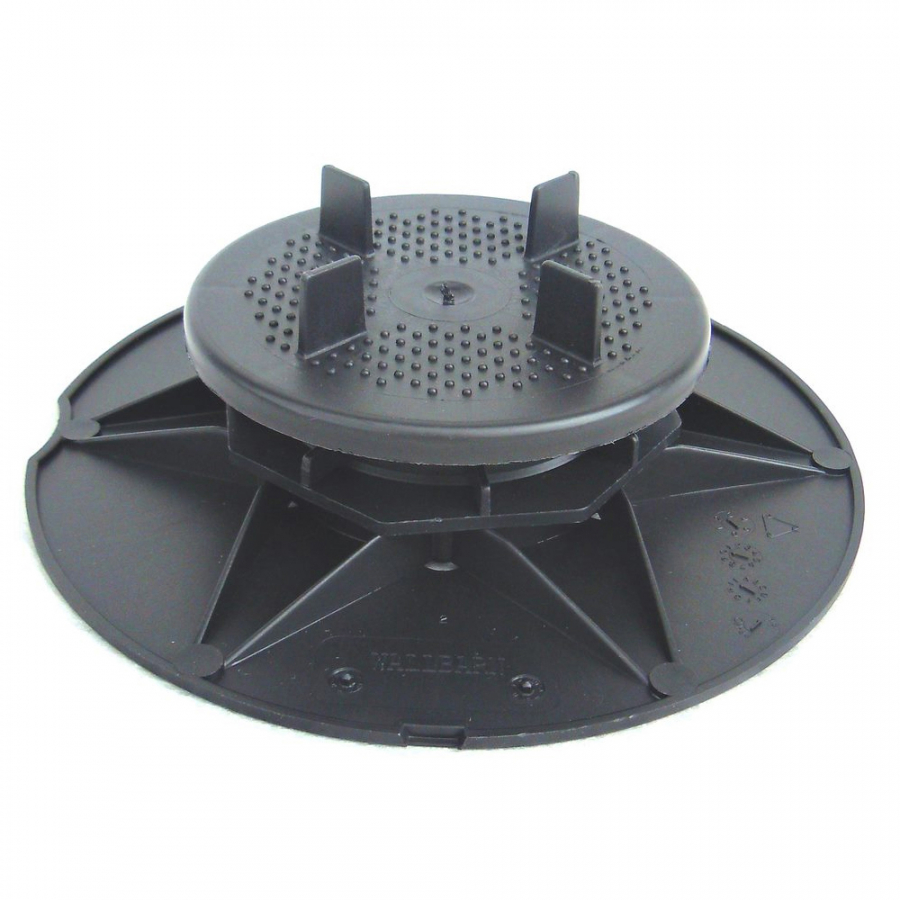

Wallbarn ASP Adjustable Paving Pedestal - 35mm to 50mm

Code:
SP-ASP-035-Z
Brand:
Free UK Delivery

ASP pedestals are easy to adjust to the correct level by using the wind-to-adjust telescopic stem that can be set to the correct millimetre height. By carefully adjusting the stem, a completely flat paving surface can easily be achieved with minimum fuss. The pedestal includes...Read More

Create a wishlist

"Excellent from start to Finnish"

Stephen thatcher

Description

ASP pedestals are easy to adjust to the correct level by using the wind-to-adjust telescopic stem that can be set to the correct millimetre height. By carefully adjusting the stem, a completely flat paving surface can easily be achieved with minimum fuss. The pedestal includes positioning lugs, allowing paving slabs to be simply placed on top at straight angles that also allow for drainage into the cavity below. Even roofs that are flat are built with small falls for drainage, and here, rainwater that would usually collect on the top instead runs in between and below the slabs. This cavity under the top level paving creates a ventilated space that also allows plumbing or electrical building services to be organised within.

This product comes in heights between 35mm-380mm. A durable polypropylene composition can withstand low temperatures with no loss of integrity and can hold around one tonne of weight per pedestal. This product’s compressive strength has been validated by CATAS at heats of -40°C to +20°C.

Slabs placed on the pedestal hold the fitting together while specific height adjustments can be made after installation, affording you great savings on labour and timeframes.
Different lug sizes are available, along with levelling shims, slope correctors and accessories that are designed for ease use with the pedestals.

Specification

Material: Virgin fibre injection moulded polypropylene
Weight Tolerance: Maximum Load 11,493 N = 1,171kg
End of Linear Behaviour at: 6,700N = 683kg
Max Temperature: Plus 75°C
Min Temperature: Minus 40°C
Base Plate Diameter: 200mm or 150mm
Headpiece Diameter: 120mm
Lug Dimensions: 2.2 x 18mm, 4 x 18mm, 6 x 18mm, 8 x 18mm, 10 x 18mm, 2.2 x 10mm
