MEADRAIN EN1000.0 Inc. Iron Slotted PROFIX Grates 1m - F900

Product Code:
Est. Delivery: 3-5 Working Days
Shipping costs displayed in basket.
We can let you know when this product is back in stock.

This product is proving to be very popular and has unfortunately sold out.

Enter your email below and we'll notify you as soon as this product is back in stock:

Subject to stock availability, if products on a 24 hours service are ordered alongside products NOT on a 24 hours service, this may delay your whole order.

View Transport Policy

All delivery charges are included in the final shopping basket and are dependent on the products Scottish Highlands & the Islands where additional shipping charges will apply.

Please note that not all products will incur an additional delivery charge to the Scottish Highlands & the Islands – this is based on the costs from the manufacturer, distributor or courier providing shipping on our behalf. If your delivery address is in the Scottish Highlands and Islands, a member of our helpline team will contact you prior to processing your order should an additional delivery charge apply.

While we make every effort to ensure orders are delivered by the date required, we cannot guarantee availability from the manufacturer or the manufacturer's delivery schedules.

Any variation to web delivery date given will be advised to you by email or telephone. If we are unable to make delivery because access is not possible, we reserve the right to make a failed delivery charge.

£75.60 Incl. VAT
Oops! Please select from the options

Product Description

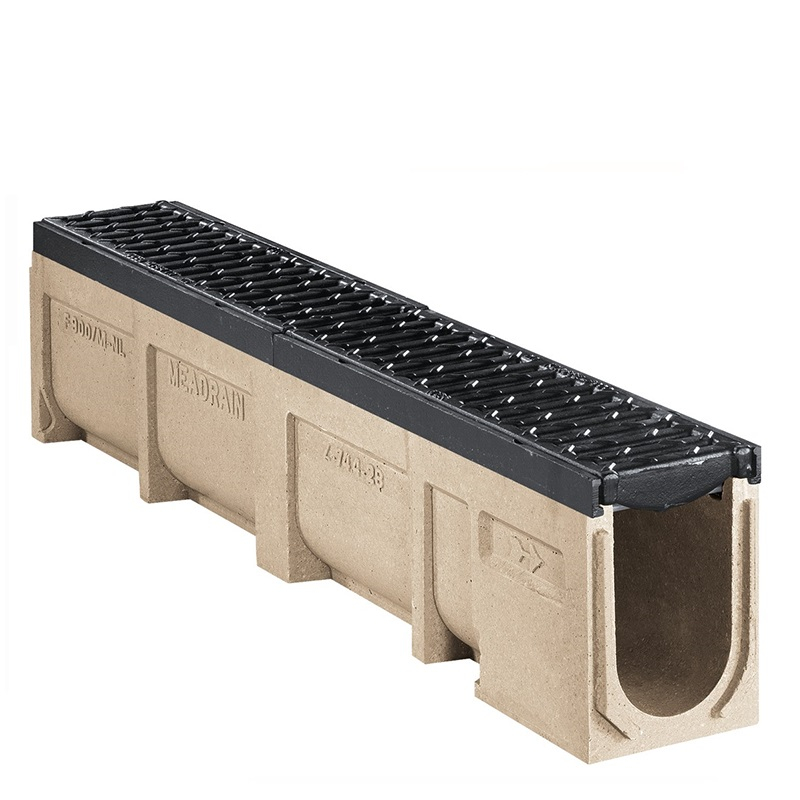

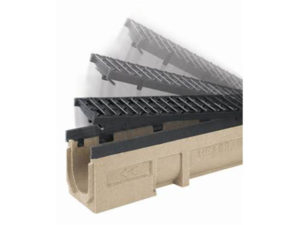

The MEADRAIN EN series of channel drains feature a cast iron frame with an L-shape edge and are manufactured from a low weight polymer concrete that can withstand very heavy loads. Insert your PROFIX grating by pressing it into the channel body. The grate will lock into position by itself through the integrated 4-point spring-steel locking system. To remove, use a standard screwdriver and apply leverage, and it will pop out.

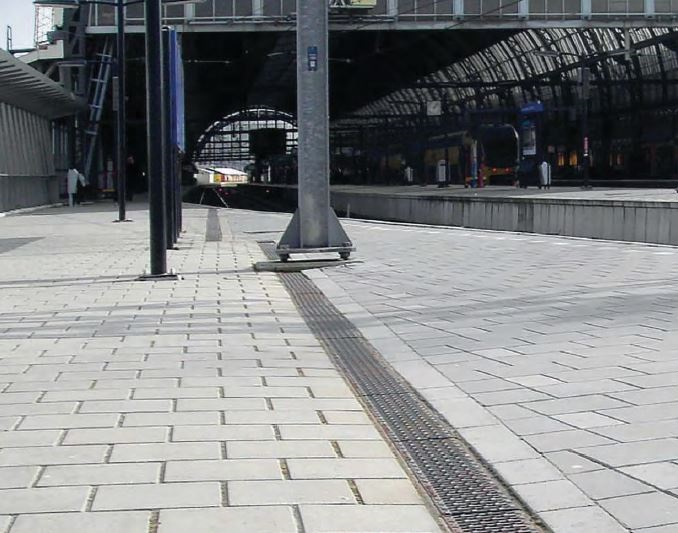

The MEADRAIN EN system has been developed as a drainage solution to the more challenging environments such as airports, cargo areas, ports, industrial buildings, and railway stations. These drainage systems have an extremely long lifespan whilst maintaining high resistance to chemical substances.

Features & Benefits: MEADRAIN EN1000.0 Inc. Iron Slotted PROFIX Grates 1m - F900

  • Designed for very heavy loads
  • Suitable for airports, railway stations and industrial buildings
  • High quality polymer concrete with integrated side ribs for perfect anchoring in the concrete bed
  • Perfectly frost resistant, wear-free and almost maintenance free
  • Modular lightweight construction

Product Specification

  • Length: 1000mm
  • Clear Width: 100mm
  • Total Width: 140mm
  • Loading Class: F900
  • Grate Material: Cast Iron
  • Channel Material: Concrete

Product Documents


WIDTH 140mm LENGTH 1000mm


Material Cast Iron
Weight Class F900
