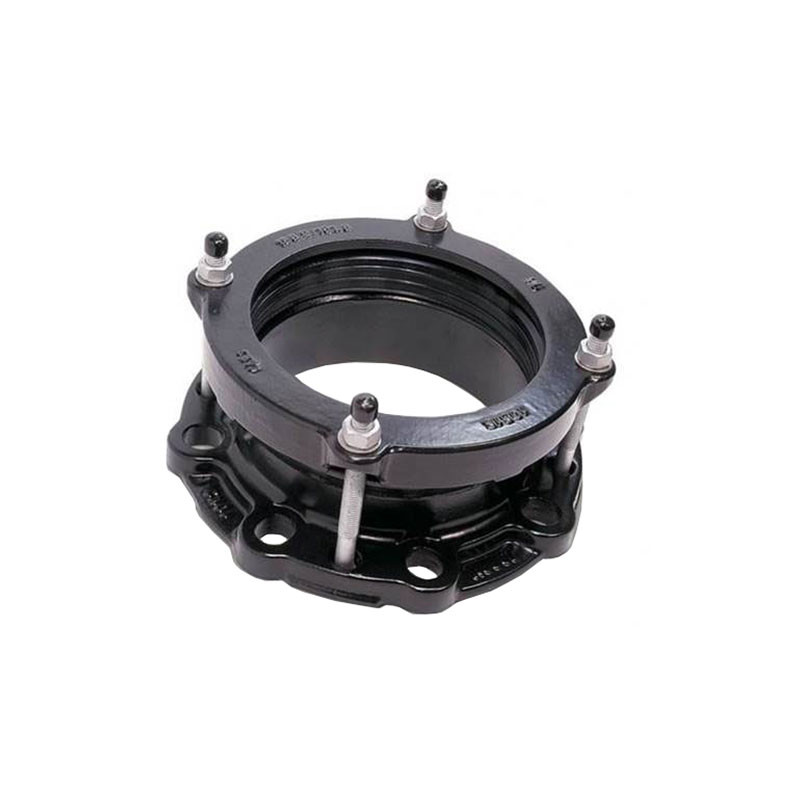

Viking Johnson Pipe Repair Flange Adaptor (MaxiDaptor) - 315 to 349mm

Code:
259943
Brand:
Free UK Delivery

The MaxiDaptor Flange Adaptor has been designed with an extended sealing face. Able to accommodate angularity between pipes, the MaxiDaptor allows for normal pipeline movement caused by to ground settlement. Flange adaptors have a total angular deflection of 3°. All cast... Read More

Create a wishlist

"The Sewage treatment plant was…"

Peter Baillie

Description

The MaxiDaptor Flange Adaptor has been designed with an extended sealing face. Able to accommodate angularity between pipes, the MaxiDaptor allows for normal pipeline movement caused by to ground settlement.

Flange adaptors have a total angular deflection of 3°.

All cast flanges have multi drilling including; BS EN 1092-1, ISO 7005 1:1992, (PN10/16), BS10: 1962 (Table ADE), ANSI/AWWA.

Compatible pipe materials include:

  • Steel
  • Stainless Steel
  • Ductile Iron
  • Cast Iron
  • PVC
  • Concrete
  • Copper

A rigorous bolt torque test is completed to confirm that the bolt, end ring and adaptor body are capable of withstanding bolt over-tightening to 1.5 times maximum recommended torque.

Features & Benefits

  • Wide tolerances permit lower stock holding
  • All models accommodate angularity between pipes which allows for normal pipeline movement caused by ground settlement.
  • Simple to install
  • Flexible fit

Product Specification

Size: 300mm
Size Range: 315 - 349mm
Diameter: 457.8mm
Overall Length: 155mm
Weight: 14.8kg

Details

Diameter
315mm - 349mm
