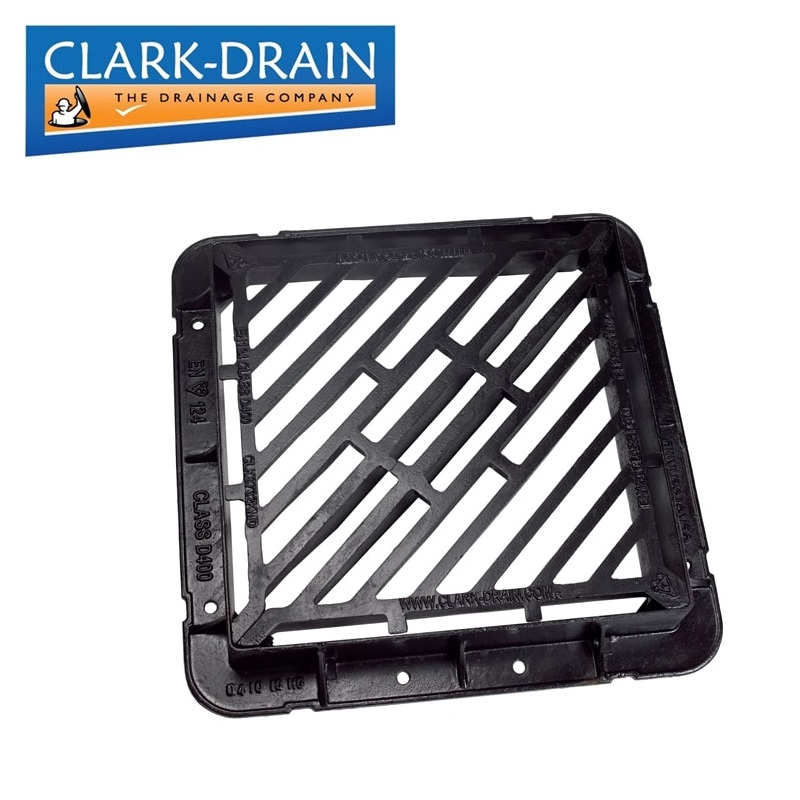

Clark Drain D400 Class Cast Iron Manhole Gully Grid and Frame 600 x 600 x 100mm

Code:
CD 732H KMD

Perfect for installation in carriageway kerbside areas and commercial/industrial areas, this Clark Drain Cast Iron Double Triangular Kerbside Gully Grid and Frame has a D400 rating, meaning it can withstand 40-tonne test loads. Featuring a double-tri non-rock three-point suspen...Read More

£220.00 Incl. VAT
Oops! Please select from the options
Est. Delivery: 5-7 Working Days
Shipping costs displayed in basket.
We can let you know when this product is back in stock.

This product is proving to be very popular and has unfortunately sold out.

Enter your email below and we'll notify you as soon as this product is back in stock:

For delivery Monday, Apr 29th - order in:
days hrs mins secs
Subject to stock availability, if products on a 24 hours service are ordered alongside products NOT on a 24 hours service, this may delay your whole order.
View Transport Policy

All delivery charges are included in the final shopping basket and are dependent on the products Scottish Highlands & the Islands where additional shipping charges will apply.

Please note that not all products will incur an additional delivery charge to the Scottish Highlands & the Islands – this is based on the costs from the manufacturer, distributor or courier providing shipping on our behalf. If your delivery address is in the Scottish Highlands and Islands, a member of our helpline team will contact you prior to processing your order should an additional delivery charge apply.

While we make every effort to ensure orders are delivered by the date required, we cannot guarantee availability from the manufacturer or the manufacturer's delivery schedules.

Any variation to web delivery date given will be advised to you by email or telephone. If we are unable to make delivery because access is not possible, we reserve the right to make a failed delivery charge.

Create a wishlist

"Very good service"

Tony

Description

Perfect for installation in carriageway kerbside areas and commercial/industrial areas, this Clark Drain Cast Iron Double Triangular Kerbside Gully Grid and Frame has a D400 rating, meaning it can withstand 40-tonne test loads.

Featuring a double-tri non-rock three-point suspension grating design, this product is constructed from Spheroid Graphite Iron Grade EN-GJS-500-7 and features a temporary bitumen-based paint coating.

Features & Benefits: Clark Drain D400 Class Cast Iron Manhole Gully Grid and Frame 600 x 600 x 100mm

  • Perfect for installation in carriageway kerbside areas and commercial/industrial areas
  • D400 rating, withstands 40-tonne test loads
  • Double-tri non-rock three-point suspension grating design
  • 100mm depth
  • 2.10N/mm² Bearing Area
  • 2203cm² Waterway Area
  • R Grating Type (as per HA102/00)
  • 600mm x 600mm clear opening and 748mm x 748mm overall size
  • 68kgs weight
  • HA102/00 Grating Type P

Standards & Certification

  • Spheroid Graphite Iron Grade EN-GJS-500-7 to BS EN 1563;2011
  • Temporary Bitumen-based paint coating to BS 3416;1991
  • BSI Kitemark Certified to BS EN124 D400
  • Compliant to the design requirements of the UK Highways Agency DMRB HA104/09 for Gully Tops

Dimensions

Length 415mm
440mm
600mm
Depth 100mm Width 600mm

Details

Material Cast Iron Product Type Gully Grid and Frame Shape Square Weight Class D400
Profile Grid Internal Dimensions 600mm x 600mm External Dimensions 750mm x 750mm Use Location High Traffic
Highways
Main Roads
Public Car Parks
Load-Bearing Strength 40 Tonnes
