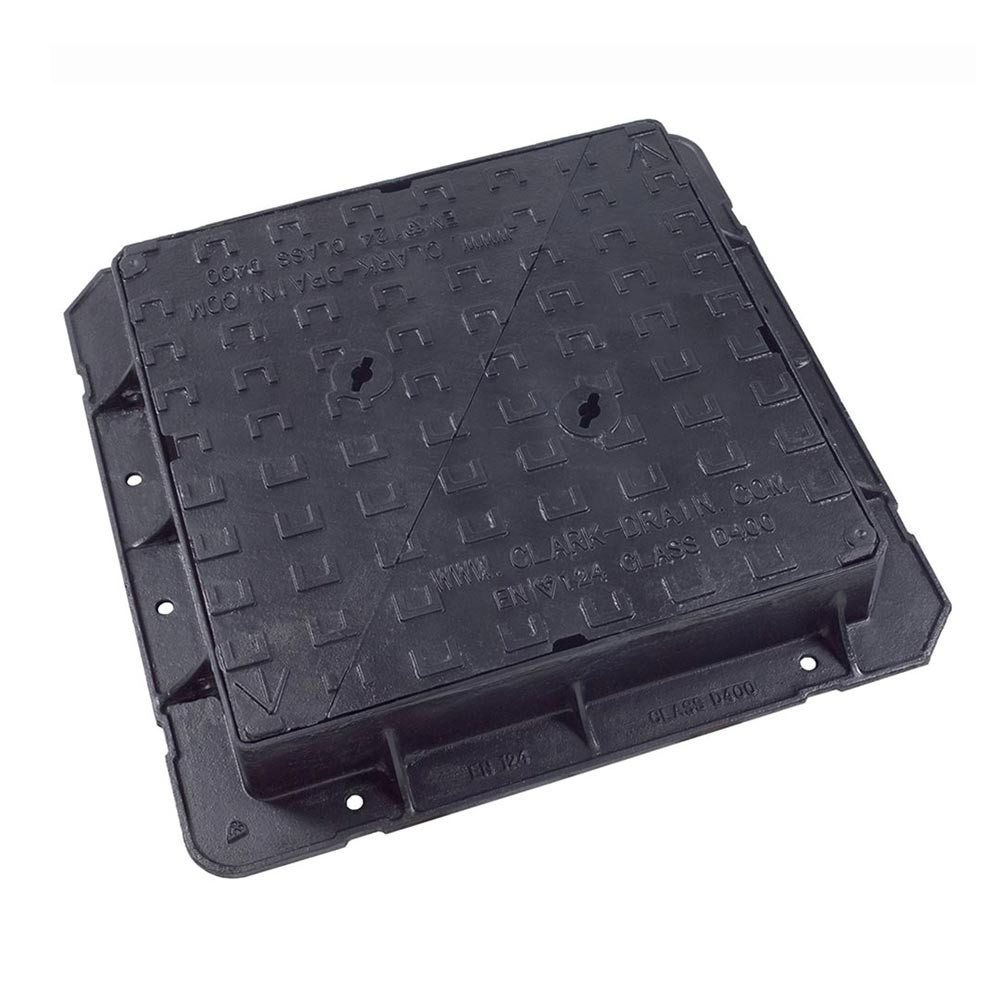

Clark Drain D400 Class Cast Iron Manhole Cover and Frame 600mm x 600mm x 100mm

Code:
CD 701H KMD

This robust Clark Drain Cast Iron Manhole Cover and Frame is engineered for the tough demands of highways and carriageways in commercial or industrial areas. This heavy-duty solution is primed to handle D400 loading up to 40 tonnes, ensuring reliable performance even in high-t... Read More

£179.55 Incl. VAT
Earn points

SUPER Rewards Earn points and build more across our SUPERSTORES!

Find out more
Oops! Please select from the options
Est. Delivery: TBC
Shipping costs displayed in basket.
We can let you know when this product is back in stock.

This product is proving to be very popular and has unfortunately sold out.

Enter your email below and we'll notify you as soon as this product is back in stock:

Create a wishlist

"As good as it gets."

Phil

Description

This robust Clark Drain Cast Iron Manhole Cover and Frame is engineered for the tough demands of highways and carriageways in commercial or industrial areas. This heavy-duty solution is primed to handle D400 loading up to 40 tonnes, ensuring reliable performance even in high-traffic areas. Featuring integral keyholes, it is compatible with CLKS 552 lifting keys.

Certified to the rigorous standards of BS EN124:1994 and boasting the trusted BSI Kitemark, this product offers exceptional quality and durability. Its double-triangular solid top design guarantees superior strength, while the sleek black bitumen coating adds an extra layer of protection against the elements.

Features & Benefits: Clark Drain D400 Class Cast Iron Manhole Cover and Frame 600mm x 600mm x 100mm

  • Ideal for highways/carriageway use
  • D400 loading capacity with up to 40-tonnes load-bearing strength for heavy traffic areas
  • Integral lifting keyholes, compatible with CLKS 552 lifting keys
  • Double-triangular solid top for added strength
  • Black bitumen coating for enhanced durability
  • Non-rock three-point suspension cover
  • 45+ Polished Skid-Resistance Value (PSRV)
  • 4.1N/mm² frame pressure bearing area
  • 26kg covers weight (pair) and 62kg overall weight
  • 746mm (L) x 746mm (W) x 100mm (H) external dimensions and 600mm x 600mm clear opening

Standards & Certification

  • Spheroid Graphite Iron Material: Grade EN-GJS-500-7 to BS EN 1563: 2011
  • Temporary Bitumen-based paint coating: to BS 3416: 1991
  • BSI Kitemark: Certified to BS EN124 2015
  • Compliant with Design Requirements: Highways Agency DMRC CD 534

Dimensions

Length
600mm
Depth
100mm
Width
600mm
900mm

Details

Material
Cast Iron
Product Type
Manhole Cover and Frame
Weight Class
D400
Profile
Solid Top
Internal Dimensions
600mm x 600mm
Use Location
High Traffic
Highways
Main Roads
Public Car Parks
Load-Bearing Strength
40 Tonnes
