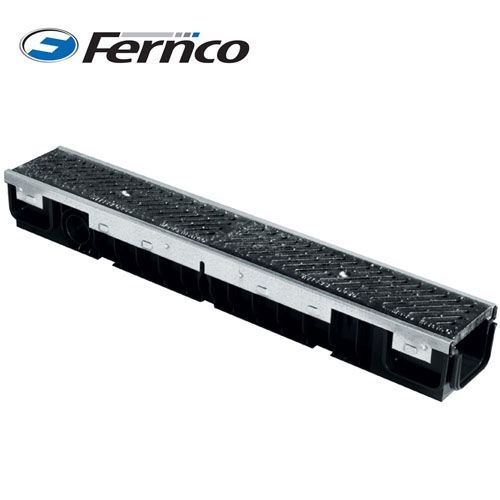

Low Profile Channel Drain 1m With Heelguard Grate - C250 Weight Class

Code:
FTCC25010075
Brand:

This item is out of stock and not available to purchase.

Dimensions Length: 1mGrate Width: 130mmInternal Width: 105mmTotal Depth: 124mm Grate Depth: 20mm Internal Depth: 75mmTotal Width: 150mm Description The Fernco Storm Drain Plus is a unique and easy to install surface water channel drainage system for a domestic environment. ... Read More

Create a wishlist

"Great service"

PETER MACE

Description

Dimensions

Length: 1m
Grate Width: 130mm
Internal Width: 105mm
Total Depth: 124mm
Grate Depth: 20mm
Internal Depth: 75mm
Total Width: 150mm

Description

The Fernco Storm Drain Plus is a unique and easy to install surface water channel drainage system for a domestic environment.

It provides a complete and long-term solution for the collection and dispersal of surface water through the unique channel drainage system. The channel drain is available in 1m lengths and can be combined with a range of accessories, aiding installation and providing connection into mains drainage.

Fernco Storm Drain Plus has been produced in accordance with the BS EN ISO9001 quality standard and manufactured to the BS EN 1433 standard in order to comply with regulations.

Possible Accessories

  • End Cap - Allows you to securely seal the upstream end of a pipe
  • Jointing Clip - For the secure connection of two cut channels
  • End Outlet - To connect into a 100mm or 110mm pipe
  • Sump Unit - This product includes a silt basket and integral water trap to prevent         odours.
  • Available in black plastic or galvanised steel heelguard grates
  • Quad Connector - An easy corner or T-junction connector available in black plastic or galvanised steel

Benefits

  • The flexibility of three base outlets
  • Quality aesthetics
  • The ease of the connection system
  • The efficiency of the quad connector
  • The security of BS EN 1433: Load Class A15
  • The safety of a heelguard grate
  • Recycled and recyclable base material
  • Labour saving quad connector
  • Cross-braced design prevents floating
  • Lightweight polypropylene, with a high impact strength at hot and cold temperatures

Applications

Fernco Storm Drain Plus can be installed around any domestic area where surface water collects including:

  • Patios and conservatories
  • Driveways
  • Swimming pools
  • Pathways
  • Sports courts
  • Retaining walls
  • Gardens

Dimensions

Length
1m
Depth
124mm
Width
150mm

Details

Material
Plastic
Product Type
Channel Base and Grate
Features
Shallow Channel
Load Rating
C250
