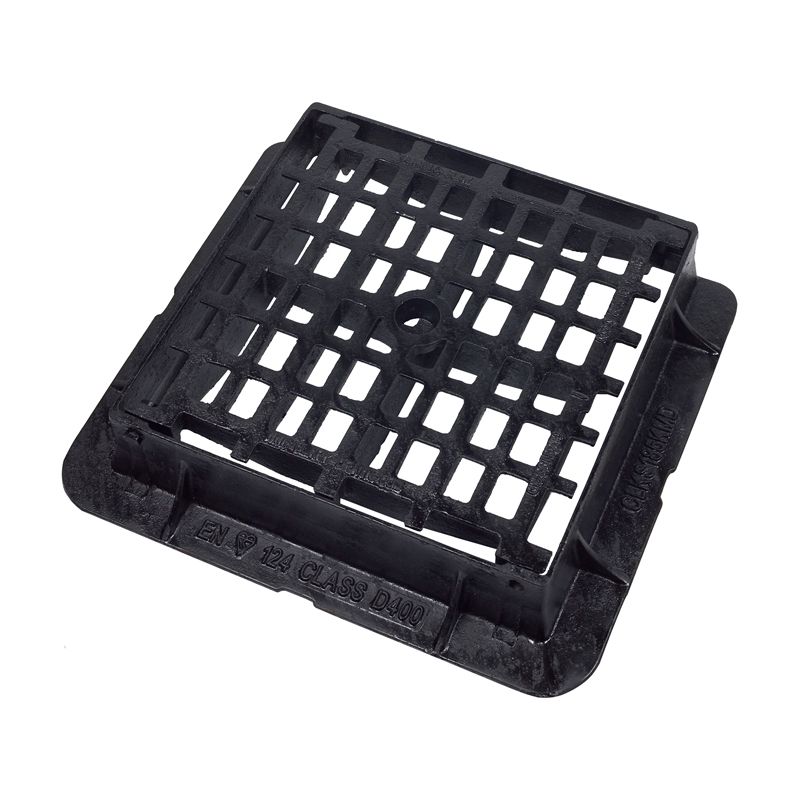

Kerbside Gully Grid and Frame 452L x 452W x 100H Cast Iron -D400 Class

Code:
CD 185 KMD DUP

This item is out of stock and not available to purchase.

Product Features Grate: Mesh. HA102/00 Grating Type R Frame: 3 sided flange for kerbside application. Non-rock Taper-Lock wedge seating. Hinge: Anti-theft captive end hinge. Reversible prior to installation. Material: Ductile Iron Finish: Black bitumen coating. Suitable for: ...Read More

Create a wishlist

"Wooden stakes"

Jim

Description

Product Features

Grate: Mesh. HA102/00 Grating Type R
Frame: 3 sided flange for kerbside application. Non-rock Taper-Lock wedge seating.

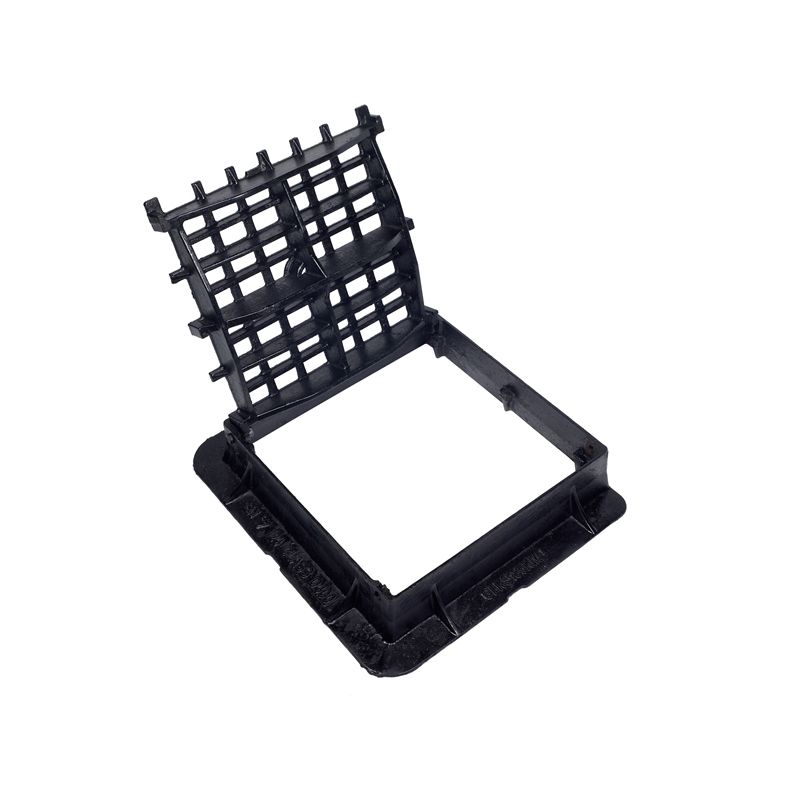

Hinge: Anti-theft captive end hinge. Reversible prior to installation.
Material: Ductile Iron
Finish: Black bitumen coating.
Suitable for: Pedestrian areas and cycle routes. One-way streets and roundabouts.

Dimensions

External Dimensions: 592 (L) x 538 (W) x 100 (H)
Clear Opening: 452 (L) x 452 (W)
Water Way Area: 996cm2

Dimensions

Length 452mm Width 452mm

Details

Material Cast Iron Product Type Gully Grid Cover Shape Square Weight Class D400
