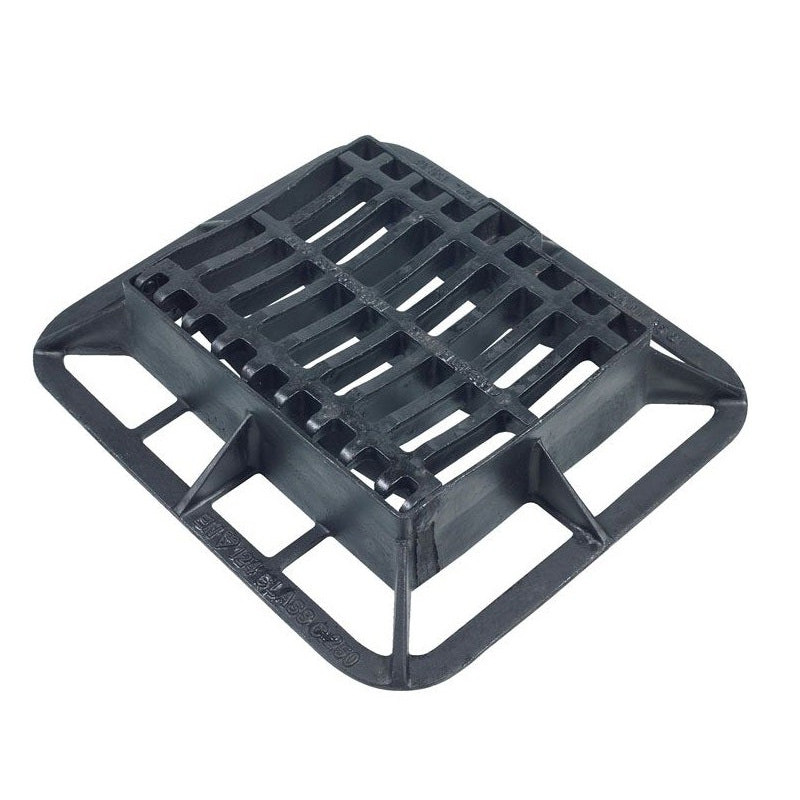

Clark Drain C250 Class Cast Iron Hinged Dished Channel Gully Grate 390 x 315 x 100mm

Product Code:
CD 131DL KMC
Brand:
Est. Delivery: TBC*

* COVID-19: Due to supplier issues this product isn't currently available to purchase.

£65.15 Incl. VAT
£54.29 Ex. VAT
Oops! Please select from the options

Product Description

Product Group: Ductile Iron Kitemark Gully Grates & Frames
Sub-Category: C250 Hinged Dished Gully Grates & Frames
Material Grade/s: Spheroid Graphite Iron Grade EN-GJS-500-7 to BS EN1563:1997. Temporary Bitumen-based paint coating to BS 3416.
Weight: 29kgs

Frame Pressure

Bearing Area: 3.02N/mm2
Waterway Area: 746cm2
Load Rating Classification: C250 (25 tonnes)

Features

BSI Kitemark Certified to BS EN124:1994 (copy certificate available upon request)
Captive hinge design to deter thieves
“Taper-Lock” grating to ensure non-rocking design
Dished grating design to enable use with matching concrete drainage channels
Supplied complete with locking screw for added security

Cast iron drain grate dimensions

External Dimensions: 590 (L) x 520 (W) x 100 (H)
Clear Opening: 390 (L) x 315 (W)
Water Way Area: 746cm2

Product Documents

Dimensions

Width 315mm Length 390mm

Details

Product Type Gully Grid Cover Weight Class C250 Material Cast Iron Shape Rectangular
