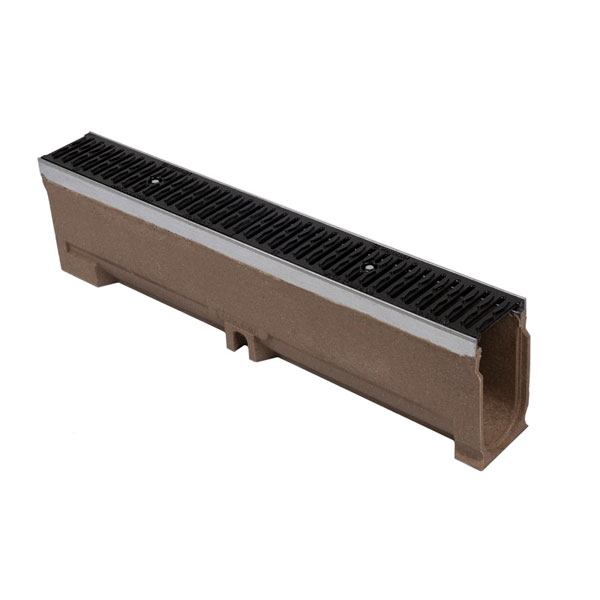

Clark Drain D400 Heelguard Channel Drain 1000mm x 131mm x 247mm

Product Code:
CD D10-L20G-27
Est. Delivery: 15-20 Working Days
Shipping costs displayed in basket.
We can let you know when this product is back in stock.

This product is proving to be very popular and has unfortunately sold out.

Enter your email below and we'll notify you as soon as this product is back in stock:

Subject to stock availability, if products on a 24 hours service are ordered alongside products NOT on a 24 hours service, this may delay your whole order.

View Transport Policy

All delivery charges are included in the final shopping basket and are dependent on the products Scottish Highlands & the Islands where additional shipping charges will apply.

Please note that not all products will incur an additional delivery charge to the Scottish Highlands & the Islands – this is based on the costs from the manufacturer, distributor or courier providing shipping on our behalf. If your delivery address is in the Scottish Highlandsand Islands, a member of our helpline team will contact you prior to processing your order should an additional delivery charge apply.

While we make every effort to ensure orders are delivered by the date required, we cannot guarantee availability from the manufacturer or the manufacturer's delivery schedules.

Any variation to web delivery date given will be advised to you by email or telephone. If we are unable to make delivery because access is not possible, we reserve the right to make a failed delivery charge.

£77.42 Incl. VAT
£64.52 Ex. VAT
Oops! Please select from the options

Product Description

External Dimensions: 1000 (L) x 131 (W) x 247 (H)
Clear Opening: 1000 (L) x 100 (W) x 232 (H)
Channel & Grate: Polymer concrete with galvanised steel edge rails. Knockout section for vertical outlet (optional). Locking bar slots. 2 x 500mm ductile iron narrow slot grates.
Finish: Ductile iron grates are coated with black bitumen.
Locking: 2 locking bars & bolts fitted.
Pre-Sloped Option: Not available. Constant depth only.


  • Building Entrance
  • Car Parks
  • Schools,Colleges and Universities
  • Pedestrian Precincts
  • Private Housing Estates
  • Shared Driveways
  • Communal Parking Areas
  • Railway Platforms

Product Documents


Width 131mm Length 1000mm


Depth 247mm Material Concrete Weight Class D400 Grate Design Features Heelguard Grate Grate Material Ductile Iron
