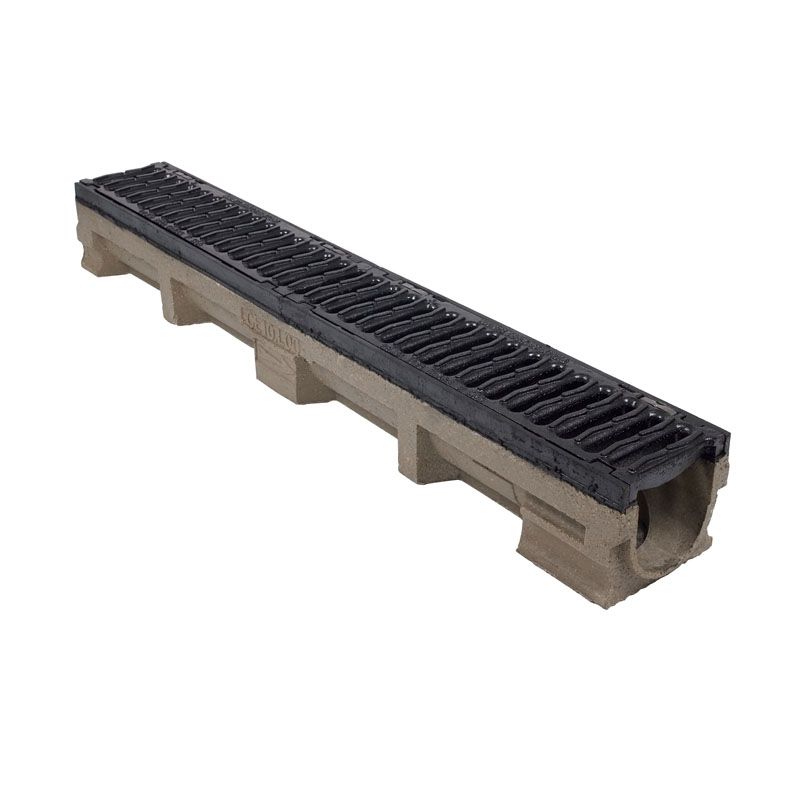

Heavy Duty Channel Drain Iron Grate 1000mm x 142mm x 187mm - F900

Code:
CD F10-L10C-63
Free UK Delivery

This item is out of stock and not available to purchase.

External Dimensions: 1000 (L) x 142 (W) x 187 (H) Clear Opening: 1000 (L) x 100 (W)Channel & Grate: Polymer concrete with ductile iron edge rails. Knockout section for vertical outlet (optional). 2 x 500mm ductile iron slotted grates. Finish: Ductile iron grates and edge r...Read More

Create a wishlist

"Delivery arrived on time"

Consumer

Description

External Dimensions: 1000 (L) x 142 (W) x 187 (H)
Clear Opening: 1000 (L) x 100 (W)
Channel & Grate: Polymer concrete with ductile iron edge rails. Knockout section for vertical outlet (optional). 2 x 500mm ductile iron slotted grates.
Finish: Ductile iron grates and edge rails are coated with black bitumen.
Locking: Catchlock clips fitted.
Pre-Sloped Option: Pre-sloped channels (# 001 to 020) incorporate a fall of 0.6% (6mm over 1mtr).

Applications

  • Airports
  • Loading Bays
  • Industrial Sites
  • Service Stations
  • Service Yards

Dimensions

Length 1m Depth 187mm Width 142mm

Details

Material Concrete Weight Class F900 Grate Design Features Slotted Grate
