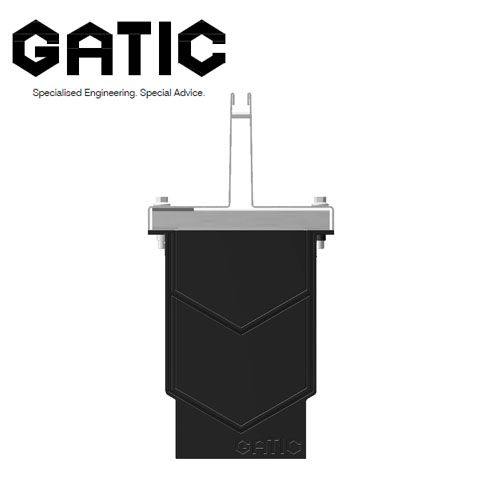

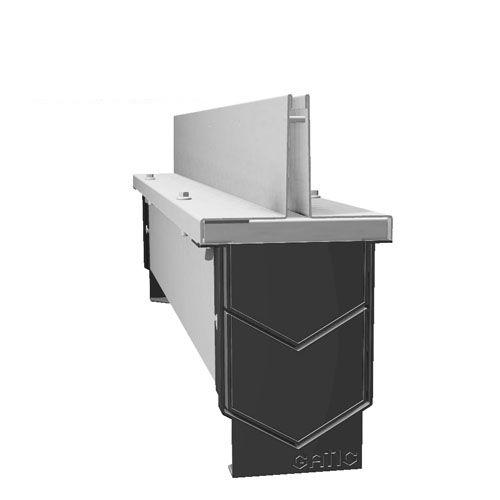

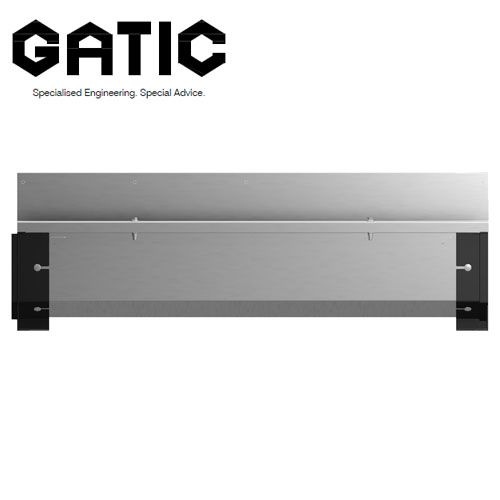

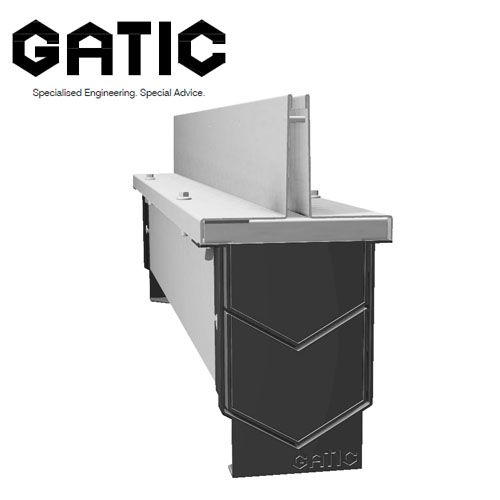

Gatic ProSlot Pave 150 Drain Channel - 1m Dimensions Depth: 336mm Throat Depth: 124mm Invert: 306mm Slot Orifice: 10mm Width: 170mm Intake Area: 10,000mm2 Weight: 15kg Load Rating: D400 Gatic’s core business has traditionally been driven by its success in ...Read More
Gatic’s core business has traditionally been driven by its success in meeting the heavy linear drainage demands of the world’s major air and sea ports. In fact, Slotdrain’s unique channel drainage profile was originally developed in conjunction with leading construction industry professionals from the airport sector.
The concept has, however, proved infinitely scalable and has now been developed into a comprehensive range of products allowing its benefits to be spread to smaller projects such as landscaping schemes, shopping developments and parking facilities.
Slotdrain’s continuous intake slot is the only outward indication of the highly efficient surface water drainage system that lies just out of sight.
Flat-based feet at the ends of each Slotdrain section make it easy to anchor them in the trench and allow a single block of concrete to be poured under and around the main body of the channel, maximising overall strength and integrity. Single piece channels up to 3 metres in length mean fewer joints.
Slotdrain keeps the below ground pipework to a bare minimum, reducing the need for small bore channel drains and maintenance. Gentle curves are easily achieved and tighter radii can be accommodated with the use of optional 1 metre or 500mm lengths.
rainwater flow control
Installation as a single unit increases speed and ease of installation. Precision manufactured from galvanised sheet steel, Slotdrain is impact resistant and has a high quality finish.
A primary feature of our Slotdrain design is its unique profile, which enables it to handle large or small quantities of water with similar high efficiency. Flow regulation is achieved by means of endplates with orifices sized to suit the application and positioned to avoid restriction in normal flow conditions. Our design software enables systems to exactly match permissible discharge rates at each site. This feature can be particularly useful on sloping sites, where water can be retained at any level, thus avoiding local flooding in the discharge area.
Gatic Slotdrain fully complies with BS EN 1433:2002 – Drainage for vehicular and pedestrian areas, and has been comprehensively load tested. Water tightness has been tested to BS EN1433 and is BSI certified.
