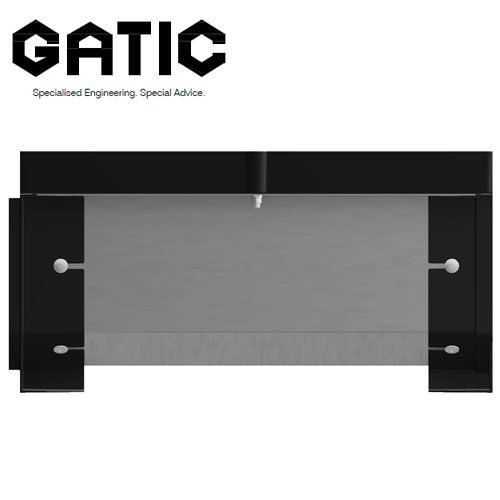

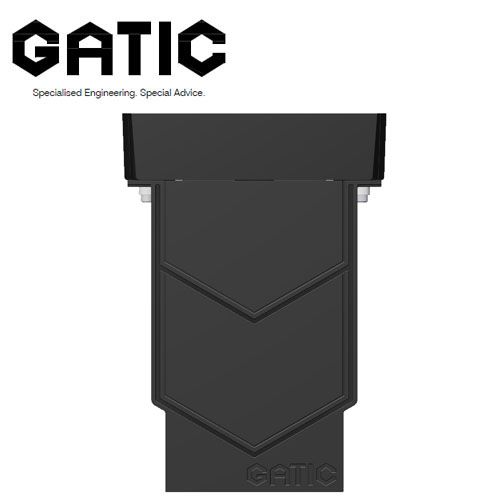

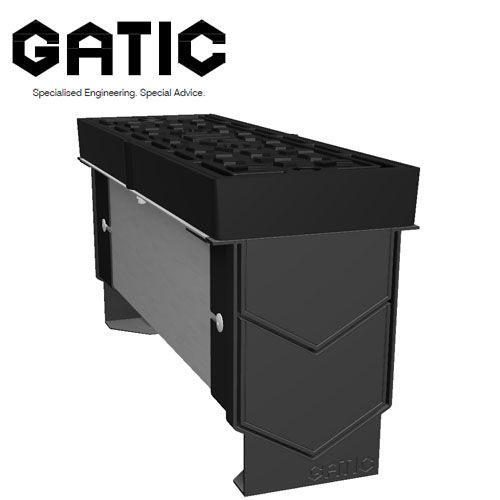

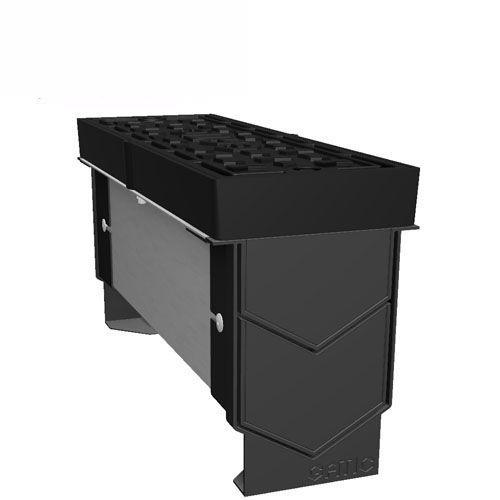

Gatic ProSlot Cast Access Box 150 Drain - 500mm

Code:
A211010
Brand:

This item is out of stock and not available to purchase.

Pave Slot is used to drain external hard surface areas, where a neat, unobtrusive and aesthetic appearance is required. The system is typically used with paving units, laid against the top edge of the channel. Throat spacer perforations allow any subsurface water that may have...Read More

Create a wishlist

"Brilliant products"

Alex R

Description

Pave Slot is used to drain external hard surface areas, where a neat, unobtrusive and aesthetic appearance is required. The system is typically used with paving units, laid against the top edge of the channel.
Throat spacer perforations allow any subsurface water that may have settled under paving units, beside the channel, to percolate and move into the channel body. The system is suitable for all paved areas, in public and commercial projects, which may be subject to occasional traffic by delivery and service vehicles.

Dimensions

  • Load Rating: D400
  • Length: 500mm
  • Width: 170mm
  • Depth: 255mm
  • Invert: 225mm
  • Throat Depth: 45mm
  • Box Weight: 7kg
  • Cover Weight: 9kg
  • Total Weight: 16kg


Gatic’s core business has traditionally been driven by its success in meeting the heavy linear drainage demands of the world’s major air and sea ports. In fact, Slotdrain’s unique channel drainage profile was originally developed in conjunction with leading construction industry professionals from the airport sector.

The concept has, however, proved infinitely scalable and has now been developed into a comprehensive range of products allowing its benefits to be spread to smaller projects such as landscaping schemes, shopping developments and parking facilities.

Minimal visual impact

Slotdrain’s continuous intake slot is the only outward indication of the highly efficient surface water drainage system that lies just out of sight.

Simple installation

Flat-based feet at the ends of each Slotdrain section make it easy to anchor them in the trench and allow a single block of concrete to be poured under and around the main body of the channel, maximising overall strength and integrity. Single piece channels up to 3 metres in length mean fewer joints.

Easily set to line and level

Slotdrain keeps the below ground pipework to a bare minimum, reducing the need for small bore channel drains and maintenance. Gentle curves are easily achieved and tighter radii can be accommodated with the use of optional 1 metre or 500mm lengths.
rainwater flow control

Single Unit

Installation as a single unit increases speed and ease of installation. Precision manufactured from galvanised sheet steel, Slotdrain is impact resistant and has a high quality finish.

Water Attenuation

A primary feature of our Slotdrain design is its unique profile, which enables it to handle large or small quantities of water with similar high efficiency. Flow regulation is achieved by means of endplates with orifices sized to suit the application and positioned to avoid restriction in normal flow conditions. Our design software enables systems to exactly match permissible discharge rates at each site. This feature can be particularly useful on sloping sites, where water can be retained at any level, thus avoiding local flooding in the discharge area.

Proven Performance

Gatic Slotdrain fully complies with BS EN 1433:2002 – Drainage for vehicular and pedestrian areas, and has been comprehensively load tested. Water tightness has been tested to BS EN1433 and is BSI certified.

Dimensions

Length 500mm Depth 225mm Width 170mm

Details

Material Galvanised Steel Weight Class D400 Range ProSlot
