Gatic Facade Slot Channel Drain 50mm (Pedestrian A15) - 1m

Code:
FA00033
Brand:

This item is out of stock and not available to purchase.

A discreet surface drainage channel that can be installed directly against a building, wall or other external landscape feature, to provide effective drainage of surface liquids from vertical surfaces, door thresholds and the adjacent pavement area. FacadeSlot channels c... Read More

Create a wishlist

"Excellent service"

TerryBrook

Description

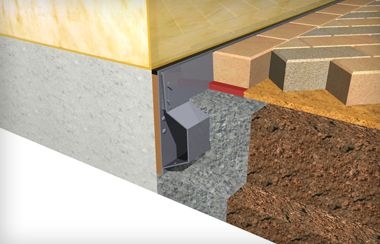

A discreet surface drainage channel that can be installed directly against a building, wall or other external landscape feature, to provide effective drainage of surface liquids from vertical surfaces, door thresholds and the adjacent pavement area. FacadeSlot channels can be made to follow the building perimeter whether straight or curved. The system can accommodate rainwater downpipes which, when positioned over a simple rainwater inlet box, can eliminate the need for a separate drainage network for the roof area, achieving a more efficient drainage design.

Technical

Load Rating: Pedestrian A15
Surface Finish:
Paving
Length:
1000mm
Width:
50mm
Height:
357mm
Invert:
308mm
Throat Depth:
200mm
Throat Width:
16mm
Slot Orifice:
10mm
Intake Area:
10470mm2
Weight:
28.2kg

Dimensions

Length
1000mm
Depth
357mm
Width
50mm

Details

Material
Galvanised Steel
Features
Slot Drain
Weight Class
A15
Range
Facade
