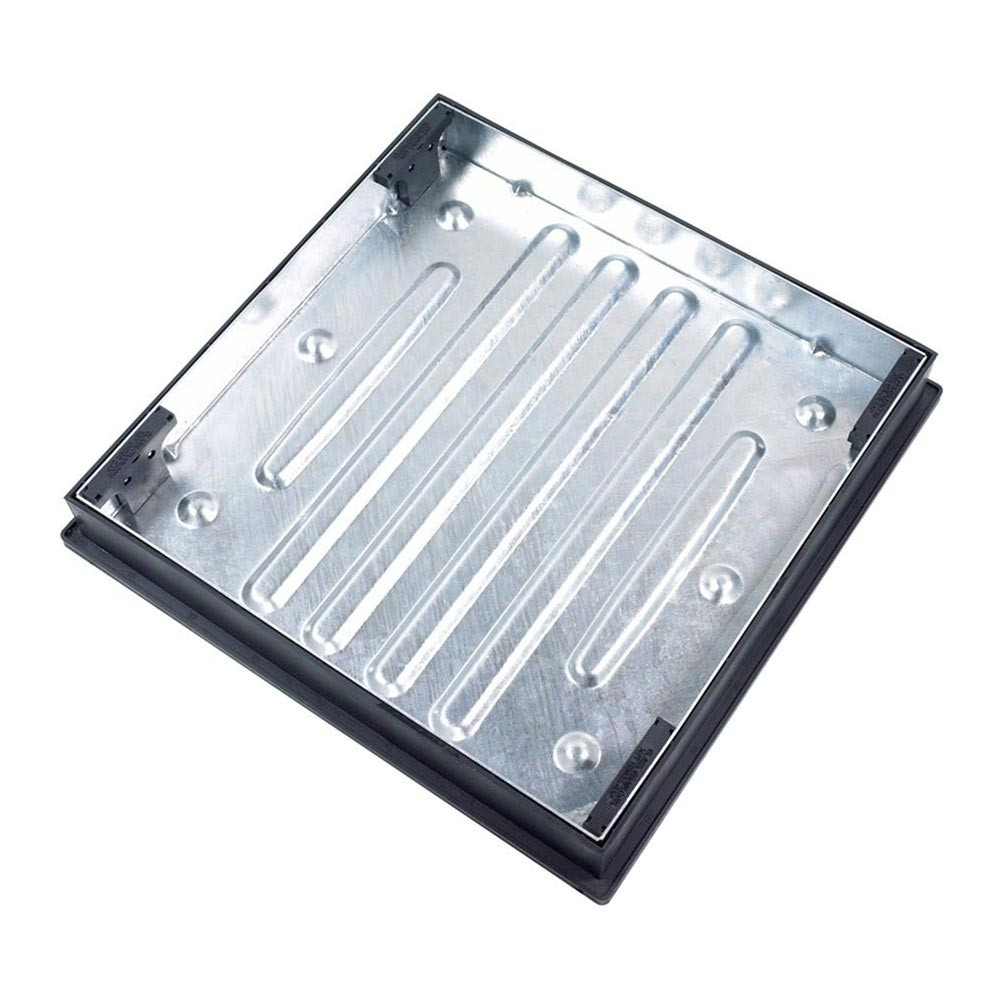

Galvanised Steel Recessed Manhole Cover and Polypropylene Frame for Block Paving 600mm x 600mm - 10 Tonne

Code:
CLKS791R
Free UK Delivery

This 650mm x 450mm Galvanised Steel Recessed Manhole Cover and Polypropylene Frame for Block Paving, with a maximum weight load of 10 tonnes, has been designed for landscaping and driveway installations with safety and security in mind. The galvanised steel tray can be rotate...Read More

Create a wishlist

"Fast and quick service"

Paul

Description

This 650mm x 450mm Galvanised Steel Recessed Manhole Cover and Polypropylene Frame for Block Paving, with a maximum weight load of 10 tonnes, has been designed for landscaping and driveway installations with safety and security in mind.

The galvanised steel tray can be rotated to fit within the frame and the cover can be turned to ensure it matches the direction of the surrounding paving pattern. Once fully installed, the manhole cover should blend in to the surrounding paving design, creating an aesthetically pleasing finish to your driveway or patio area.

Featuring integral lifting handles, the access cover has been tested to withstand 120kg of direct lift and lifting keys are included.

Features & Benefits

  • Designed for landscaping installations and driveways
  • Integral lifting keys included – tested to withstand 120kg direct lift
  • Once installed, the cover blends in with surrounding paving
  • Fully galvanised tray



Product specification

Application: Landscaping and driveways

Loading: 10 Tonne Gross Plated Weight

Material: Galvanised steel and polypropylene

Clear Opening Dimensions: 600mm x 600mm

Overall Size: 690mm (L) x 690mm (W)

Tray Depth: 80mm

Overall Depth: 96mm

Weight: 21kg

Load Test Data: 25kN held for 30 secs

Dimensions

Length 600mm Depth 80mm Width 600mm

Details

Material Galvanised Steel Maximum Weight Load 10 tonnes Internal Dimensions 600mm x 600mm
