Please note an additional carriage charge is applicable to the following postcodes:
AB,CA,DD,DG,EH,FK,IV,KA,KW,G,KY,ML,PA,PH,NE,TD.
For these postcodes please add this additional charge or call us for more info.
Description

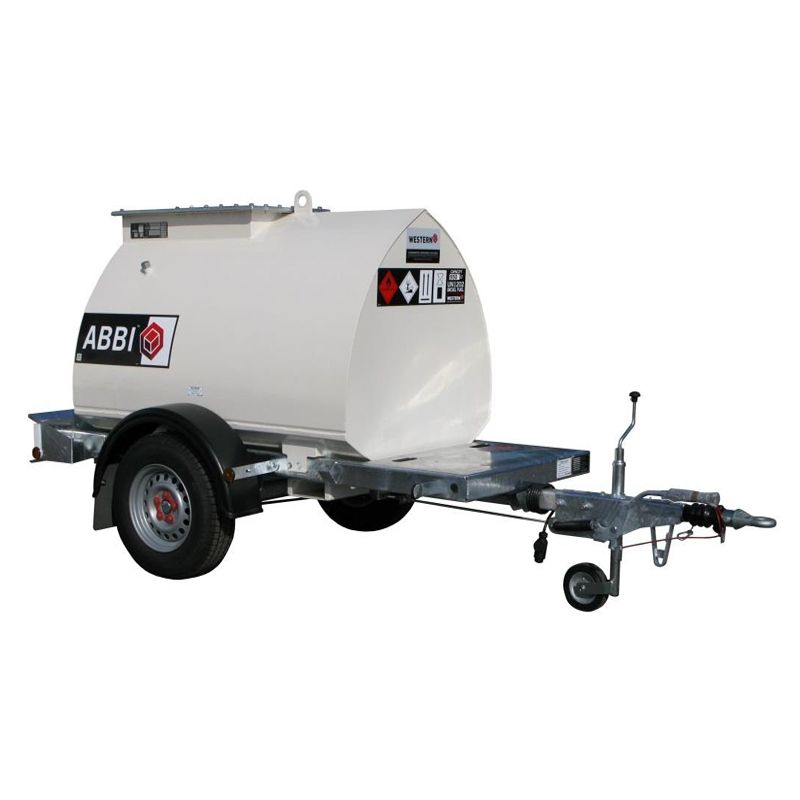

The Highway Tow ABBI consists of a steel in steel UN (United Nations) approved IBC (Intermediate Bulk Container) suitable for transporting diesel fuel on the highway. The ABBI is fully bunded to ensure compliance with Environmental Regulations for fuel storage - PPG2 (Pollution Prevention Guidelines).
Specification
Standard Tank Fittings: 2½” Fill Cap : Site Glass : Contents Gauge : ¾” Pump Feed : Pressure Vent : Vacuum Vent : Generator Feed & Return Ports : Pump Bracket : Inspection Manhole : Bund Dipstick : Bund Emptying Pipe.
Capacity (brim full) Litres: 950
Suspension: Single rubber suspension axle 1500kg gross
Capacity (brim full) Gallons: 209
Brake Specification: 200 x 50 auto reverse brakes
Dimension Length (mm): 2760
Chassis: 5mm hot dipped galvanised
Dimension Width (mm): 1550
Wheels & Tyres: 185R14 Tyres on 5 stud wheel
Dimension Height (mm): 1900
Mudguards: Moulded polythene
Cabinet Dimensions (mm) Opening Size:
Width 350 x Height 400 : Depth 230
Jockey Wheel: 48mm telescopic jockey wheel. 1 x rear dropleg
Bund Material (thickness): S275 (2.5mm)
Lighting: Full EU 13 pin plug. Wired to ISO standard with fog
& reverse lamps.
Inner Tank Material (thickness): S275 (2.0mm)
Coupling Specification: Knott KRV20 (2000kg), ball or 40mm eye as specified
Weight Unladen (kg): 660
Design Approvals: ADR IBC Type 31A.
Weight Laden (kg): 1500*
Design Standards: Bunded to COP Regulations (PPG2).
