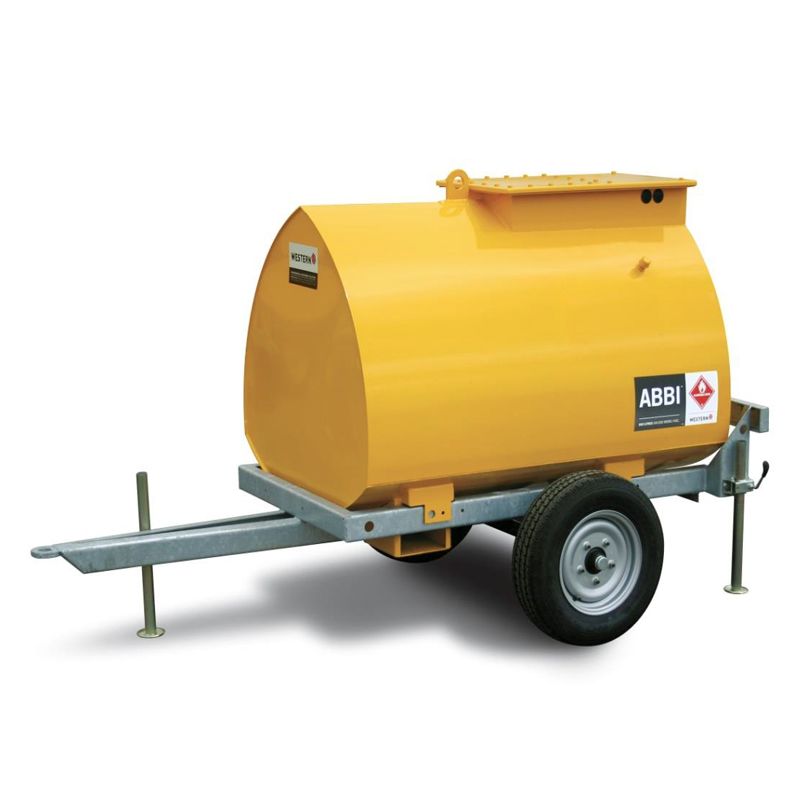

Fuel Storage Tank Bowser 950L Bunded Portable Chassis Mount IBC - ABBI

Name: Fuel Storage Tank Bowser 950L Bunded Portable Chassis Mount IBC - ABBI
Brand: WESTERN GLOBAL
SKU: S210A (W)
Price: 3336.42 GBP
Availability: LimitedAvailability

Code:

S210A (W)

Brand:

WESTERN GLOBAL

Free UK Delivery

This item is out of stock and not available to purchase.

View alternative products

Please note an additional carriage charge is applicable to the following postcodes: AB,CA,DD,DG,EH,FK,IV,KA,KW,G,KY,ML,PA,PH,NE,TD. For these postcodes please add this additional charge or call us for more info. Description A steel in steel U. N. (United Nations) Approved ...Read More

View full product details

View questions about this product

Create a wishlist

Martin

Description

Please note an additional carriage charge is applicable to the following postcodes:
AB,CA,DD,DG,EH,FK,IV,KA,KW,G,KY,ML,PA,PH,NE,TD.
For these postcodes please add this additional charge or call us for more info.

Description
A steel in steel U.N. (United Nations) Approved IBC (Intermediate Bulk Container) suitable for transporting diesel fuel on the highway. The ABBI is fully bunded to ensure environmental compliance with Pollution Prevention Guidelines (PPG2)

Secure lockable access hatch to enclose pumping equipment.
Direct access into the inner tank via the manhole for cleaning and inspection.
Full load lifting can be achieved using single lifting eye and forklift pockets for ease of handling.
Internal baffles for safe towing.
Heavy duty site tow unit mounted on a galvanised chassis.

Specification
Standard Tank Fittings: 2½” Fill Cap : Site Glass : Contents Gauge : ¾” Pump Feed : Pressure Vent : Vacuum Vent : Generator Feed & Return Ports : Pump Bracket : Inspection Manhole : Bund Dipstick : Bund Emptying Pipe

Capacity (brim full) Litres: 950
Suspension: N/A – Single 45mm square solid beam axle
Capacity (brim full) Gallons: 209
Brake Specification: N/A **
Dimension Length (mm): 2820
Chassis: 5mm hot dipped galvanised
Dimension Width (mm): 1550
Wheels & Tyres: 185R14 Tyres on 5 stud wheel
Dimension Height (mm): 1700
Mudguards: N/A
Cabinet Dimensions (mm) Opening Size: Width 350 x Height 400 : Depth 230
Jockey Wheel: 1 x drawbar leg & 1 x rear dropleg
Bund Material (thickness): S275 (2.5mm)
Lighting: N/A
Inner Tank Material (thickness): S275 (2.0mm)
Coupling Specification: 50mm fabricated eye
Weight Unladen (kg): 560
Design Approvals: ADR IBC Type 31A.
Weight Laden (kg): 1415*
Design Standards: Bunded to COP Regulations (PPG2).
