Edma EDMAPLAC450 Plasterboard and Insulation Panel Lifter - 4.5m

Code:
EDMAPLAC450

The new EDMAPLAC450 lifter is a very useful piece of equipment for lifting plasterboard and insulation panels (up to 1.20m x 3.60m) in a number of positions : Horizontal - for ceiling installations Angled - for sloping ceiling installations Vertical - for wall installations....Read More

Create a wishlist

"Very easy to use"

C Howard

Description

The new EDMAPLAC450 lifter is a very useful piece of equipment for lifting plasterboard and insulation panels (up to 1.20m x 3.60m) in a number of positions :

Horizontal - for ceiling installations

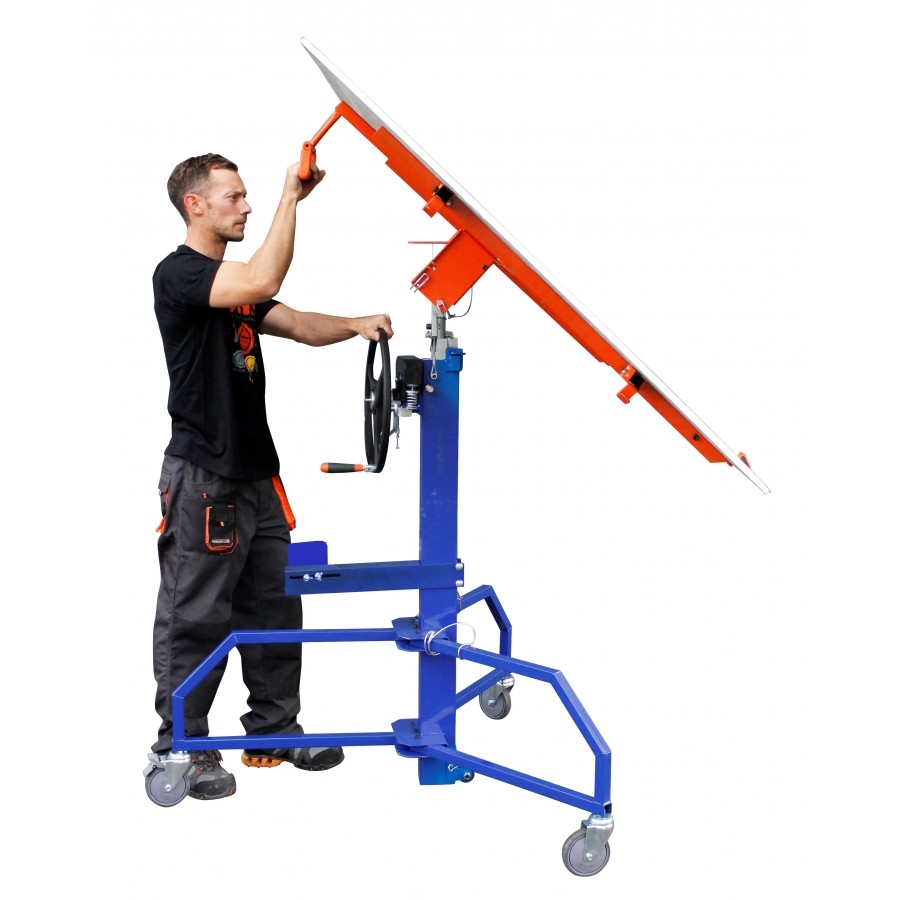

Angled - for sloping ceiling installations
Vertical - for wall installations.

Key Features and Benefits

• New innovative 2 handle braking system enables you to lower the extension quickly and safely
• Can easily pass through doorways due to its foldable feet. And with 3 wheels (2 with brakes) this panel hoist is easy to move into position.
• Wooden tool carrier board is included to allow you to keep tools close to hand.
• Manual and Automatic Operation. With power drill assistance the EDMAPLAC450 can switch from manual to automatic.
• Rack and Pinion system allows you to use this hoist with minimal effort. The EDMAPLAC450 development has been studied to avoid musculoskeletal disorders, such as muscle / tendon strain.
• Unlike its competitors, the EDMAPLAC450 creates no noise while lifting on job sites.

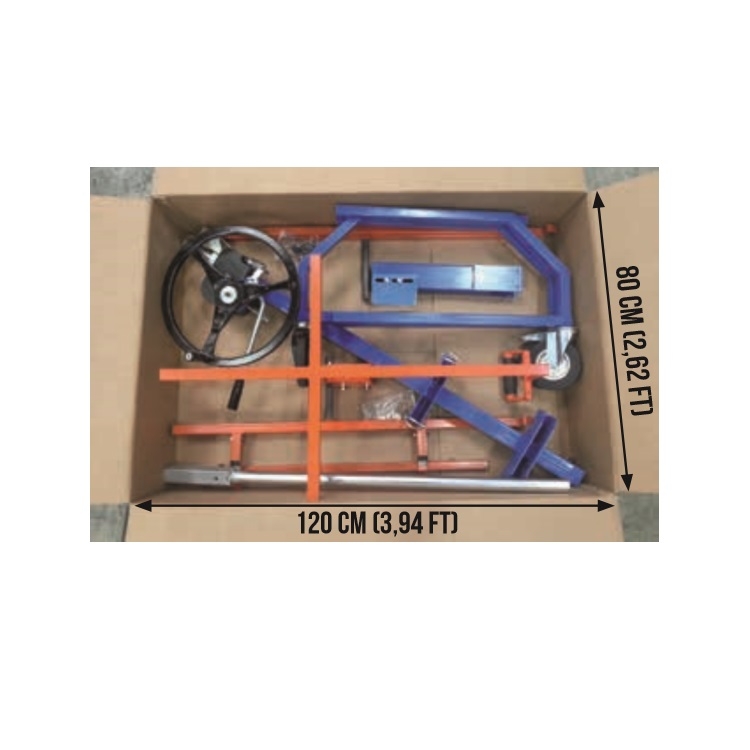

• The panel lifter can be stored in standard European pallet 120cm x 80cm, which is the smallest packing of the market.

Specifications

• Maximum board dimensions: 1.20 x 3.60m
• Minimum board dimensions: 0.15 x 0.60m
• Maximum height with extension part: 4.50m
• Maximum height without extension part: 3.50m
• Minimum height: 161 cm
• Maximum height for vertical lifting with 2.50 m height board: 6.25 m
• Board loading height without extension part: 84cm
• Minimum width in moving/storage position: 63cm
- Total gross weight: 53 kg

CE certified.

In conformity with European directive "MACHINERY"-2006/42/CE.
Approved by the VERITAS conformity report# 628 8214-1.

Please note: The maximum load for this product is 80kg.
