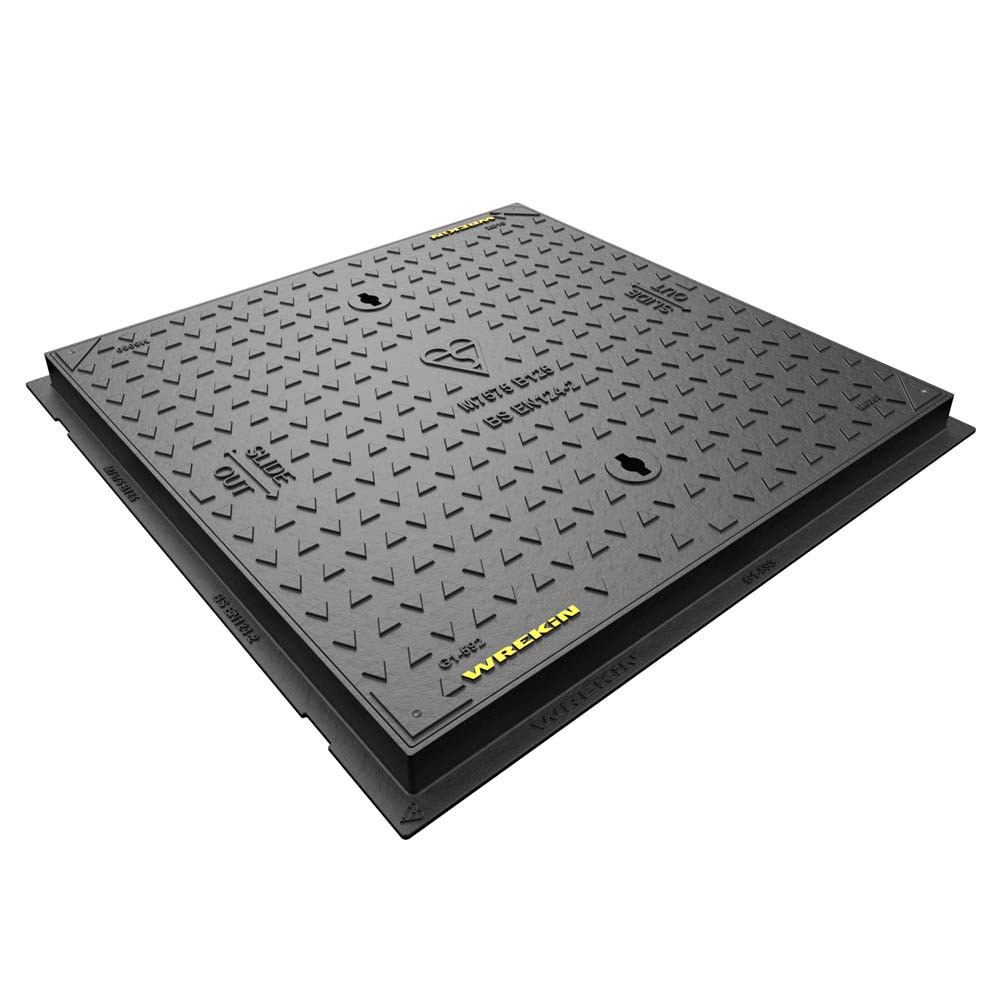

DISCON - Wrekin Ductile Iron Manhole Cover and Frame 750mm x 750mm x 55mm - B125

Code:
DMS1B2/7575/K
Brand:

Made to meet BS EN 124:1994 B125 for 12.5-tonne test loads, this Wrekin Ductile Iron Manhole Cover and Frame is suited to use in Group 2 Class B125 environments. It consists of a high-strength and lightweight ductile iron structure for durability and long-term use, alongside a... Read More

Create a wishlist

"Very good and quick delery excelle…"

Mr Barker

Description

Made to meet BS EN 124:1994 B125 for 12.5-tonne test loads, this Wrekin Ductile Iron Manhole Cover and Frame is suited to use in Group 2 Class B125 environments. It consists of a high-strength and lightweight ductile iron structure for durability and long-term use, alongside a single-seal labyrinth to inhibit water ingress and prevent odour escaping*.

The patented safety keyway works to stop any accidental disengagement when lifting. This product is also suited to use with standard D400 lifting keys.

Features & Benefits: DISCON - Wrekin Ductile Iron Manhole Cover and Frame 750mm x 750mm x 55mm - B125

  • For use in a Group 2 Class B125 environment
  • High-strength and lightweight structure
  • Patented safety keyway stops accidental disengagement when lifting
  • Suited to use with standard D400 lifting keys
  • Single-seal labyrinth arrangement to inhibit water ingress and prevent odour escaping (except 1200×1600 version)
  • Made from strong and highly durable ductile iron
  • 750mm x 750mm Clear Opening
  • 850mm x 850mm External Dimensions
  • 55mm frame depth

Standards & Certification

  • Fully complies with BS EN 124 1994 B125
  • Kitemarked by BSI (except 1200×1600 version)

Please note:

  • *Does not include 1200mm x 1600mm version.

Dimensions

Length
750mm
Depth
55mm
Width
750mm

Details

Material
Cast Iron
Product Type
Manhole Cover and Frame
Weight Class
B125
Profile
Solid Top
Internal Dimensions
750mm x 750mm
External Dimensions
850mm x 850mm
Use Location
Domestic Driveways
Load-Bearing Strength
12.5 Tonnes
