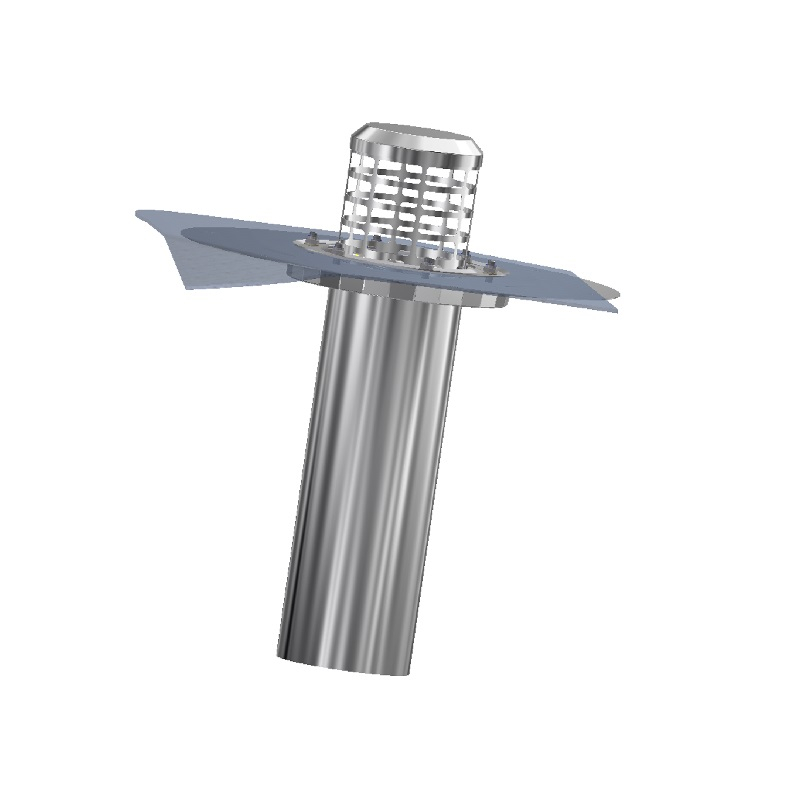

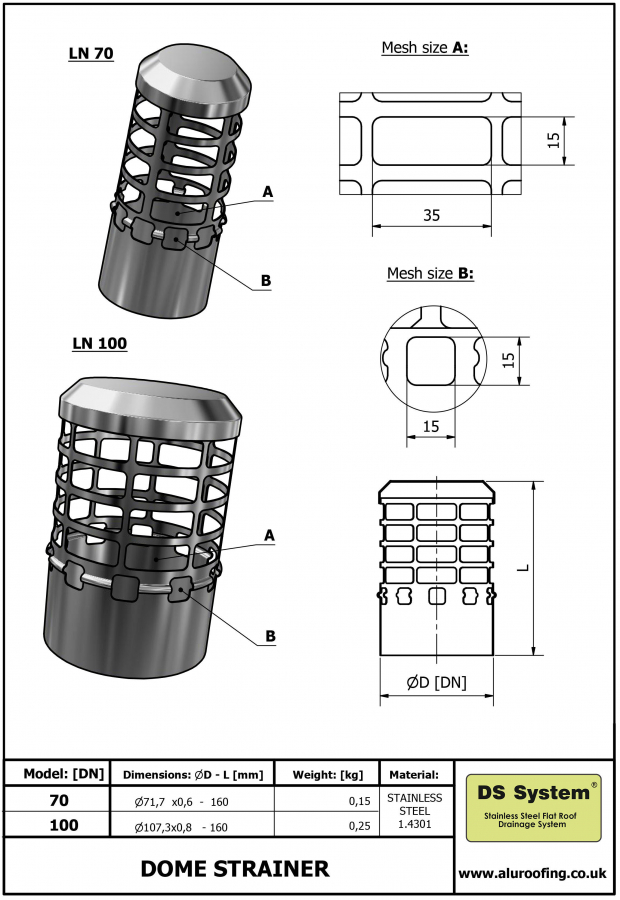

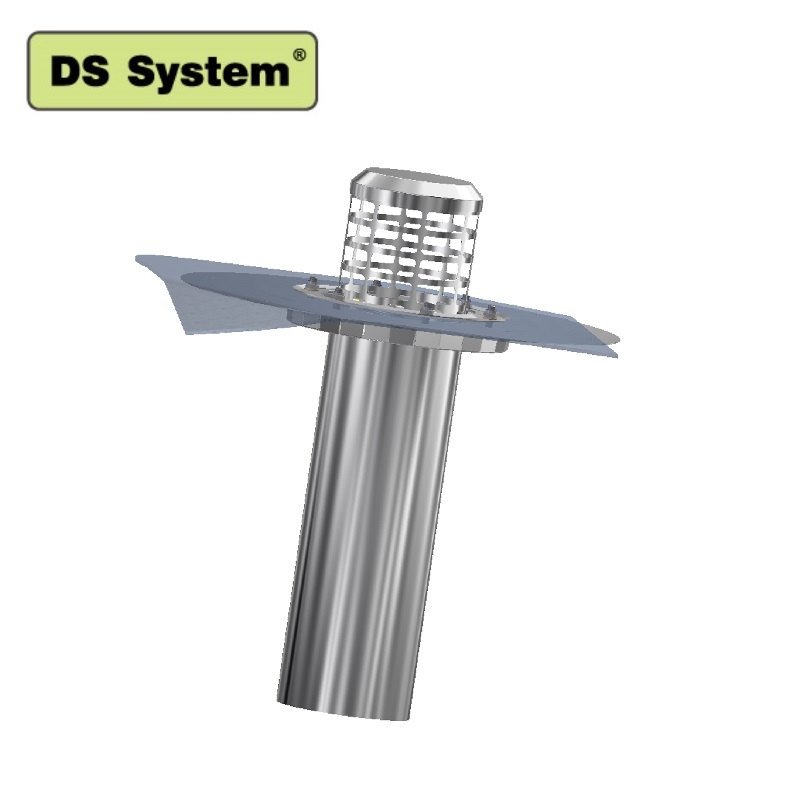

DS System 70mm Vertical Roof Drain & Dome Strainer

Code:
DRAIN 30.01

This DS System vertical roof drain is manufactured from 0.6mm thick stainless steel for all types of waterproofing membrane. Compatible with standard drain pipes, like type HT and type KG, this vertical roof drain has been designed with a low body to allow for installation int...Read More

Create a wishlist

"Brilliant service"

customer

Description

This DS System vertical roof drain is manufactured from 0.6mm thick stainless steel for all types of waterproofing membrane. Compatible with standard drain pipes, like type HT and type KG, this vertical roof drain has been designed with a low body to allow for installation into shallow insulation. High mechanical resistance and resistance to both frost and to UV increase the longevity and durability of this product.

Attaching to the roof drainage via a flange, the greased roof drain pipe is easily connected to the drain pipes without losing any of the waterproofing qualities of the membrane as a seal comes with each roof drain as standard. When installing this DS System vertical roof drain it’s recommended that you use ample lubricant to avoid tearing the seal on any drain pipe. Tearing can also be avoided by using round-head or oval-head screws. The roof drain is tightened into place by stainless steel nuts which are self-locking.

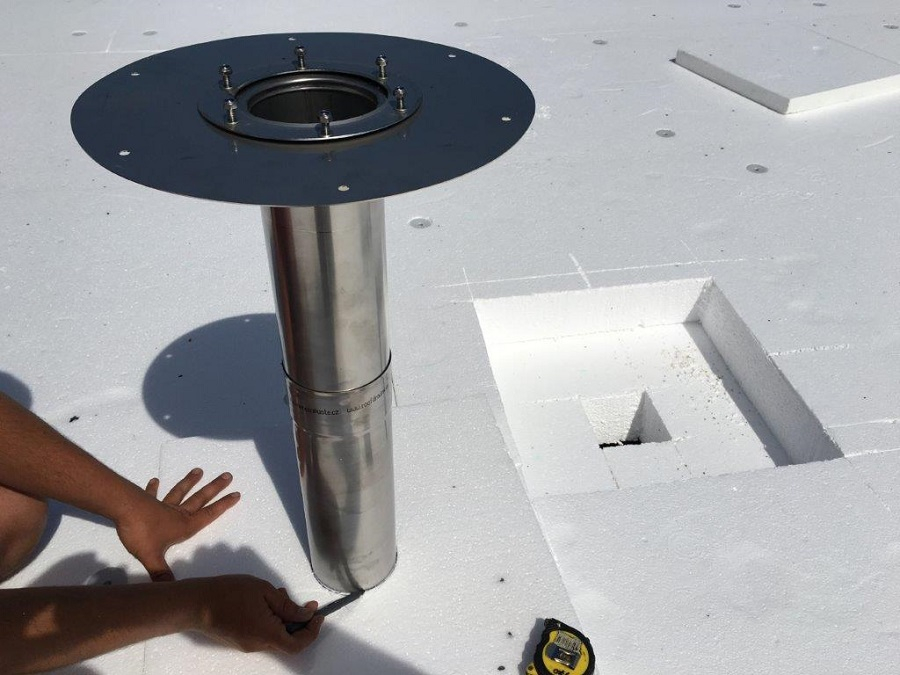

When fitting into insulation you must fit 3 to 5cm below the level of hydro isolation and use a low compression adhesive foam for strength and stability of the roof drain.

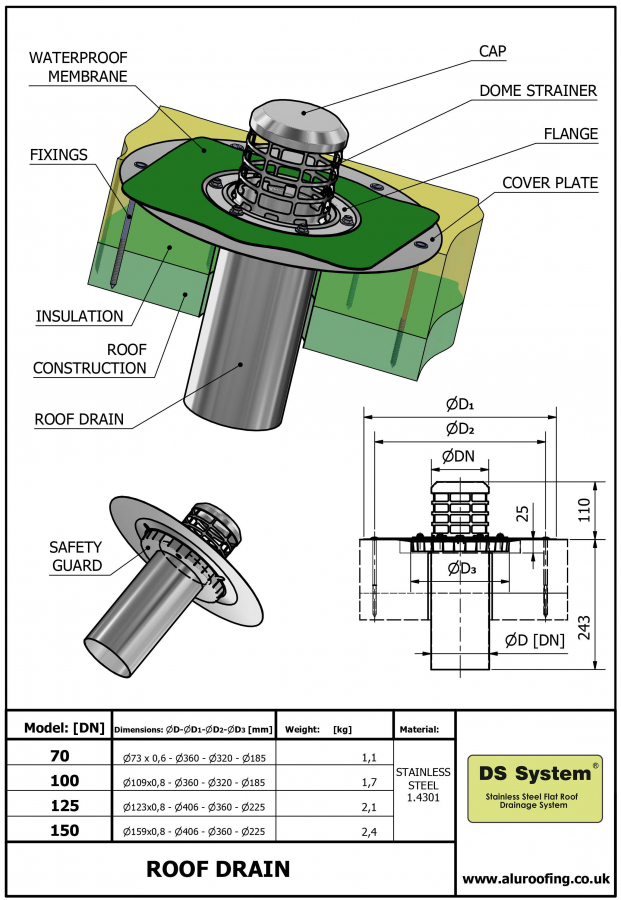

DS System Vertical Roof Drain Specifications

Pipe Bore Size: 70mm
Pipe OD: 73mm
Max. Area Drained: 185m2
Flow Rate: 5.7l/s
Weight: 1.1kg

Details

Material Stainless Steel Product Type Roof Drain Diameter 73mm
