DS System 70mm Overflow F

Code:
DRAIN 31.21

DS System's 70mm and 100mm Overflow F is manufactured from high quality stainless steel to prevent a build-up of water that will cause a roof to flood. This is typically down to debris clogging a roof drain but it’s prudent to prepare for these cases as a flooded flat ro...Read More

Create a wishlist

"The soil conditioner is a good pro…"

Neville Bronzy

Description

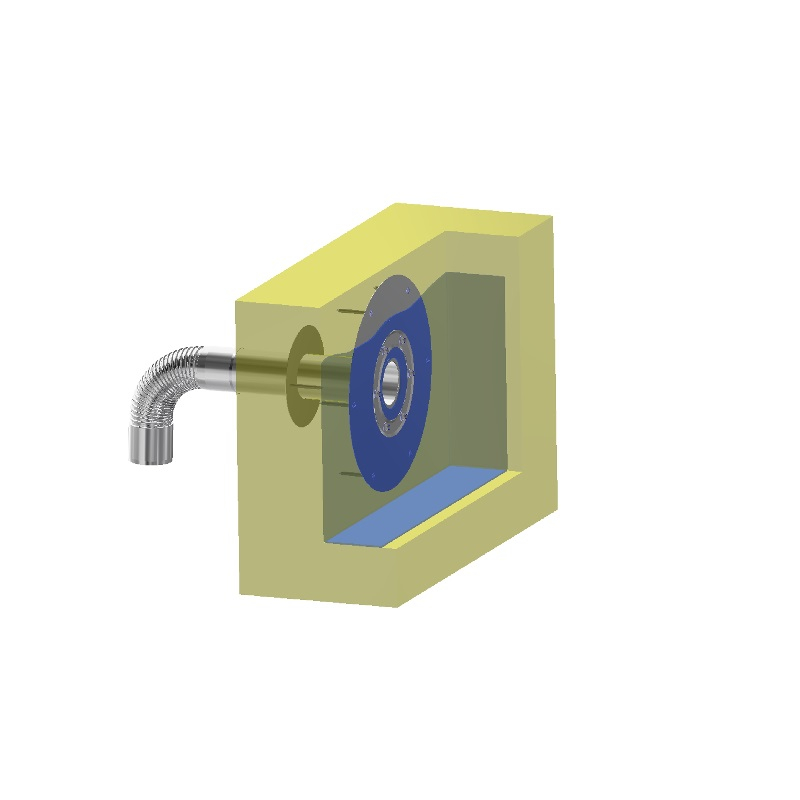

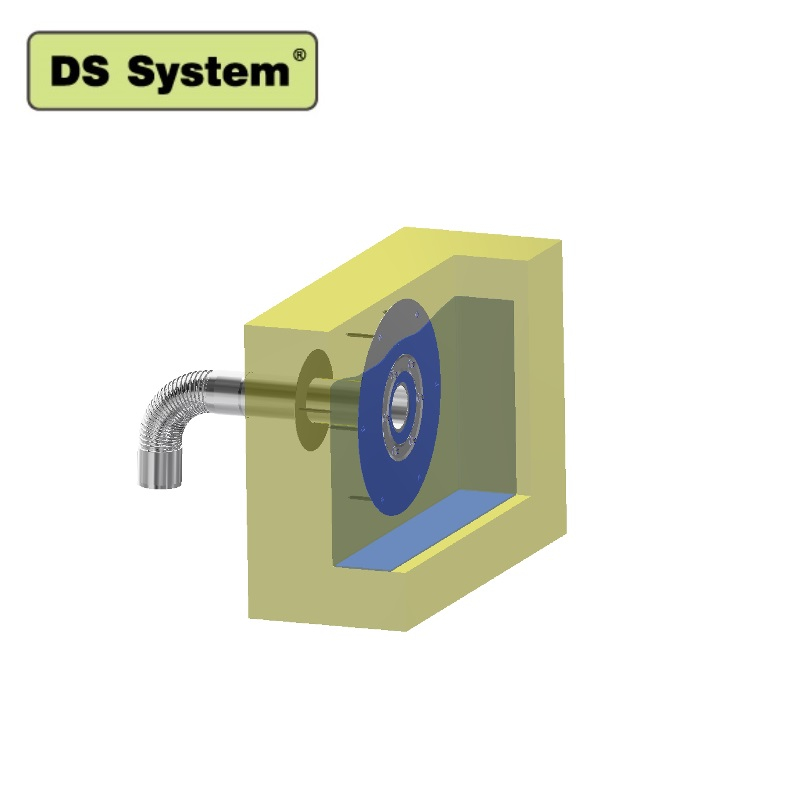

DS System's 70mm and 100mm Overflow F is manufactured from high quality stainless steel to prevent a build-up of water that will cause a roof to flood. This is typically down to debris clogging a roof drain but it’s prudent to prepare for these cases as a flooded flat roof can cause untold damage to pipes and services as well as promoting leaks and structural damage. Thanks to the flange on Overflow Fs, this product can be mechanically attached to any waterproofing.

Overflow Fs are extremely easy to fit. Insert the overflow through the wall and anchor it into place with round or oval screws. Then use a low expansion foam to fill the spaces around the overflow externally and fasten the cover plate into position with screws. Once the elbow is then placed in the desired direction you can connect the elbow with PU sealant.

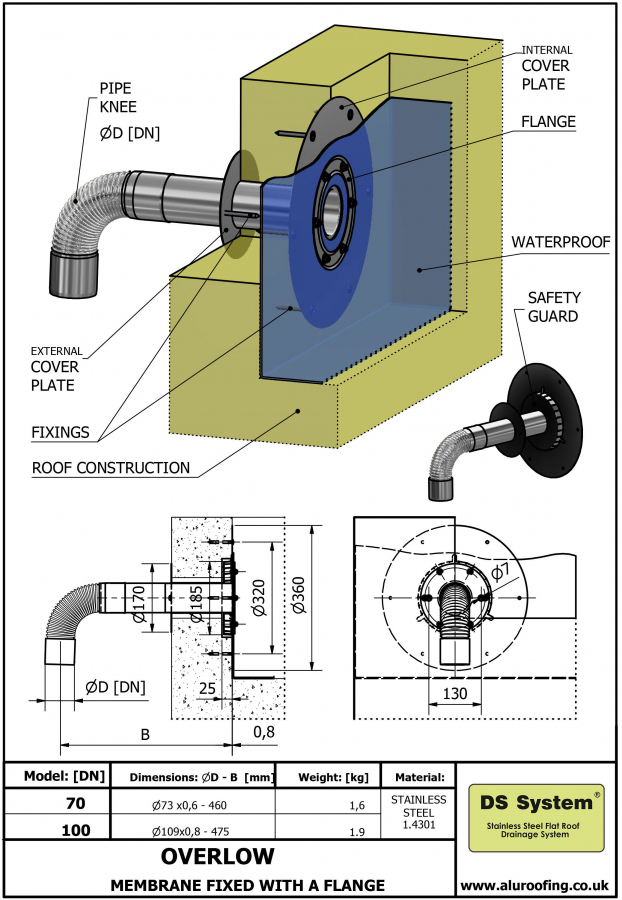

DS System Overflow F Specification

Diameter: 70mm

Details

Material Stainless Steel Product Type Roof Drain Accessories Diameter 70mm
