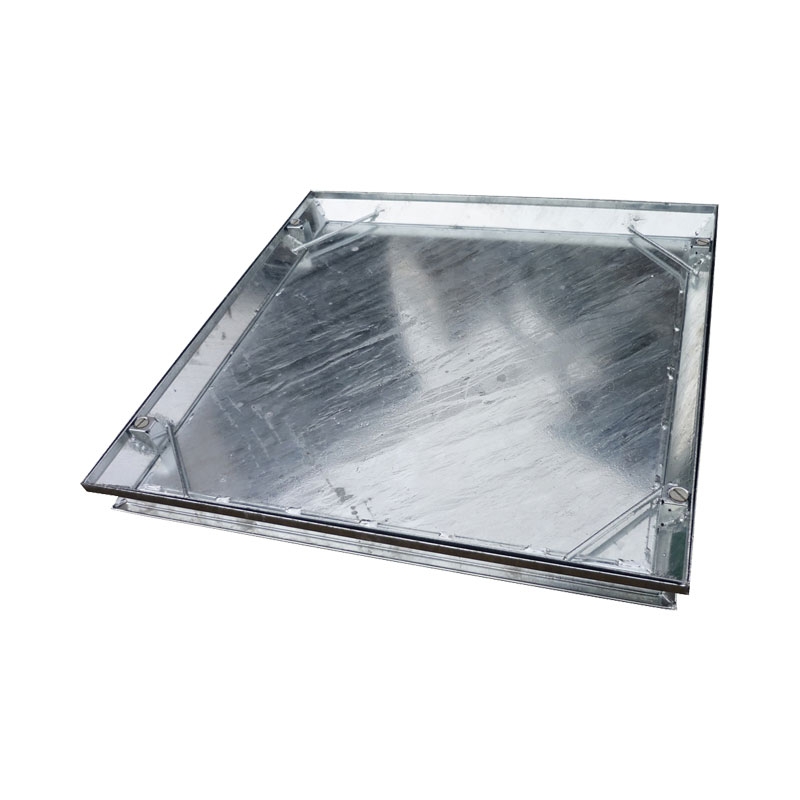

Double Sealed Recessed Manhole Cover and Frame 600mm x 450mm

Product Code:
D3104C
Brand:
Est. Delivery: TBC*

* COVID-19: Due to supplier issues this product isn't currently available to purchase.

£62.00 Incl. VAT
£51.67 Ex. VAT
Oops! Please select from the options

Product Description

58mm Deep, Medium Duty, Recessed Tray Type Cover for Floor Finish Infill
Usage: For internal usage and areas with infrequent slow moving traffic up to 10 tonnes GLVW

  • Recessed lids enabling concrete or concrete & floor finish infill
  • Solid steel base plate
  • Keying in bars fitted within lid recess
  • Specially produced matching lid and frame section
  • Brass edge & stainless steel edging available
  • Double rubber sealed and locked as standard
  • Non standard sizes are available
  • Manufactured under an ISO 9001:2000 Quality System
  • Finish: Hot dipped galvanised to BS EN ISO 1461 as standard

Product Documents

Dimensions

Width 450mm Length 600mm

Details

Product Type Manhole Cover and Frame Maximum Weight Load 10 tonnes Material Galvanised Steel Shape Rectangular Seal Double-Sealed
Features Recessed

Frequently Bought Together

loading...

Questions & Answers

Question:

Is this suitable for outdoor use where we would infill the manhole with a 15mm slate finish within a slate patio.

Answer:

yes this would be fine, you just need to leave the screws exposed so you can lift the cover.

Question:

Can this be used outside?

Answer:

Yes

Question:

What is the outside diameter of this cover and frame?

Answer:

The outer frame sizes are as follows: 676 x 526mm
