Dimensions External Dimensions: 875 (L) x 875 (W) x 150 (H)Clear Opening: 675 (L) x 675 (W) Manholes fitted with sealing plates have traditionally been used to deal with odour complaints in problematic drains. on face value it is a re...Read More
Dimensions
External Dimensions: 875 (L) x 875 (W) x 150 (H)
Clear Opening: 675 (L) x 675 (W)

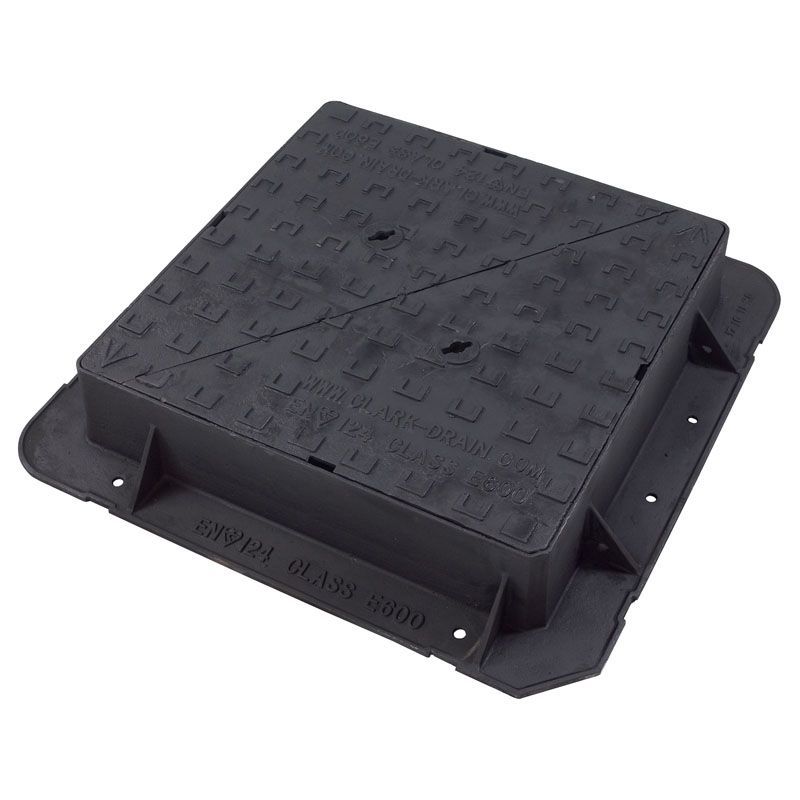

Manholes fitted with sealing plates have traditionally been used to deal with odour complaints in problematic drains. on face value it is a recognised method. however, for regular slow moving heavy duty traffic significant advantages can be gained by using a d400 double seal and locking cover and frame in relation to health and safety, performance and reducing construction costs. The Clark-Drain ductile iron D400 double sealed and locking solid top cover has been engineered to cope with all the varying traffic loadings encountered by today’s busy built up areas, bus depots, car parks, petrol stations, municipal maintenance facilities and other fleet fuelling sites. All typical, public and work areas where odour control is often specified.
Product Group: Ductile Iron Kitemark Manhole Covers
Sub-Category: HIGH MAX E600 Double-Tri Manhole Covers for use in heavily
trafficked highways and commercial/industrial areas.
Material Grade/s: Spheroid Graphite Iron Grade EN-GJS-500-7 to BS EN 1563:1997.
Temporary Bitumen-based paint coating to BS 3416.
Weight: Overall = 110kgs
Covers = 70kgs (pair)
Frame Pressure
Bearing Area: 2.08N/mm2
Polished Skid-Resistance Value
(PSRV): 60+
Load Rating Classification: E600 (60 tonnes)
Features: - BSI Kitemark Certified to BS EN124:1994
(copy certificate available upon request).
- Non-rock 3 point suspension covers.
- Integral lifting key holes (to suit CLKS 552 lifting keys,
available separately).
- Compliant to the design requirements
There are no product downloads to show.
