Featuring twelve drain connection points and the ability to interlock in eight directions, this DekDrain Eezee C250 Channel Drain with Ductile Iron Wave Grating and Locking Bars allows you to create tees, crosses, and staggered runs without the need for additional fittings. As... Read More

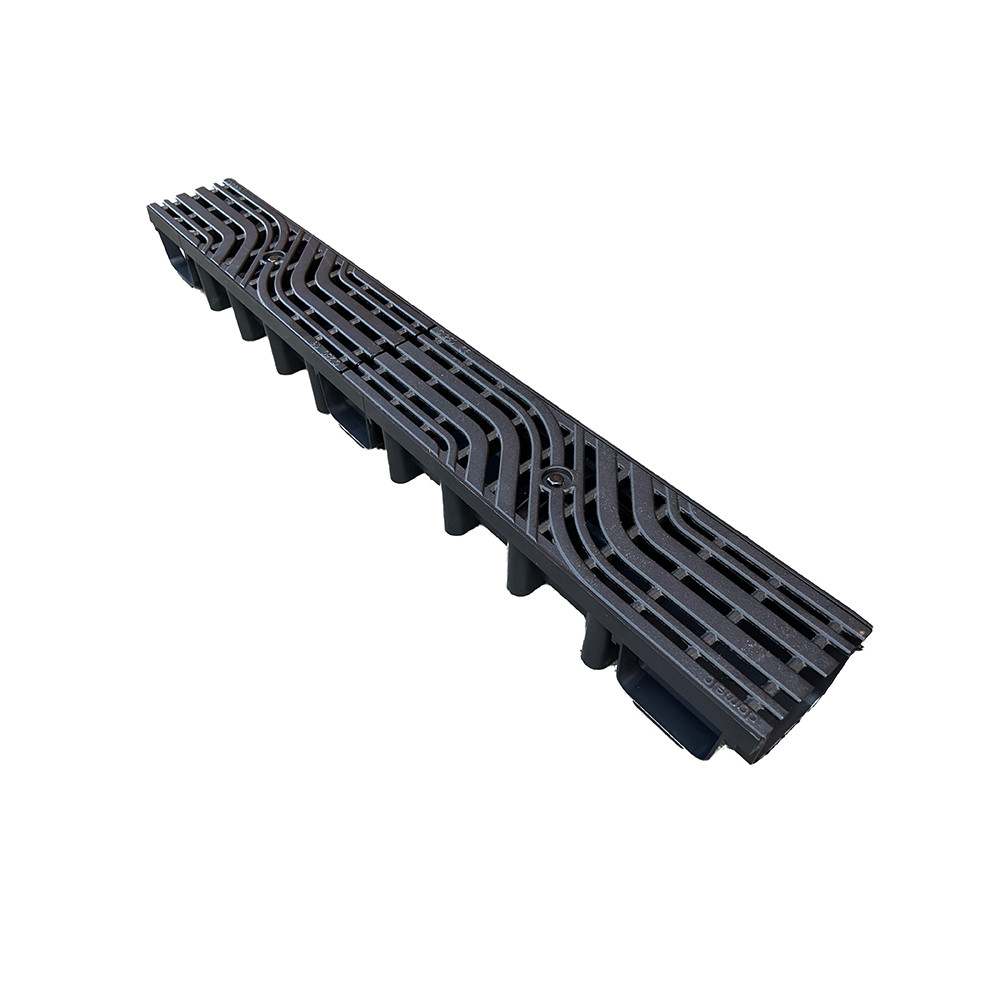

Featuring twelve drain connection points and the ability to interlock in eight directions, this DekDrain Eezee C250 Channel Drain with Ductile Iron Wave Grating and Locking Bars allows you to create tees, crosses, and staggered runs without the need for additional fittings. As a complete system, the lightweight and robust Eezee channel drain removes the necessity to buy extra components separately, saving you time and money for your project.
With three connection points on each side of the channel body and connection points at either end, you have the freedom to build a layout that suits your specific requirements. Each channel length features six cut points, allowing for end-to-end interlocking stability on runs with cuts. You can also construct a socket/spigot channel with no butted joints at 300mm, 400mm, 600mm, 700mm and 800mm lengths. If you cut to 500mm, this leaves an end butt joint, whereas cuts between 300-500mm and 800-1000mm will allow total grating lockdown.
Thanks to its High-Density Polyethylene (HDPE) surface, the DekDrain Eezee C250 Channel Drain system helps to lessen the risk of silt accumulation within the channel. The smooth, self-cleansing surface, therefore, helps reduce blockages as well as cleaning and maintenance costs.
Made from durable ductile iron, the C250 load class-rated, stylish and modern decorative Wave grate is ideal for pedestrian areas, pathways, driveways, and roads with slow-moving traffic.
