Dek-Drain VIP HD-PE Channel & Mesh Ductile Grate B125 - 1000 x 158 x 154mm

Code:
DCD-VIP-100/100-MDB125

This item is out of stock and not available to purchase.

This B125 channel drain from Dek-Drain is manufactured from high density polyethylene for use in areas where traffic will not exceed the weight load class of 12.5 tonnes. This Dek-Drain channel drain can be used in areas such as pavements, private car parks and laybys with add...Read More

Create a wishlist

"Smooth and easy transaction highly…"

kevin monaghan

Description

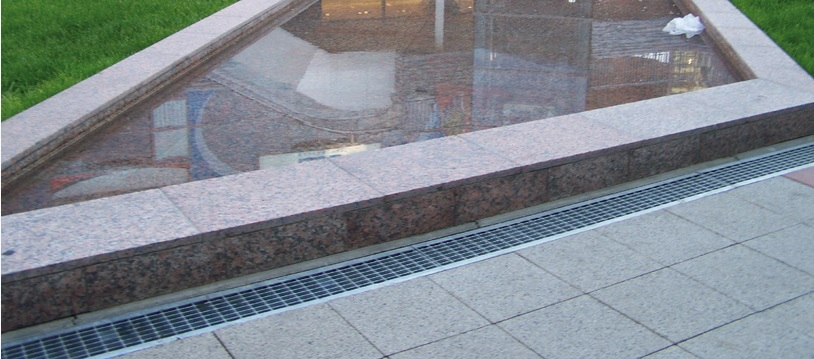

This B125 channel drain from Dek-Drain is manufactured from high density polyethylene for use in areas where traffic will not exceed the weight load class of 12.5 tonnes. This Dek-Drain channel drain can be used in areas such as pavements, private car parks and laybys with additional reinforcement thanks to plastic edge rails.

Dek-Drain offer a complete run of 1000mm channel drainage with this product as it comes with 2 lengths of 500mm B125 mesh ductile iron grating. The grating features small 21.5mm x 17.5mm holes for drainage and these holes won’t let in large bits of debris, leaves or litter. Any silt or other smaller pieces entering the channel drain can be filtered out with the Dek-Drain Mesh Ductile Silt Box.

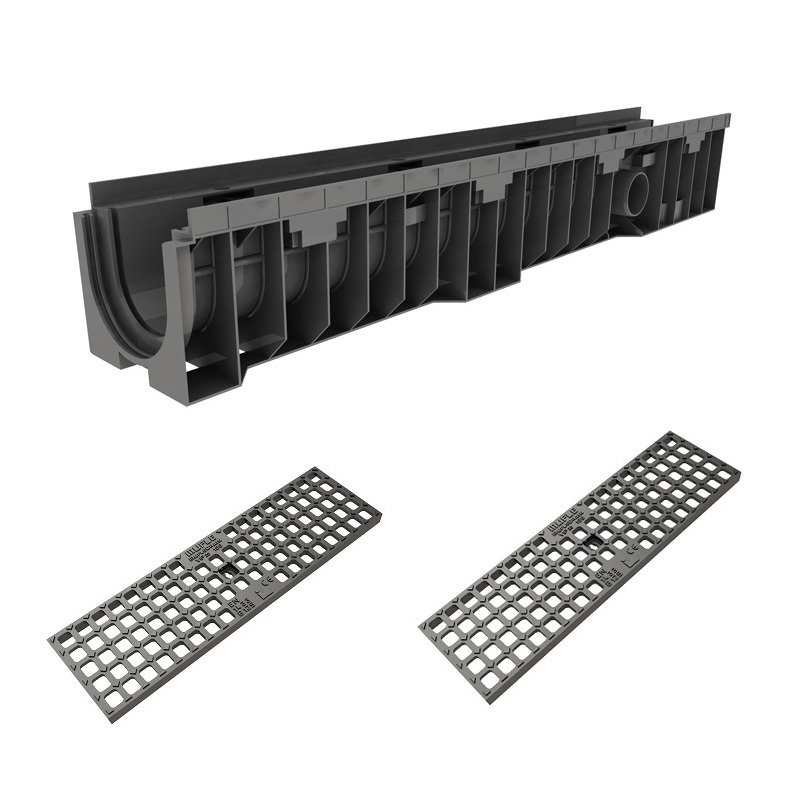

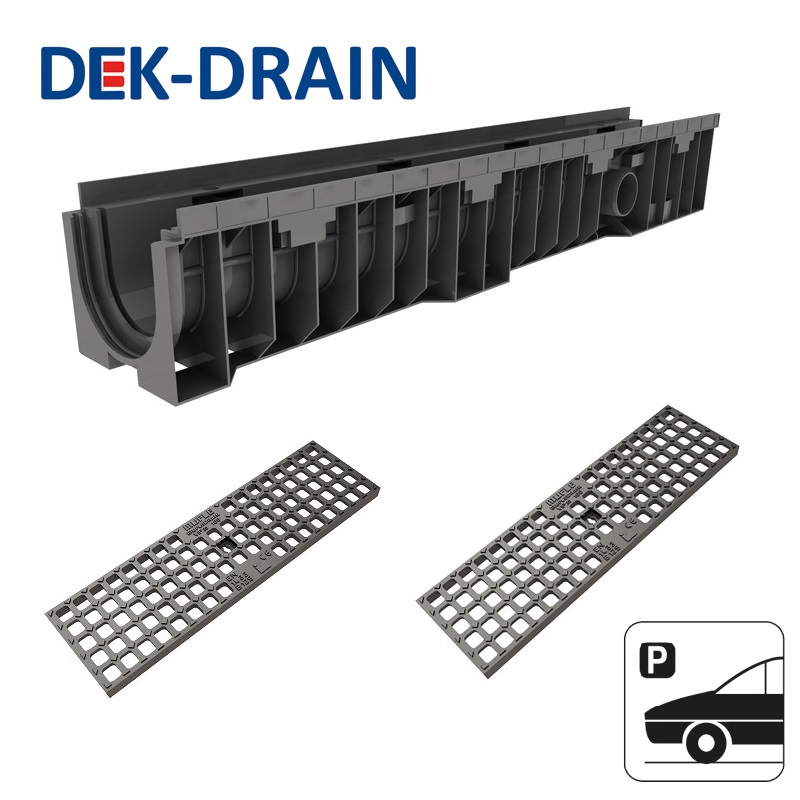

Dek-Drain VIP HD-PE B125 Channel Drain Kit Contents

1 x 1000mm B125 HD-PE channel base
2 x 498mm mesh ductile iron grates
1 x fixing kit

Dek-Drain VIP HD-PE Channel Drain Specifications

External Dimensions of Base: 1000mm x 158mm x 154mm
Internal Dimensions of Base: 1000mm x 100mm x 100mm
Dimensions of Grate: 498mm x 148mm x 20mm

Dimensions

Length 1m Depth 100mm Width 100mm

Details

Material Ductile Iron Weight Class B125 Range VIP
