Dek-Drain SMART HD-PE Channel & Mesh Ductile Grate B125 - 1000 x 158 x 155mm

Product Code:
Est. Delivery: 1-2 Working Days

Subject to stock availability, if products on a 24 hours service are ordered alongside products NOT on a 24 hours service, this may delay your whole order.

View Transport Policy

All delivery charges are included in the final shopping basket and are dependent on the products Scottish Highlands & the Islands where additional shipping charges will apply.

Please note that not all products will incur an additional delivery charge to the Scottish Highlands & the Islands – this is based on the costs from the manufacturer, distributor or courier providing shipping on our behalf. If your delivery address is in the Scottish Highlandsand Islands, a member of our helpline team will contact you prior to processing your order should an additional delivery charge apply.

While we make every effort to ensure orders are delivered by the date required, we cannot guarantee availability from the manufacturer or the manufacturer's delivery schedules.

Any variation to web delivery date given will be advised to you by email or telephone. If we are unable to make delivery because access is not possible, we reserve the right to make a failed delivery charge.

Product Description

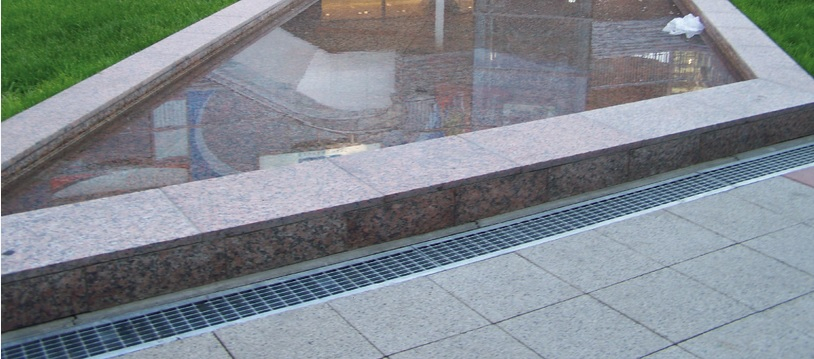

This B125 channel drain from Dek-Drain is manufactured from high density polyethylene for use in areas where traffic will not exceed the weight load class of 12.5 tonnes. This Dek-Drain channel drain can be used in areas such as pavements, private car parks and laybys. 2.4mm galvanised edge rails provide an extra reinforcement for added strength.

Dek-Drain offer a complete run of 1000mm channel drainage with this product as it comes with 2 lengths of 500mm B125 mesh ductile iron grating. The grating features small 21.5mm x 17.5mm holes for drainage and these holes won’t let in large bits of debris, leaves or litter. Any silt or other smaller pieces entering the channel drain can be filtered out with the Dek-Drain Mesh Ductile Silt Box.

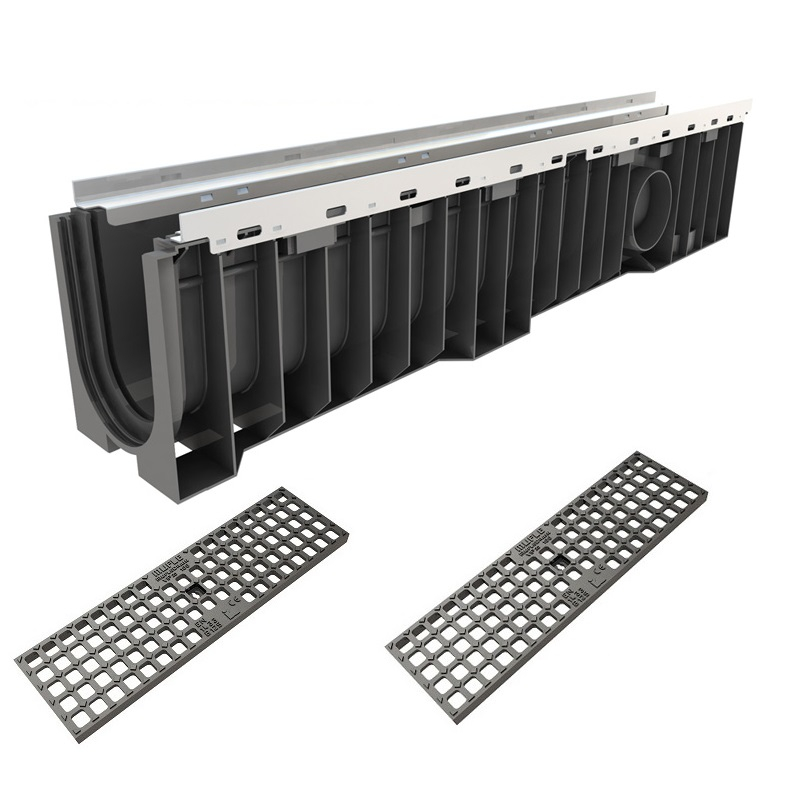

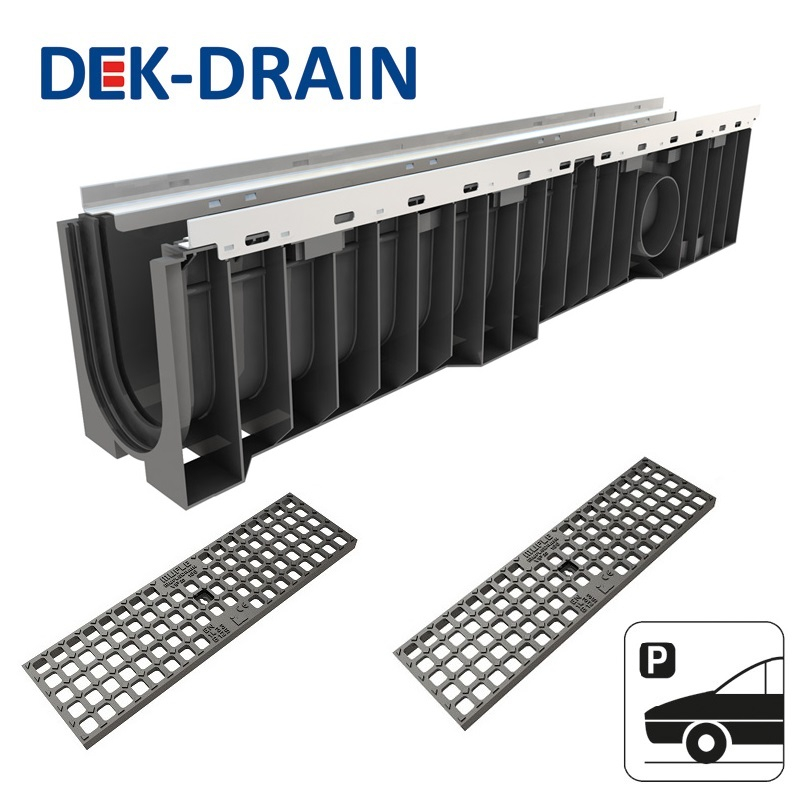

Dek-Drain SMART HD-PE B125 Channel Drain Kit Contents

1 x 1000mm B125 HD-PE channel base
2 x 498mm mesh ductile iron grates
1 x fixing kit

Dek-Drain SMART HD-PE Channel Drain Specifications

External Dimensions of Base: 1000mm x 158mm x 155mm
Internal Dimensions of Base: 1000mm x 100mm x 100mm
Dimensions of Grate: 498mm x 148mm x 20mm

Product Documents


Width 158mm Length 1000mm


Depth 121mm Material Ductile Iron Weight Class B125
