Commercial Linear Channel Drain for Concrete Floor 1000mm - End Outlet

Code:
COMCHANNEL1000
Brand:

Commercial Linear Channel Drain for Concrete Floor 1000mm - End Outlet Description     Floor: Concrete/tiled/resin     Membrane type: No membrane     Outlet placement: End     Outlet direction: Vertical &nbs...Read More

£472.00 Incl. VAT
Oops! Please select from the options
Est. Delivery: 7-10 Working Days
Shipping costs displayed in basket.
We can let you know when this product is back in stock.

This product is proving to be very popular and has unfortunately sold out.

Enter your email below and we'll notify you as soon as this product is back in stock:

For delivery Wednesday, Apr 24th - order in:
days hrs mins secs
Subject to stock availability, if products on a 24 hours service are ordered alongside products NOT on a 24 hours service, this may delay your whole order.
View Transport Policy

All delivery charges are included in the final shopping basket and are dependent on the products Scottish Highlands & the Islands where additional shipping charges will apply.

Please note that not all products will incur an additional delivery charge to the Scottish Highlands & the Islands – this is based on the costs from the manufacturer, distributor or courier providing shipping on our behalf. If your delivery address is in the Scottish Highlands and Islands, a member of our helpline team will contact you prior to processing your order should an additional delivery charge apply.

While we make every effort to ensure orders are delivered by the date required, we cannot guarantee availability from the manufacturer or the manufacturer's delivery schedules.

Any variation to web delivery date given will be advised to you by email or telephone. If we are unable to make delivery because access is not possible, we reserve the right to make a failed delivery charge.

Create a wishlist

"goods delivered ahead of time & I…"

Ms Jennifer Beavan

Description

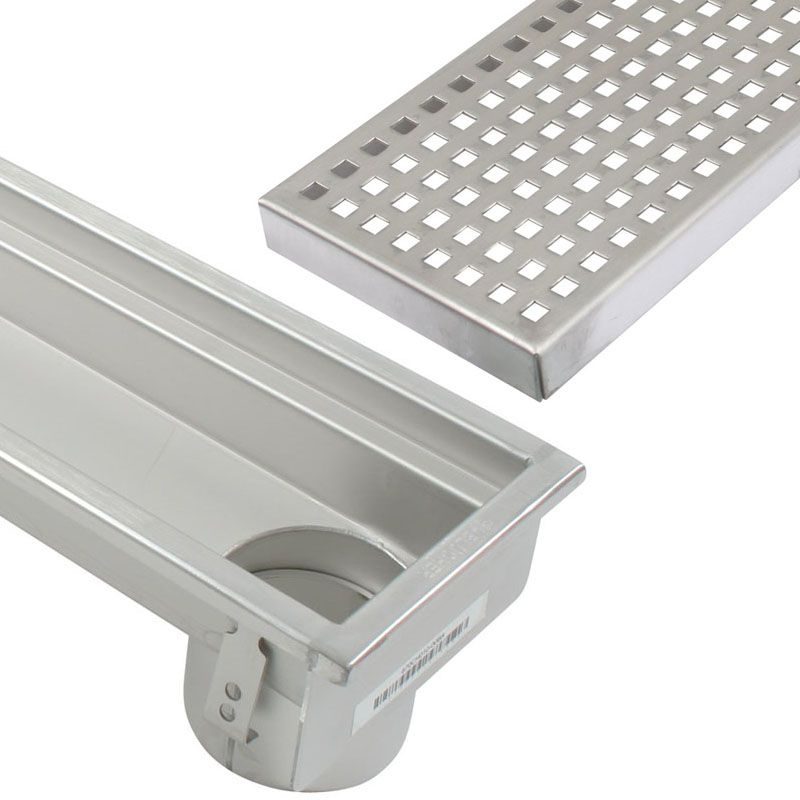

Commercial Linear Channel Drain for Concrete Floor 1000mm - End Outlet

Description

    Floor: Concrete/tiled/resin
    Membrane type: No membrane
    Outlet placement: End
    Outlet direction: Vertical
    Outlet box: No
    Size: 150x1000
    Outlet dia. (mm): 110
    Min. height (mm): 152
    Weight (kg): 6,23
    Material: AISI 304
    Material: EN 1.4301

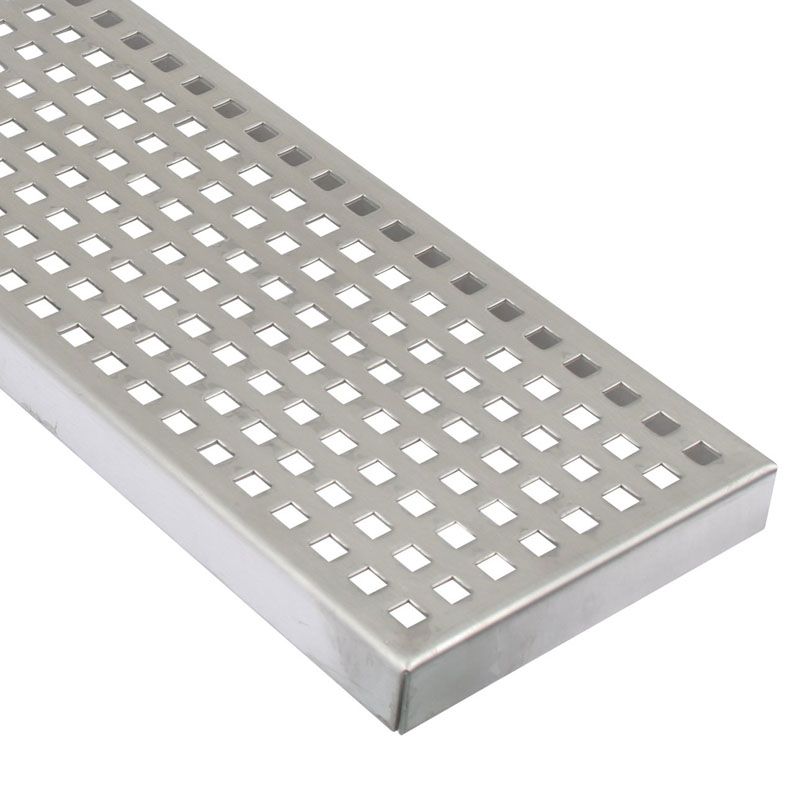

Grating
    Type:Gratings
    Shape:Rectangular
    Size:150x500
    Load class (EN1253):K 250 kg
    Non slip:R10
    Weight (kg):1,72
    Material:AISI 304
    Material:EN 1.4301

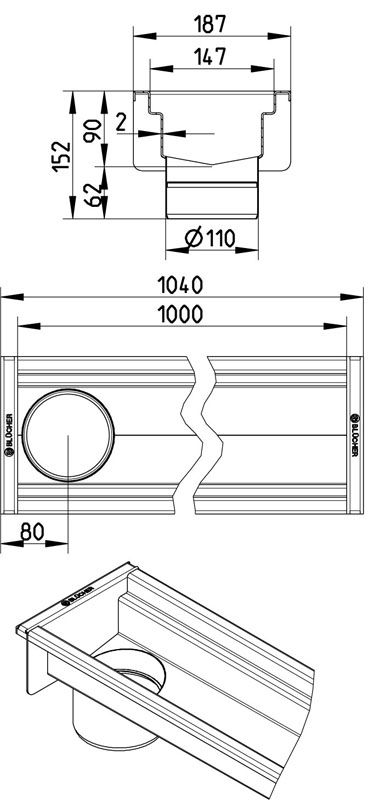

Dimensions

Length 1000mm

Details

Material Stainless Steel Floor Type Resin Flooring
Tiled Flooring
Concrete
Outlet Diameter 110mm

Questions & Answers

Question:

What is the drain capacity per litres/minute for the commercial linear channel drain for concrete floor 1000mm - end outlet?

Answer:

The commercial linear channel drain for concrete floor 1000mm - end outlet facilitates 1.7 litres per second, which would equate to 102 litres per minute.
