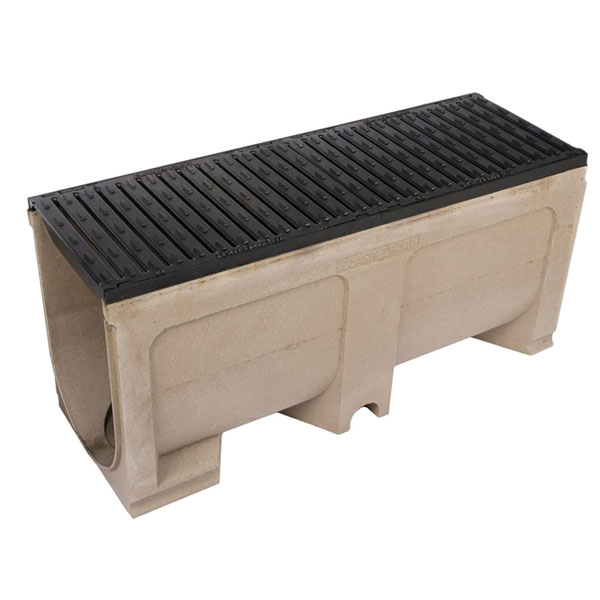

Clark Drain F900 Heelguard Channel Drain 1000mm x 342mm x 465mm

Code:
CD F30-L20C-69
Free UK Delivery

This item is out of stock and not available to purchase.

External Dimensions: 1000 (L) x 342 (W) x 465 (D) Clear Opening: 1000 (L) x 300 (W) x 440 (D)Channel & Grate: Polymer concrete with ductile iron edge rails. Knockout section for vertical outlet (optional). 2 x 500mm ductile iron slotted grates. Finish: Ductile iron grates ...Read More

Create a wishlist

"Excellent guidance and service"

Scott Eves

Description

External Dimensions: 1000 (L) x 342 (W) x 465 (D)
Clear Opening: 1000 (L) x 300 (W) x 440 (D)
Channel & Grate: Polymer concrete with ductile iron edge rails. Knockout section for vertical outlet (optional). 2 x 500mm ductile iron slotted grates.
Finish: Ductile iron grates and edge rails are coated with black bitumen.
Locking: Catchlock clips fitted.
Pre-Sloped Option: Not available. Constant depth only.

Applications

  • Airports
  • Loading Bays
  • Industrial Sites
  • Service Stations
  • Service Yards

Dimensions

Length 1000mm Depth 440mm Width 300mm

Details

Material Concrete Features Heelguard Grate Weight Class F900
