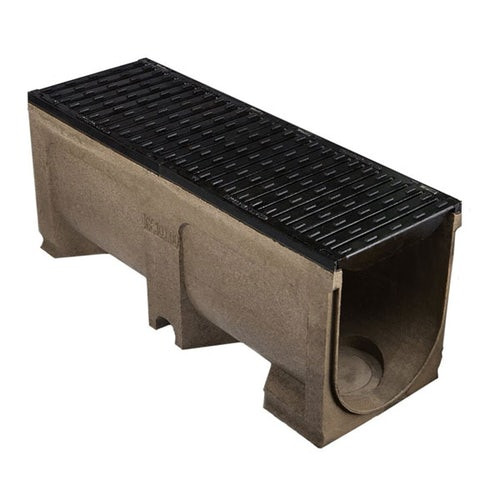

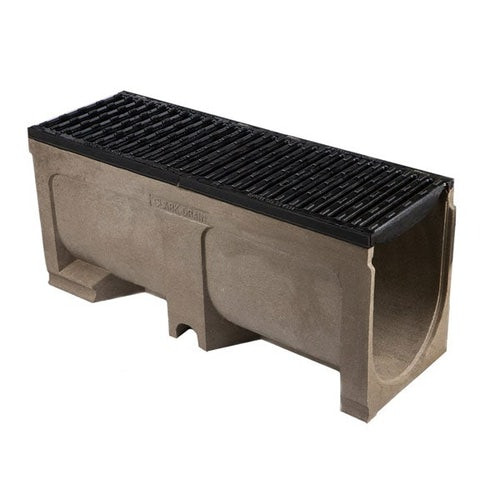

Clark Drain F900 Channel Drain with Ductile Iron Grating - 1000mm x 342mm x 415mm

Code:
CLARK-DRAIN-CD-F30-L10C

This item is out of stock and not available to purchase.

External Dimensions: 1000 (L) x 342 (W) x 415 (H)Clear Opening: 1000 (L) x 300 (W) x 390 (H)Channel & Grate: Polymer concrete with ductile iron edge rails. Knockout section for vertical outlet (optional). 2 x 500mm ductile iron slotted grates. Finish: Du...Read More

Create a wishlist

"New build Potto North Yorkshire"

Keith Davison

Description

External Dimensions: 1000 (L) x 342 (W) x 415 (H)
Clear Opening: 1000 (L) x 300 (W) x 390 (H)
Channel & Grate: Polymer concrete with ductile iron edge rails. Knockout section for vertical outlet (optional). 2 x 500mm ductile iron slotted grates.
Finish: Ductile iron grates and edge rails are coated with black bitumen.
Locking: Catchlock clips fitted.
Pre-Sloped Option: Not available. Constant depth only.

Applications

  • Airports
  • Loading Bays
  • Industrial Sites
  • Service Stations
  • Service Yards

Dimensions

Length 1m Depth 415mm Width 342mm

Details

Material Concrete
Ductile Iron
Weight Class F900 Grate Design Features Heelguard Grate
Slotted Grate
Grate Material Ductile Iron
