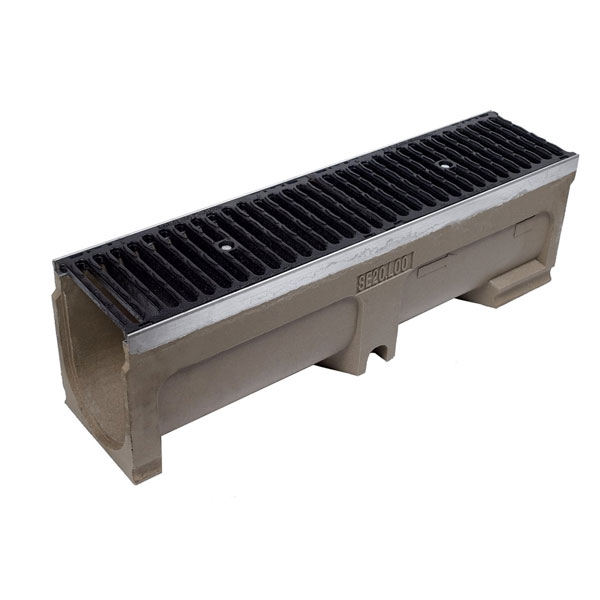

Clark Drain D400 Slotted Channel Drain 1000mm x 242mm x 295mm

Code:
CD D20-L10G-21
Free UK Delivery

This item is out of stock and not available to purchase.

External Dimensions: 1000 (L) x 242 (W) x 295 (D) Clear Opening: 1000 (L) x 200 (W) x 280 (D)Channel & Grate: Polymer concrete with galvanised steel edge rails. Knockout section for vertical outlet (optional). Locking bar slots. 2 x 500mm ductile iron slotted grates. Finis...Read More

Create a wishlist

"Great service and product"

paul franklin

Description

External Dimensions: 1000 (L) x 242 (W) x 295 (D)
Clear Opening: 1000 (L) x 200 (W) x 280 (D)
Channel & Grate: Polymer concrete with galvanised steel edge rails. Knockout section for vertical outlet (optional). Locking bar slots. 2 x 500mm ductile iron slotted grates.
Finish: Ductile iron grates are coated with black bitumen.
Locking: 2 locking bars & bolts fitted.

Applications

  • Building Entrances
  • Service Stations
  • Car Parks
  • Pedestrian Precincts
  • Kerbside Drainage
  • Slow Moving Light Commercial Vehicles

Dimensions

Length 1m Depth 295mm Width 242mm

Details

Material Concrete Weight Class D400
